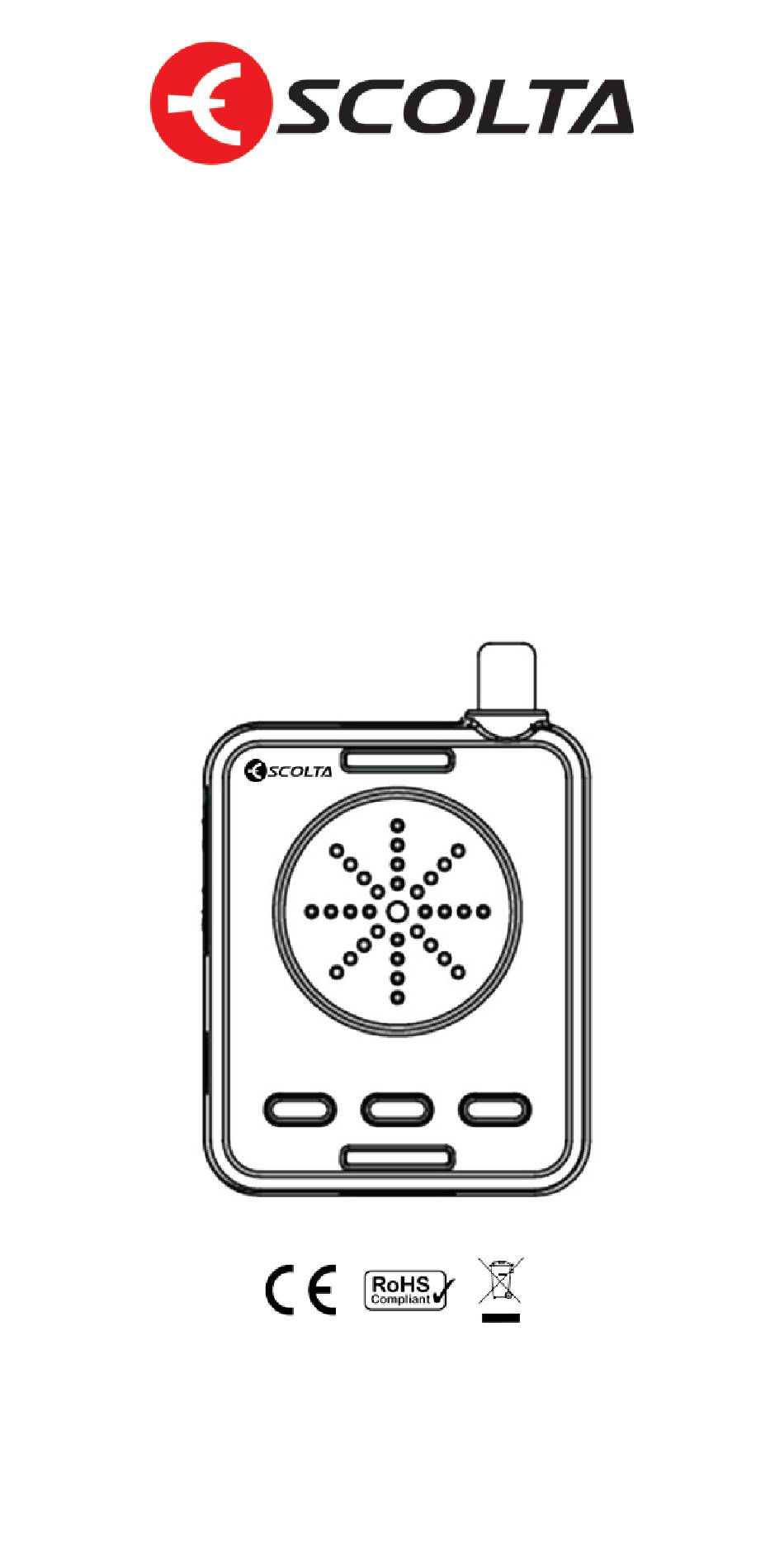

- Page 1 CHARLIE AG-446 PMR446 RECEIVER - FREE USE AUDIO-GUIDE SPEAKER USER MANUAL...
- Page 2 1. INTRODUCTION 1.1 The Audio-guide speaker CHARLIE AG-446 combines quality and versatility into a compact, light weight and portable wireless receiver with state-of-art design and easy-to-use features. 1.2 Features • 4 Channels selector • Volume level up & down control with 8 steps • LED indicator • PC programing for frequency and • CTCSS code • Drop-in charge contact and USB - C • Both side hole for Velcro band tight • Earphone output • Line-in input • Loud speaker output...
- Page 3 1.3 Standard Accessories • Mono Earphone • Poly pouch with belt clip • Velcro band • USB charging cable • Neck strap / Lanyard 1.4 Optional Accessories • PC programming cable • Line-in cable • 2 bay drop in charger • 20 bay drop in charger...
-
Page 4: Parts Name And Functions
2. PARTS NAME & FUNCTIONS Hole for velcro band Antenna Speaker Volume down Power ON / OFF Volume up LED indicator Ear connection Line IN Channel selector ... -
Page 5: Basic Operation
3. BASIC OPERATION Power On/Off To turn the device power on, press the POWER button ( ) longer than 2 seconds. Green LED is on with beep. Green LED is blinking every 5 seconds as long as the device is under power on. Volume level control Adjust volume level by using 56 buttons. It has 8 steps. Channel selection Choose the channel by select the two digit of DIP switch. It has total 4 chan- nels selection. Channel 1 Channel 2 Channel 3 Channel 4... -
Page 6: Led Indication
Charging the battery Plug the USB charging cable between USB port and type C USB socket and charge the battery or put the device into the drop in charge station and charge. Red LED is blinking while the battery is charging. Green LED is on when the battery is fully charged. It will take 3 ~ 4 hours for full change. LED indication Power on; Green LED on for 2 seconds RX stand by; Green LED blinks per 5 seconds RX receiving; Green LED on Battery low; Red LED blinks Battery charging; Red LED on Full charge; Green LED on... - Page 7 4. FREQUENCY & CTCSS PROGRAMMING • Install the PC program in your PC and open it • Connect the PC program cable bet- ween the PC and the device • Over write the frequency and the CTCSS code per CH in the table of the PC program you desire. • The frequency must be selected in the operating PMR-446 channels. • The CTCSS code should be belong to the table at appendix.
- Page 8 5. How to install the device For the purpose of Helmet speaker Insert the Velcro band as below and tight it inner side of Helmet. Note; Its speaker side would be positioned toward the Helmet fiber.
- Page 9 Put the unit in a poly bag pouch and clip it inner side of Helmet. Note; Its speaker side would be positioned toward the Helmet fiber.
- Page 10 For the purpose of portable speaker • Insert the Neck strap/ Lanyard in the hole of device and carry it on the neck • Plug the earphone into the earphone socket...
-
Page 12: Technical Specication
6. Technical specication 446.00625 MHz - Frequency 446.04375 MHz Channels 4 pre-programmed Pre-programmed CTCSS per channel 55 dB typ 55 dB typ Audio output 500 mW @ 5% THD Battery Li-Ion 3.7 V/700 mA Batt. operating time Up to 15 h Stand-by time Up to 48 h. Operating -10°C ~ 50°C temperature Operating mode Only reception Antenna type Integral Modulation type FM (11K0F3E) - Page 13 Product description: Equipment: PMR-446 RECEIVER Brand: ESCOLTA Model: CHARLIE AG-446 Manufacturer: Falcon Radio & Accessories Supply, S.L. Made in: Korea The product complies with the provisions of the European Directives: - Directive 2012/19/EU of the European Parliament and of the council of 4 July 2012 on waste electrical and electronic equipment (WEEE).
- Page 14 Waste disposal. Directive 2012/19 / EU Information on waste disposal of electrical and electronic equipment (WEEE). This symbol on the product means that the electrical and electronic products used must not be mixed with household waste. For proper treatment, recovery and recycling, take this product to designated collection points where it will be accepted for free. The correct disposal of this product will help save va- luable resources and prevent possible negative effects on human health and the environment, which could otherwise arise from the improper handling of waste.. Contact your local authority for more information about the nearest collection point. Sanctions may be applied for the incorrect disposal of this waste, in accordance with its national legislation.
- Page 15 Appendix Table CTCSS codes Cód. Frecuencia Cód. Frecuencia 67Hz 173.8Hz 71.9Hz 179.9Hz 74.4Hz 186.2Hz 77.0Hz 192.8Hz 79.7Hz 203.5Hz 82.5Hz 210.7Hz 85.4Hz 218.1Hz 88.5Hz 225.7Hz 91.5Hz 233.6Hz 94.8Hz 241.8Hz 97.4Hz 250.3Hz 100.0Hz 69.3Hz 103.5Hz 159.8Hz 107.2Hz 183.5Hz 110.9Hz 189.9Hz 114.8Hz 196.6Hz 118.8Hz 199.5Hz 123.0Hz...
- Page 16 Table of channels and programmable frequencies Channel Frequency (MHz) 446.00625 446.01875 446.03125 446.04375 446.05625 446.06875 446.08125 446.09375...
