Summary of Contents for Thinknx Audiofy P1

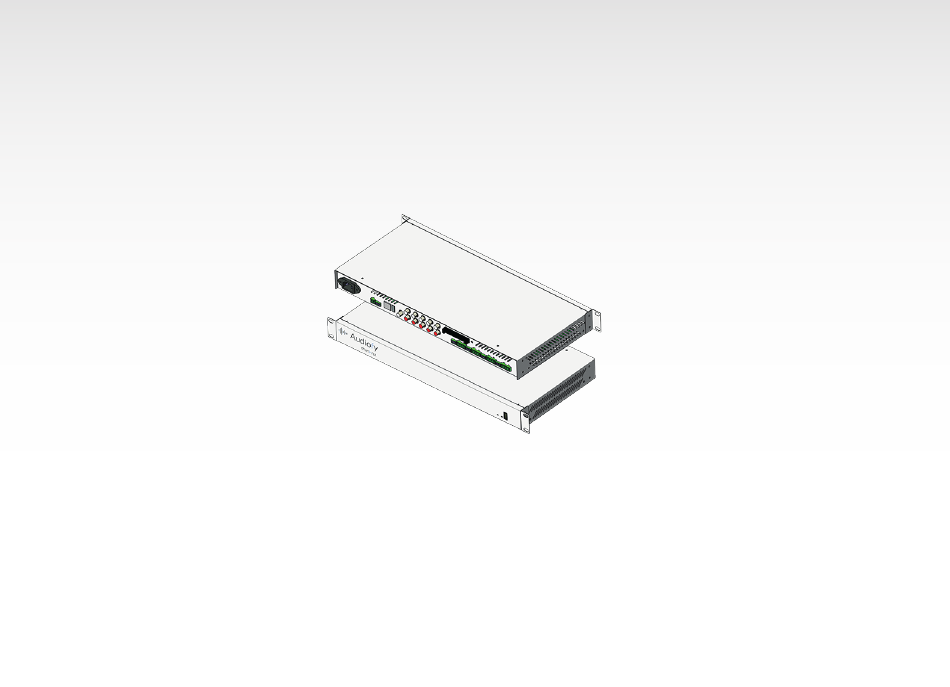

- Page 1 Audiofy P1 Audiofy P4 Installation Sheet Scheda di Installazione Inbetriebnahmeanleitung v. 1.0 - 2017/02...
- Page 2 Back Panel 1 1 1 6 1 1 1 3 1 1 1 7 1 1 1 8 1 1 9 1 10 Pre-ampli ed Output Power supply Channel right output KNX connection (respect polarity) Output shield RS485 port Channel left output Ethernet port USB port Ampli ed Output...
- Page 3 THINKNX AUDIOFY - INSTALLATION GUIDE Audiofy P1/P4 Rackmount (h=1U) Measurements Audiofy P1/P4 Brackets Mount Quick Setup Guide 4. Configure Audiofy 2. Plug in cables 3. Find device IP address 1. Download and install software Download from Open a web browser www.thinknx.com...
-
Page 4: Package Checklist
Package measurements 510 x 300 x 65 mm Safety instructions ThinKnx Audiofy must be installed in compliance with First configuration electrical installation rules of your country. The device must be installed in a dust free place, not subject to water infiltration and must not be placed near a source of heat or in direct contact The first configuration of the device is via web console. - Page 5 Download and open After detecting the Upon sucessfull the Audiofy app. In the device,login to it using detection and “Device finder” section, the following connection, you will tap on the refresh icon credientials: be able to see device to detect the device. Username: service info in the settings page.
