Summary of Contents for RJL systems QUANTUM V SEGMENTAL BIA

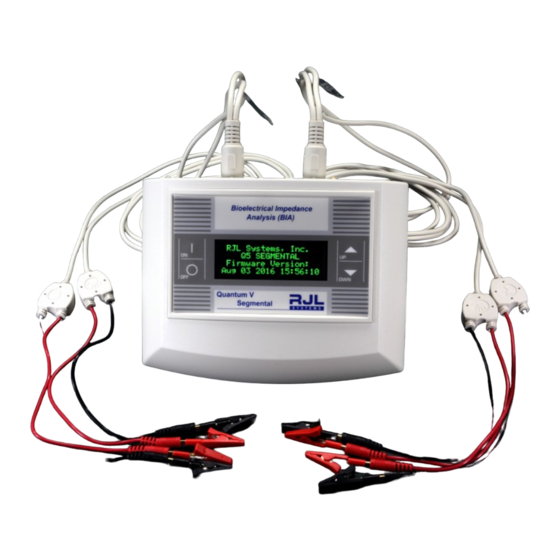

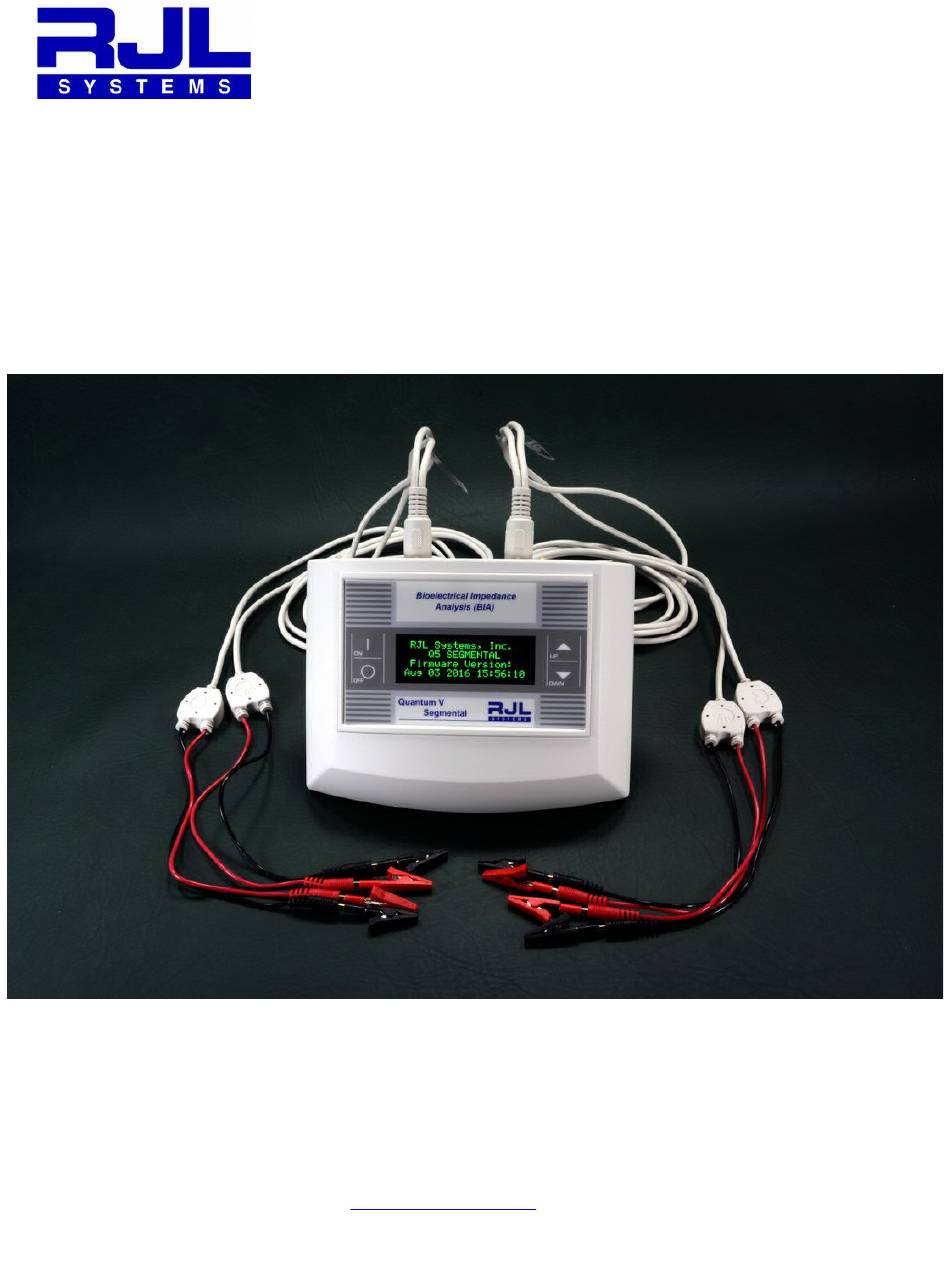

- Page 1 RJL Systems introduces Segmental BIA QUANTUM V SEGMENTAL BIA Bioelectrical Impedance Analyzer USER’S MANUAL RJL Systems 33939 Harper Avenue Clinton Township MI 48035 USA 800-528-4513 fax 586-790-0205 www.rjlsystems.com - 1 -...
-
Page 2: Table Of Contents
Table of Contents About US - RJL Systems……………………………………….. System Kit Contents…………………………..…………….….. Overview of the Quantum V Segmental BIA…………..……… What is measured and saved for analysis ……………..……… Charts and graphs ………………………………………..…… Eight electrode placement ……………………………..….….. Pre-testing protocol for the subject/patient ……………………... -
Page 3: About Us - Rjl Systems
RJL’s Quantum Analyzers have FDA clearance as a Class II medical device for safe use on the human body to collect BIA data. RJL is registered with the FDA as a Medical Device Manufacturer (Registration No. 1831675). The Quantum V Segmental BIA System and accompanying software are marketed under the following FDA clearances: K830292C, K862383, and K070999. -
Page 4: System Kit Contents
Test resistor and capacitor network • Four (4) Zip Lock Packs of electrodes ( 800 total electrodes ) 100 tests • Quantum V Segmental BIA User’s Manual and video (thumb drive) • BC (Body Composition) Software and User's Manual (thumb drive) •... -
Page 5: Overview Of The Quantum V Segmental Bia
Health care professionals such as physicians who are interested in regional muscle wasting will find the Quantum V Segmental BIA a valuable tool. In addition, physical therapists, sport medicine trainers and nutritionists can monitor and track their patient’s progress and health improvements on specific regions of the body. -
Page 6: What Is Measured And Saved For Analysis
A unique and patented feature of the RJL Systems segmental BIA instrument is that the sum of the lean soft tissue (LST) or fat mass is equal to the whole body LST or fat assessment. This is similar to the sum of the DEXA measurements that approximates to body weight. -
Page 7: Charts And Graphs
Quantum V USB port. Since there are only two values that must be entered, this is a minor inconvenience. A license key to the BC Whole Body application is included with purchase of a Quantum V Segmental BIA. The software and manual are also included on a thumb drive with the instrument. -
Page 8: Eight Electrode Placement
Eight Electrode Placement A segmental BIA test is done with eight (8) electrodes attached to the right and left hand and foot, as shown below, when the subject is laying in a supine position. The source and detecting electodes must follow the description below for the right and left hand and foot. - Page 9 Subject connected with all eight leads lying in a supine position - 9 -...
- Page 10 The two lead sets are pushed into the connector on the rear of the Quantum V Connect the USB cable to the USB PORT on the back of the Quantum V to a laptop computer with the Segmental BIA application installed - 10 -...
-
Page 11: Pre-Testing Protocol For The Subject/Patient
Pre-testing protocol for the subject Explain testing procedures to the subject and address any questions or concerns prior to testing. • Name, gender, age, height, weight, and side of body being tested should be recorded. If exceptions to • Testing Protocol are evident (i.e. subject tested sitting up due to wheelchair use) record the exception in the database record in the comment field, and test that individual in consistent manner every time. -
Page 12: Performing The Segmental Bia Test
4. Detach the clips, and gently remove the electrodes - being careful to not injure the skin . 5. Use the Segmenal BIA software for analysis and printing reports. Please note: If test results seem unusual or inaccurate, refer to Troublshooting Guide or call RJL Systems Technical Support for assistance. -
Page 13: Understanding The Display Screens
Understanding the display screens About: When the Quantum V Segmental BIA is turned ON, this screen will ap- pear for a few seconds. The screen displays the name of the analyzer and the version of the firmware program running on it. If you ever have to call for support, you will be asked for this information. -
Page 14: Proper Care Of The Analyzer And Cables
Proper care of the analyzer and cables RJL analyzers are built to last. Many RJL instruments built over 20 years ago are still being used today. The instruments we design and build are subjected to our rigorous quality assurance testing procedures. Like all sensitive electronic instruments, proper care and handling will minimize the risk of damage. -
Page 15: Subject Cable Information
Test Resistors are supplied with every Analyzer - cables can be tested before BIA testing is done. • RJL Systems will supply additional Test Resistors at no charge other than a shipping fee. • Replacement cables can be purchased from RJL and shipped via “overnight” delivery if necessary. It is •... -
Page 16: Using The Test Resistor To Check The Analyzer And Cables
Contact RJL Systems to order a new set. If either test fails, or you have questions about the results, please call RJL Systems Technical Support. Note: Have your readings available or be prepared to run the test(s) again while an RJL technician is assisting you on the phone. -
Page 17: Preparation For Subject Testing
Preparation for subject testing (What to discuss with subject prior to testing) Subjects who do not adhere to the pre-testing protocols Failure to adhere to the pre-testing protocols described on page 11 could alter the way the body interacts with the electrical signal of the BIA. -
Page 18: Troubleshooting Guide
Troubleshooting Guide Possible causes of strange test results or erratic resistance/reactance display: Malfunctioning analyzer or broken/damaged subject cables (see “Using the Test Resistor to Test • Analyzer/Cables). Expired electrodes. RJL electrodes have an average shelf life of approximately 15 months. Check •... -
Page 19: Rjl Warranty Information
If RJL requests, the Customer will, at its own expense, deliver the equipment in appropriately protective packing to RJL Systems. RJL Systems will pay for the return shipping expense What is not covered: Accessories are not covered under this warranty. - Page 20 If repair is needed: RJL Systems requires that an RMA # be issued prior to shipping a unit to us for diagnostic evaluation. RJL Systems cannot assume any responsibility for instruments sent without prior authorization. Customer is responsible for all shipping costs – including insurance if desired - both to and from RJL Systems.
-
Page 21: Appendix
APPENDIX - 21 -...
