Summary of Contents for GC Tech GCAN-202
- Page 1 GCAN-202 Ethernet-CAN converter User Manual Document version：V3.51 （2017/06/19）...
-
Page 2: Table Of Contents
4.2 Basic information ..................... 7 4.3 Finish the configuration ................. 10 4.4 Save / load the configuration file ..............10 4.5 Upgrade GCAN-202(use this function under guidance) ....... 10 5. Simple test ........................ 11 6. Technical specifications ................... 12 Sales and service ......................13... -
Page 3: Introduction

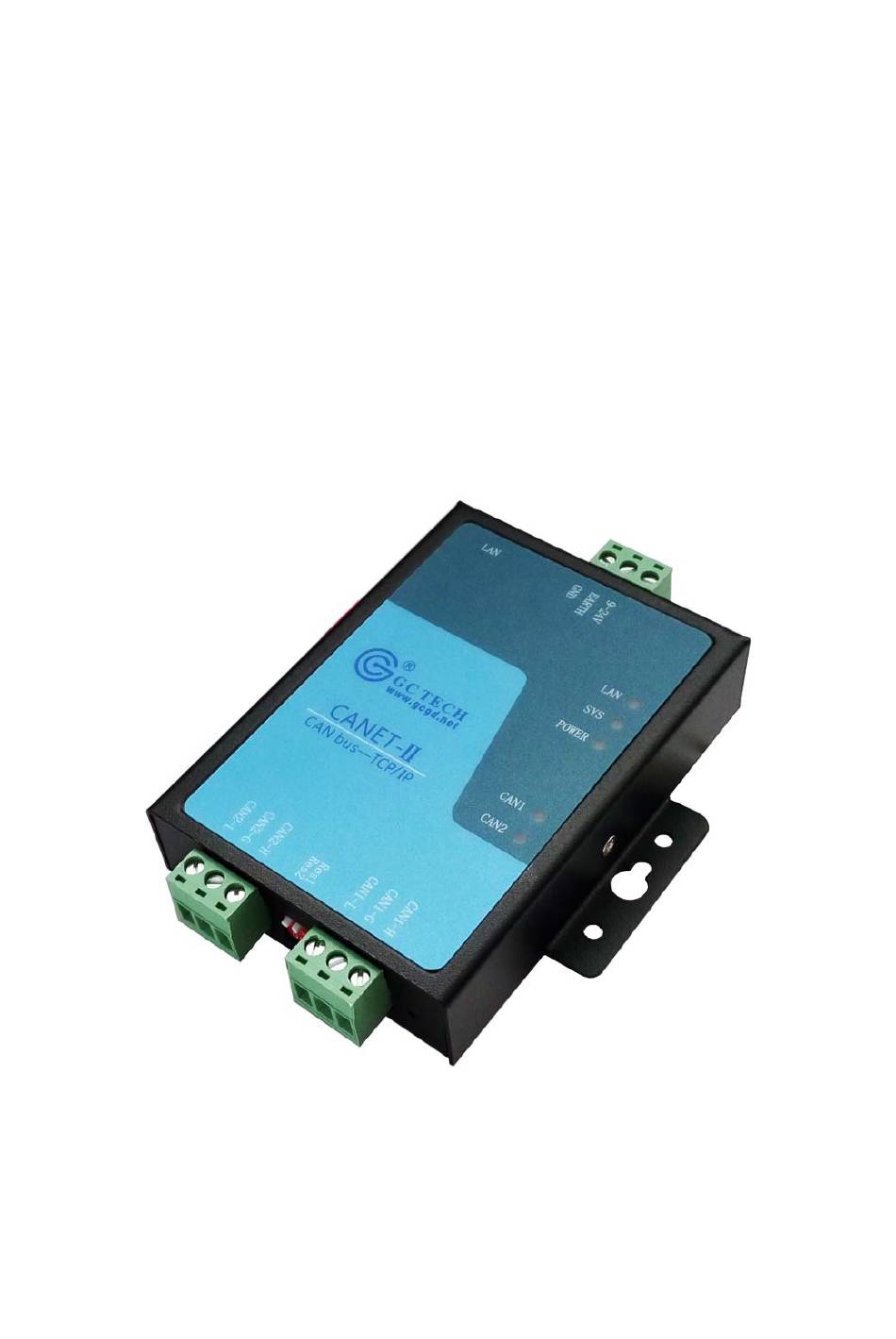

Industrial-grade Ethernet-CAN converter-GCAN-202 1. Introduction 1.1 Overview The GCAN-202 is a converter that integrates two CAN interfaces and one Ethernet interface. Using GCAN-202, users can connect CAN-Bus network and Ethernet, extends the application scope of CAN-Bus. 1.2 Properties at a glance ... -
Page 4: Installation
The shell size of the GCAN-202 is shown in Figure 2.1. Figure 2.1 Dimension drawings 2.2 Connect to PC Connect the converter to the computer with a network cable. Then GCAN-202 LAN interface can establish communication. 2.3 Connect to CAN-Bus In practical use, most of the time just connected the CAN_H to CAN_H and CAN_L connected to CAN_L, then communication can be realized. -
Page 5: Converter Used
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Ethernet-CAN converter-GCAN-202 3. converter used GCAN-202 converter uses a network cable to connect to PC, uses +9 ~ 30V DC power supply(recommended + 12V or + 24V power supply), uses the "CANet Config" software to configure. -
Page 6: Indicator Light
Please note: you should connect the two ends of the resistor to CAN_L and CAN_H respectively. 3.4 Indicator light GCAN-202 converter has one PWR indicator, one SYS indicator, one LAN indicator, two CAN indicator, to indicate the converter status. More functions are shown in table 3.2. -
Page 7: Configuration Instructions
Industrial-grade Ethernet-CAN converter-GCAN-202 4. Configuration instructions 4.1 Connect the software Software needs to fill in IP address when connecting to GCAN-202. Click "Connect", and then it will appear the following software interface. "Connect" - connect the converter(Do not need to click again) "Upload"... - Page 8 "CAN1 / CAN2 Info" - CAN bus parameter setting 4.2.1 Ethernet parameter settings Click "IP Address Info" to enter the Ethernet parameter setting interface "IP Address Info" - set the GCAN-202 IP address "GateWay" - set the GCAN-202 gateway Product data sheet...
- Page 9 Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Ethernet-CAN converter-GCAN-202 "Subnet Mask" - set the GCAN-202 subnet mask 4.2.2 CAN-Bus parameter setting Click "CAN1 / CAN2 Info" to enter the CAN-Bus parameter setting interface. "TCP Port" - set the CAN-Bus communication port "CAN Baud"...
-
Page 10: Finish The Configuration
4.3 Finish the configuration When the configuration is complete, click "DownLoad" to download the configuration information into the "Flash" of GCAN-202 . Please note: power-on again after the completion of the download, and then the new configuration will take effect. -
Page 11: Simple Test
GCAN-202 simple test software is use for testing GCAN-202 in the "TCP Server" mode. You can enter the IP address of the GCAN-202 at "IP", enter the port number of the CAN channel in "Port", and click "Connect" to connect the converter. -
Page 12: Technical Specifications
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Ethernet-CAN converter-GCAN-202 6. Technical specifications Connection Ethernet interface, RJ45 PC interface CAN interface Terminal blocks Interface characteristics 10 / 100M adaptive Ethernet interface CAN interface ISO 11898 standard, CAN2.0A/B CAN baud rate 5Kbit/s~1Mbit/s Electrical isolation 1500V，DC-DC... -
Page 13: Sales And Service
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Ethernet-CAN converter-GCAN-202 Sales and service Shenyang Guangcheng Technology Co., Ltd. Address: Industrial Design Center, No. 42 Chongshan Middle Road, Huanggu District, Shenyang City, Liaoning Province. QQ: 2881884588 E-mail: 2881884588@qq.com Tel: +86-024-31230060 Website: www.gcgd.net Sales and service Tel: +86-18309815706...
