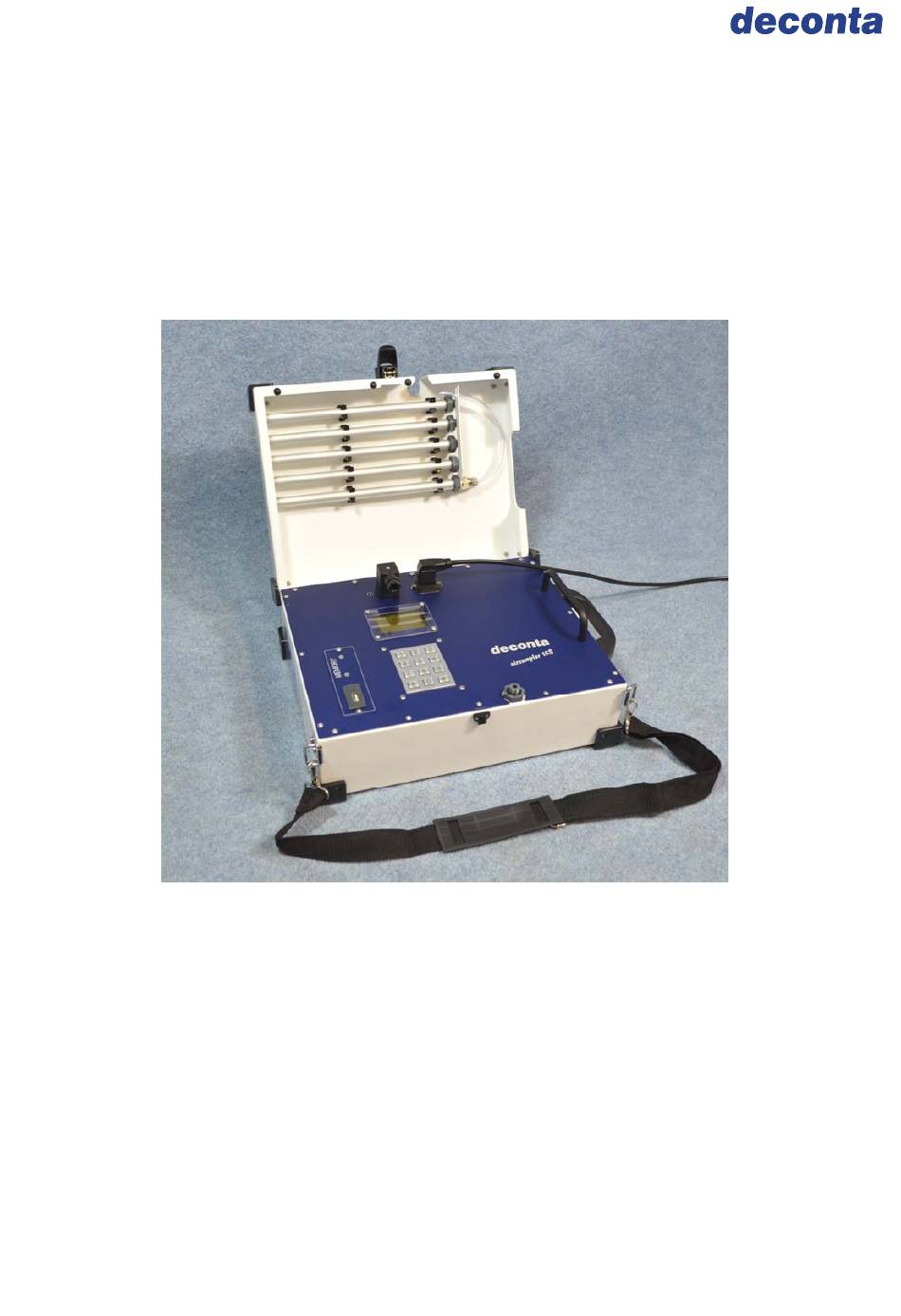

- Page 1 Instruction manual Air sampling device airsampler 15 S / 30 S Manufacturer: deconta GmbH Im Geer 20, 46419 Isselburg Description/Type-No.: airsampler 15 S Type 485 airsampler 30 S Type 486 Serial-No.: ....
-
Page 2: Table Of Contents
Basic safety advice Transport Delivery Transport Scope of delivery Technical description Technical data Pump power airsampler 15 S Pump power airsampler 30 S Technical data Initial operation Display indications Setting / Operation Possible settings / Code chart Optional expansion module 10.1 Memory module... -
Page 3: Introduction
Mechanics with „kick“ Pleasing design The copyright of this instruction manual remains with deconta. This manual is intended for assembly, operation and maintenance personnel. It contains instructions and drafts of technical nature which may neither be distributed nor used in any unauthorised way for competitive purposes or passed on to others. -
Page 4: Basic Safety Advice
2.1 Intended use As an operator, you are obliged by deconta to follow the instruction manual and to use this engineered technology equipment only in accordance with the regulations and its suitability! In the event of non-observance, deconta assumes no liability. -
Page 5: Transport
3.1. Delivery Unless agreed otherwise, the lock system is packed completely and securely for transport by deconta. Transport damages have to be documented at once during the handing over of the carrier or another supplier. Please note the possible damages additionally on the way bill. -
Page 6: Technical Description
Instruction manual Air sampling device airsampler 15 / 30 S 5 Technical description The appliance for air sampling air sampler is used to aspirate a defined volume flow through an air sampling filter. The filters are analysed in a laboratory The permanent regulation of the volume flow, as well as calibrated sensors and a laminar element flow constitute the base for precise measurements. -
Page 7: Technical Data
Instruction manual Air sampling device airsampler 15 / 30 S 6 Technical data 6.1 Pump power airsampler 15 S 100 200 300 400 500 600 700 800 mbar 6.2 Pump power airsampler 30 S 100 200 300 400 500 600 700 800 mbar 6.3 Technical data:... -
Page 8: Initial Operation
Instruction manual Air sampling device airsampler 15 / 30 S 7 Initial operation Set up the device Put together the rods and insert them onto the airsampler port Connect the monitor Turn on the device Now it is ready for use. Monitor Measuring rods Page 8... -
Page 9: Display Indications
After switching-on the device, 3 pieces of information appear on the upper line of the display: Top row left => Device status Possible status indications (S followed by 3 numbers): First digit 1 airsampler 15 S First digit 2 airsampler 30 S Second digit 2 Memory module present (optional) -
Page 10: Setting / Operation
Instruction manual Air sampling device airsampler 15 / 30 S 9 Settings / Operation Adjustments are always carried out according to the same procedure via the keypad: Push the key # => C will appear on the display Enter the code for the relevant adjustment (see code chart below) ... -
Page 11: Possible Settings / Code Chart
0 = inactive Switch the device active / inactive 1 = active with timing 2 = active without timing 2 – 15 l/min (airsampler 15 S) Volume flow 4 – 30 l/min (airsampler 30 S) Measuring time 5 to 5760 minutes... -
Page 12: Optional Expansion Module
Instruction manual Air sampling device airsampler 15 / 30 S 10 Optional expansion modules 10.1 Measuring data - memory module (From device software version 1.3) The storage of measuring data (up to 90 000 records) with adjustable storage intervals. Export as txt file for further processing via USB memory stick. The USB-Stick must be formatted as FAT or FAT32. - Page 13 Instruction manual Air sampling device airsampler 15 / 30 S The file containing the stored data can be edited freely using a text editor. Example: Project: Munich Site management: Mister Smith Gauge: airsampler 30 S type: 486 series: 87 Measurement period: 29.04.2010 08:04 to 29.04.2010 16:04 Volume flow: 8 l/min...
-
