www.healthsense.in

USER MANUAL

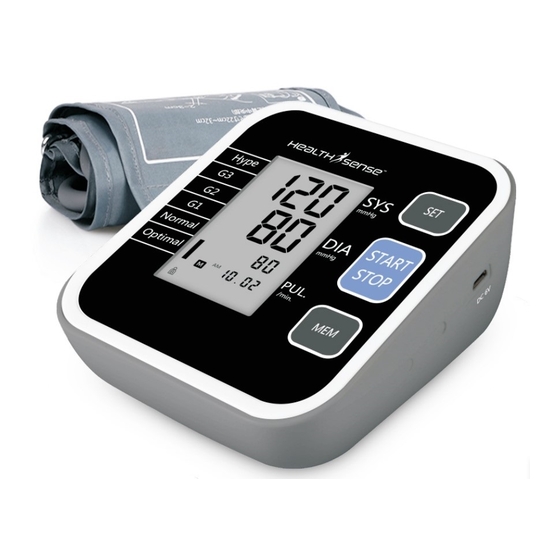

Heart-Mate Digital Blood Pressure Monitor

Model : BP 120

Thank you very much for selecting

HealthSense Heart -Mate Digital Blood

Pressure Monitor BP 120 Classic.

Please do read the user manual carefully and thoroughly so as to ensure the

safe usage of this product, and keep the manual well for further reference in

case you have problems.

Classic

We Care

Health

Table of Contents

Need help?

Do you have a question about the Classic BP 120 and is the answer not in the manual?

Questions and answers

Summary of Contents for health sense Classic BP 120

Page 1 USER MANUAL Heart-Mate Digital Blood Pressure Monitor Model : BP 120 Classic Classic www.healthsense.in Thank you very much for selecting HealthSense Heart -Mate Digital Blood Pressure Monitor BP 120 Classic. Please do read the user manual carefully and thoroughly so as to ensure the safe usage of this product, and keep the manual well for further reference in case you have problems.
Page 2: Table Of Contents
CATALOGUE CATALOGUE Table of Contents INTRODUCTION General Description ......................2 Indications for Use ......................2 Safety Information ......................3-4 LCD Display Signal ......................5 Monitor Components ......................6 BEFORE YOU START The Choice of Power Supply .....................7 Installing and Replacing the Batteries ................7 Measurement Principle ......................8 Setting User, Date, Time &...
Page 3: Introduction
INTRODUCTION INTRODUCTION Safety Information General Description The signs below might be in the user manual, labeling or other component. They are the requirement of standard and using. Thank you for selecting HEALTHSENSE arm type blood pressure Monitor (BP-120 Classic). The monitor features blood pressure measurement, alarm Symbol for “THE OPERATION Symbol for “TYPE BF APPLIED pulse rate measurement, talking function and the result storage.
Page 4: Lcd Display Signal
INTRODUCTION INTRODUCTION LCD display signal CAUTION This device is intended only for adult use in homes. This device is intended for non-invasive measuring and monitoring of arterial blood pressure. It is not intended for use on extremities other than arm or for functions other than obtaining a blood pressure measurement.
Page 5: Monitor Components
INTRODUCTION BEFORE YOU START The Choice of Power Supply Monitor Components 1. Battery powered mode: 6VDC 4×AAA batteries CUFF 2. AC adaptor powered mode: 1A (Micro USB plug) AIR HOSE (Please only use the recommended AC START STOP adaptor model). Please unplug the adaptor to depart from AC adaptor (excluded) the using utility power.
Page 6: Measurement Principle
BEFORE YOU START BEFORE YOU START Measurement Principle 3.When you set the right year, press “ SET ” button to set down and turn to next step. Now you can set the [DATE] M/D. This product uses the Oscillometric Measuring method to detect blood pressure. Before every measurement, the unit establishes a “zero pressure”...
Page 7: Select The User
BEFORE YOU START BEFORE YOU START . Repeat steps 2 and 3 to set the [HOUR] and [MINUTE]. Shown below for Select the User 24H format 1. When the monitor is off, press “ SET ” button once to enter user setting mode.
Page 8: Measurement
MEASUREMENT MEASUREMENT Start the Measurement Tie the cuff 1. When the monitor is off, press the “ START/STOP ” button to turn on the monitor, 1.Tie the cuff on your upper arm, and it will finish the whole measurement. then position the tube off-center (Take user A for example.) toward the inner side of arm in LCD display...
Page 9: Data Management
DATA MANAGEMENT DATA MANAGEMENT 3. If you want to check another user records, press “ START/STOP ” button to turn Recall the Records off the monitor. Now follow steps 1, 2 & 3 as per page 11 to select the user ID between user A and user B.
Page 10: Delete The Records
DATA MANAGEMENT INFORMATION FOR USER Tips for Measurement Delete the Records If you did not get the correct measurement, you can delete all Measurements may be inaccurate if taken in the following results by following steps below. (Take User A for example.) circumstances.
Page 11: Maintenance
INFORMATION FOR USER ABOUT BLOOD PRESSURE What are systolic pressure and diastolic pressure? Maintenance When ventricles contract and pump blood out of the Systolic Diastolic In order to get the best performance, please follow the heart, the blood pressure reaches its maximum value blood entering blood discharging instructions below .
Page 12: Body Movement Indicator
ABOUT BLOOD PRESSURE ABOUT BLOOD PRESSURE Body movement Indicator Why do I get a different What you need to pay attention to when you measure blood pressure at home If you move during measurement, the movement error symbol ( ) will appear your blood pressure at home: on the display.
Page 13: Troubleshooting
TROUBLESHOOTING SPECIFICATIONS This section includes a list of error messages and frequently Battery powered mode: asked questions for problems you may encounter with your blood 6VDC 4×AAA batteries pressure monitor. If the products not operating as you think it Power supply AC adaptor powered mode: 6V should, check here before arranging for servicing.
Page 14: Authorized Components
COMPLIED EUROPEAN AUTHORIZED COMPONENTS STANDARDS LIST Complied European Standards List Authorized Components lease use the HEALTHSENSE 2 . Please use HEALTHSENSE BP ISO/EN 14971:2012 Medical devices — Application of authorized adapter or adapter series cuff (22-42 cm) Risk management risk management to medical devices with below power specification EN 980 Symbols for use in the labelling of medical (excluded).
Page 15: Emc Guidance
EMC GUIDANCE EMC Guidance 1) This equipment needs to be installed and put into service in accordance with the information provided in the user manual; 2) Wireless communications equipment such as wireless home network devices, mobile phones, cordless telephones and their base stations, walkie-talkies can affect this equipment and should be kept at least a distance d=3,3m away from the equipment.
