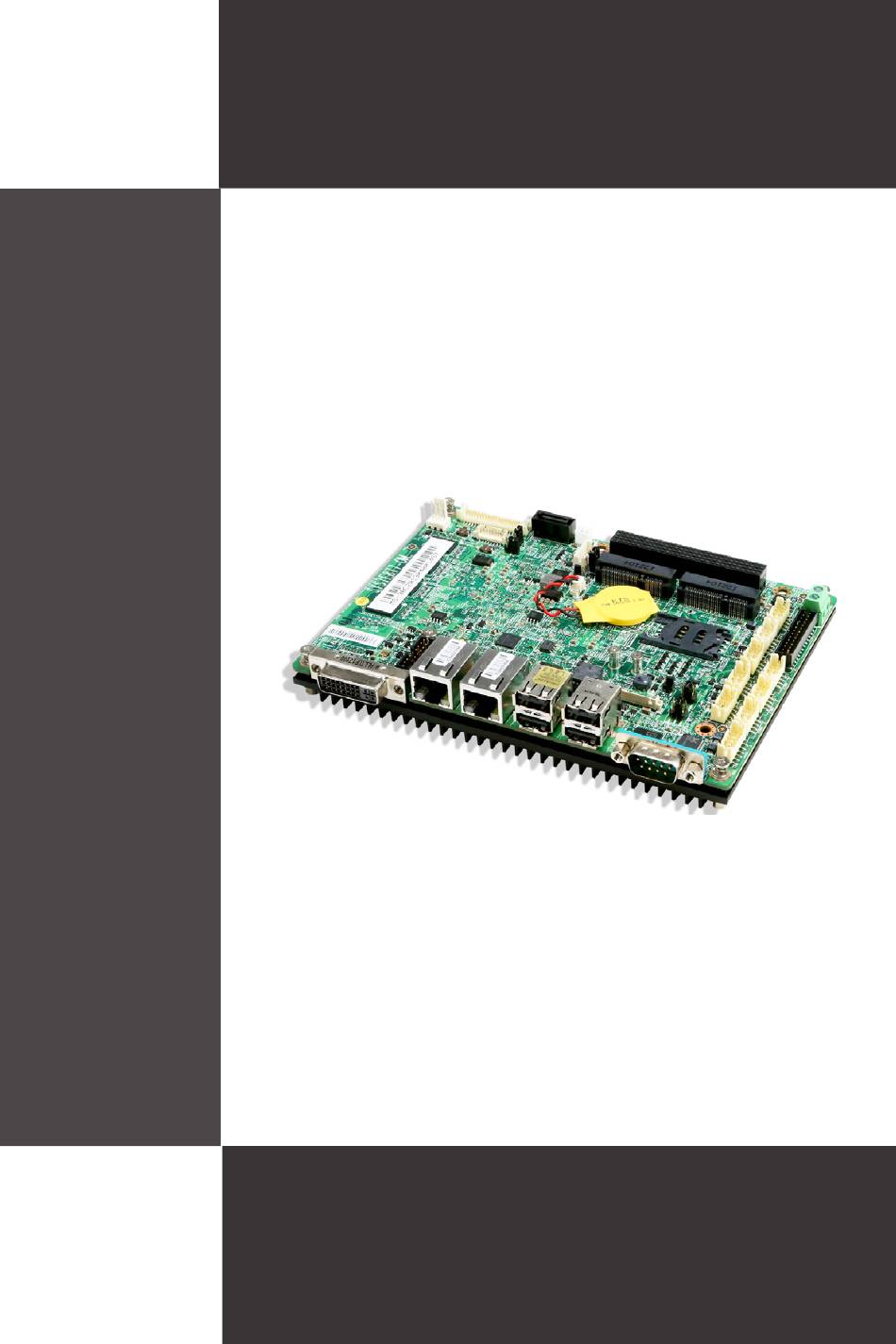

  • Page 1 SYS7F877-OM (v1.x) Industrial Computer Board...

  • Page 2: Trademarks

    ▍ Preface Copyright Notice The material in this document is our intellectual property. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.

  • Page 3: Safety Instructions

    SYS7F877-OM Safety Instructions ￭ Always read the safety instructions carefully. ￭ Keep this User’s Manual for future reference. ￭ Keep this equipment away from humidity. ￭ Lay this equipment on a reliable flat surface before setting it up. ￭ The openings on the enclosure are for air convection hence protects the equipment from overheating.

  • Page 4: Ce Conformity

    ▍ Preface CE Conformity Hereby, we declare that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive. FCC-A Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 5: Weee Statement

    SYS7F877-OM WEEE Statement ENGLISH Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of “electrical and electronic equipment” cannot be discarded as municipal waste anymore and manufactur- ers of covered electronic equipment will be obligated to take back such products at the end of their useful life.
  • Page 6 ▍ Preface meer beschouwd worden als vervuiling. Fabrikanten van dit soort producten worden verplicht om producten retour te nemen aan het eind van hun levenscyclus. SRPSKI Po Direktivi Evropske unije (“EU”) o odbačenoj ekektronskoj i električnoj opremi, Di- rektiva 2002/96/EC, koja stupa na snagu od 13. Avgusta 2005, proizvodi koji spadaju pod “elektronsku i električnu opremu”...

  • Page 7: Table Of Contents

    SYS7F877-OM Contents Copyright Notice ................. ii Trademarks ..................ii Revision History .................. ii Safety Instructions ................iii CE Conformity ..................iv FCC-A Radio Frequency Interference Statement ......iv WEEE Statement ................v 1. Overview..................... 1-1 Motherboard Specifications ............1-2 Motherboard Layout ................ 1-4 2.
  • Page 8 note...

  • Page 9: Overview

    Chapter 1 Overview Thank you for choosing the SYS7F877-OM, an excel- lent industrial computer board. Based on the innovative Intel NM10 chipset for op- ® timal system efficiency, the SYS7F877-OM accom- modates the Intel Cedarview-M/ Cedarview-D pro- ® cessor and supports 2GB of onboard DDR3 800/1066 memory.

  • Page 10: Motherboard Specifications

    ▍ Overview Motherboard Specifications ■ Intel Cedarview-M/ Cedarview-D processor ® Chipset ■ Intel NM10 chipset ® Memory ■ 2GB of onboard DDR3 800/1066 memory ■ LAN1: Realtek RTL8111E GbE LAN (Co-lay ® RTL8111GN) ■ LAN2: Intel I210AT GbE LAN ® ■...
  • Page 11 SYS7F877-OM ■ Dimension 16.4 cm x 11.5 cm ■ Environ- Operating Temperature: -10 C to 60 Humidity: 30% ~ 80% RH, Non-Condensing mental Office and similar emvironment, no corrosive ■ Storage Temperature: -20 C to 80 Humidity: 5% ~ 90% RH, Non-Condensing...

  • Page 12: Motherboard Layout

    ▍ Overview Motherboard Layout LVDS Connector System Fan Connector Inverter Connector Inverter Jumper VGA Connector Back Panel LVDS Jumper SATA Port HDD Power Connector Clear CMOS Jumper USB Connector PC/104 Jumper Mini-PCIe Slot Port 80 SIM Card Connector Holder AT/ ATX Jumper PC/104 Slot USB Connector COM Port...

  • Page 13: Hardware Setup

    Chapter 2 Hardware Setup This chapter provides you with the information on motherboard hardware configurations. Incorrect set- ting of jumpers and connectors may damage your motherboard. Please pay special attention not to con- nect these headers in wrong direction. DO NOT adjust any jumper while the motherboard is powered on.

  • Page 14: Quick Components Guide

    ▍ Hardware Setup Quick Components Guide JLVDS1, p.2-12 SYSFAN1, p.2-7 JINVDD1, p.2-9 JINV1, p.2-15 JVGA1, p.2-12 Back Panel, p.2-4 JVDD1, p.2-15 SATA1, p.2-7 JHDDPWR1, p.2-3 JBAT1, p.2-14 JUSB2, p.2-11 JPCIP1, p.2-15 MSATA1, MINI_PCIE2, p.2-17 JDP1, p.2-13 JSIM1, p.2-17 JAT1, p.2-14 PC104_1, p.2-17 JUSB1, p.2-11 JCOMP2,...

  • Page 15: Power Supply

    SYS7F877-OM Power Supply HDD Power Connector: JHDDPWR1 This connector is used to provide power for hard disk drives. Important Make sure that all power connectors are connected to the power supply to ensure stable operation of the motherboard.

  • Page 16: Back Panel I/O

    ▍ Hardware Setup Back Panel I/O Ports DVI-I Port Serial Port USB 2.0 USB 2.0 Ports Ports ▶ DVI-I Port The DVI-I (Digital Visual Interface-Integrated) connector allows you to con- nect an LCD monitor. It provides a high-speed digital interconnection be- tween the computer and its display device.
  • Page 17 SYS7F877-OM ▶ RS-232/422/485 Serial Port (Optional) The serial port is a 16550A high speed communications port that sends/ receives 16 bytes FIFOs. You can attach a serial mouse or other serial devices directly to the connector. RS-232 SIGNAL DESCRIPTION Data Carrier Detect...
  • Page 18 ▍ Hardware Setup ▶ LAN Port The standard RJ-45 LAN jack is for connection to the Local Area Network (LAN). You can connect a network cable to it. Activity Indicator Speed Indicator Left LED Right LED Active LED 100M/1000M Speed LED LED Color Yellow Green/Orange...

  • Page 19: Connector

    SYS7F877-OM Connector Serial ATA Connector: SATA1 This connector is a high-speed Serial ATA interface port. Each connector can connect to one Serial ATA device. Important Please do not fold the Serial ATA cable into a 90-degree angle. Otherwise, data loss may occur during transmission.
  • Page 20 ▍ Hardware Setup Front Panel Pinheader: JFP1 This connector is provided for electrical connection to the front panel switch- es and LEDs. Parallel Port Header: JLPT1 The mainboard provides a 26-pin header for connection to an optional parallel port bracket. The parallel port is a standard printer port that sup- ports Enhanced Parallel Port (EPP) and Extended Capabilities Parallel Port (ECP) mode.
  • Page 21 SYS7F877-OM Inverter Connector: JINVDD1 This connector is provided for the inverter module. Front Audio Pinheader: JAUD1 This connector allows you to connect the front panel audio and is compliant with Intel Front Panel I/O Connectivity Design Guide.
  • Page 22 ▍ Hardware Setup Serial Port Connector: JCOM2 ~ JCOM6 This connector is a 16550A high speed communications port that sends/ receives 16 bytes FIFOs. You can attach serial devices to it through the optional serial port bracket. RS-232 SIGNAL DESCRIPTION Data Carrier Detect Receive Data Transmit Data...
  • Page 23 SYS7F877-OM Front USB 2.0 Connector: JUSB1, JUSB2 The USB connector is ideal for connecting high-speed USB interface pe- ripherals such as USB HDD, digital cameras, MP3 players, printers, mo- dems and the like. Important Note that the pins of VCC and GND must be connected correctly to avoid possible damage.
  • Page 24 ▍ Hardware Setup VGA Connector: JVGA1 This connector is provided for monitors. LVDS Flat Panel Connector: JLVDS1 The LVDS (Low Voltage Differential Signal) connector provides a digital interface typically used with flat panels. After connecting an LVDS inter- faced flat panel to the JLVDS1, be sure to check the panel datasheet and set the JVDD1 jumper for proper power voltage.
  • Page 25 SYS7F877-OM Port 80 Pinheader: JDP1 This pinheader is intended for Transport Control Protocol (TCP) port 80. GPIO Connector: J1 This connector is provided for the General-Purpose Input/Output (GPIO) peripheral module. 2-13...

  • Page 26: Jumper

    ▍ Hardware Setup Jumper Important Avoid adjusting jumpers when the system is on; it will damage the moth- erboard. Clear CMOS Jumper: JBAT1 There is a CMOS RAM onboard that has a power supply from an external battery to keep the data of system configuration. With the CMOS RAM, the system can automatically boot OS every time it is turned on.
  • Page 27 SYS7F877-OM PC/104 Power Jumper: JPCIP1 Use this jumper to specify the operation voltage of the PC/104 slot. JPCIP1 LVDS Power Jumper: JVDD1 Use this jumper to specify the operation voltage of the LVDS interface flat panel. JVDD1 Inverter Power Jumper: JINV1 Use this jumper to specify the operation voltage of the inverter module.
  • Page 28 ▍ Hardware Setup Serial Port Power Jumper: JCOMP2, JCOMP3 These jumpers specify the operation voltage of the onboard serial ports. JCOMP2 (for COM2) JCOMP3 (for COM3) Ring +12V 2-16...

  • Page 29: Slot

    SYS7F877-OM Slot Mini-PCIe (Peripheral Component Interconnect Express) Slot The Mini-PCIe slot is provided for wireless LAN card, TV tuner card, Robson NAND Flash card and mSATA devices. Important When adding or removing expansion cards, make sure that you unplug the power supply first.
  • Page 30 note...

  • Page 31: Bios Setup

    Chapter 3 BIOS Setup This chapter provides information on the BIOS Setup program and allows you to configure the system for optimum use. You may need to run the Setup program when: ■ An error message appears on the screen during the system booting up, and requests you to run SETUP.

  • Page 32: Entering Setup

    ▍ BIOS Setup Entering Setup Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press <DEL> or <F2> key to enter Setup. Press DEL or F2 to enter SETUP If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button.
  • Page 33 SYS7F877-OM Control Keys ← → Select Screen ↑ ↓ Select Item Enter Select Change Option General Help Previous Values Optimized Defaults Save & Exit Exit Getting Help After entering the Setup menu, the first menu you will see is the Main Menu.

  • Page 34: The Menu Bar

    ▍ BIOS Setup The Menu Bar ▶ Main Use this menu for basic system configurations, such as time, date, etc. ▶ Advanced Use this menu to set up the items of special enhanced features. ▶ Boot Use this menu to specify the priority of boot devices. ▶...

  • Page 35: Main

    SYS7F877-OM Main ▶ System Date This setting allows you to set the system date. The date format is <Day>, <Month> <Date> <Year>. ▶ System Time This setting allows you to set the system time. The time format is <Hour> <Minute> <Second>.

  • Page 36: Advanced

    ▍ BIOS Setup Advanced ▶ Full Screen Logo Display This BIOS feature determines if the BIOS should hide the normal POST messages with the motherboard or system manufacturer’s full-screen logo. When it is enabled, the BIOS will display the full-screen logo during the boot-up sequence, hiding normal POST messages.
  • Page 37 SYS7F877-OM ▶ CPU Configuration ▶ EIST EIST (Enhanced Intel SpeedStep Technology) allows the system to dynamically adjust processor voltage and core frequency, which can result in decreased average power consumption and decreased average heat production. When disabled, the processor will return the actual maximum CPUID input value of the processor when queried.
  • Page 38 ▍ BIOS Setup ▶ Limit CPUID Maximum The Max CPUID Value Limit BIOS feature allows you to circumvent problems with older operating systems that do not support the Intel Pentium 4 processor with Hyper-Threading Technology. When enabled, the processor will limit the maximum CPUID input value to 03h when queried, even if the processor supports a higher CPUID input value.
  • Page 39 SYS7F877-OM ▶ Hardware Health Configuration These items display the current status of all monitored hardware devices/ components such as voltages, temperatures and all fans’ speeds. ▶ PCI/PCIE Device Configuration ▶ Legacy USB Support Set to [Enabled] if you need to use any USB 1.1/2.0 device in the operating...
  • Page 40 ▍ BIOS Setup system that does not support or have any USB 1.1/2.0 driver installed, such as DOS and SCO Unix. ▶ Audio Controller This setting enables/disables the onboard audio controller. ▶ Launch OnBoard LAN1/ LAN2 OpROM These settings enable/disable the initialization of the onboard/onchip LAN Boot ROM during bootup.
  • Page 41 SYS7F877-OM ▶ Console Redirection Settings ▶ Terminal Type To operate the system’s console redirection, you need a terminal supporting ANSI terminal protocol and a RS-232 null modem cable connected between the host system and terminal(s). This setting specifies the type of terminal device for console redirection.
  • Page 42 ▍ BIOS Setup ▶ Smart Fan Configuration ▶ Smart FAN1 Function These settings enable/disable the Smart Fan function. Smart Fan is an excellent feature which will adjust the CPU/system fan speed automati- cally depending on the current CPU/system temperature, avoiding the overheating to damage your system.

  • Page 43: Boot

    SYS7F877-OM Boot ▶ Boot Option Priorities This setting allows users to set the sequence of boot devices where BIOS attempts to load the disk operating system. ▶ Hard Drive BBS Priorities This setting allows users to set the priority of the specified devices. First press <Enter>...

  • Page 44: Security

    ▍ BIOS Setup Security ▶ Administrator Password Administrator Password controls access to the BIOS Setup utility. ▶ User Password User Password controls access to the system at boot and to the BIOS Setup utility. 3-14...

  • Page 45: Chipset

    SYS7F877-OM Chipset ▶ IGFX - Boot Type Use the field to select the type of device you want to use as the boot display of the system. ▶ LCD Panel Type This setting allows you to set the resolution of the boot display device.

  • Page 46: Power

    ▍ BIOS Setup Power ▶ Restore AC Power Loss This setting specifies whether your system will reboot after a power failure or interrupt occurs. Available settings are: [Power Off] Leaves the computer in the power off state. [Power On] Leaves the computer in the power on state. [Last State] Restores the system to the previous status before power failure or interrupt occurred.
  • Page 47 SYS7F877-OM ** Advanced Resume Events Control ** ▶ USB from S3/S4 The item allows the activity of the USB device to wake up the system from S3/S4 sleep state. ▶ PCIE/PCI PME This field specifies whether the system will be awakened from power saving modes when activity or input signal of onboard PCIE PME is detected.

  • Page 48: Save & Exit

    ▍ BIOS Setup Save & Exit ▶ Save Changes and Exit Save changes to CMOS and exit the Setup Utility. ▶ Discard Changes and Exit Abandon all changes and exit the Setup Utility. ▶ Restore Defaults Restore the factory defaults. ▶...
