Type
WK 23
WK 43
Operating Instructions and technical data: see page 3.
W e l d i n g & c u t t i n g b r o u g h t t o t h e p o i n t .
Line Voltage
Frequency
115 V
50 Hz
115 V
60 Hz
230 V
50 Hz
230 V
60 Hz
240/415 V
50 Hz
115 V
50 Hz
115 V
60 Hz
230 V
50 Hz
230 V
60 Hz
240/415 V
50 Hz

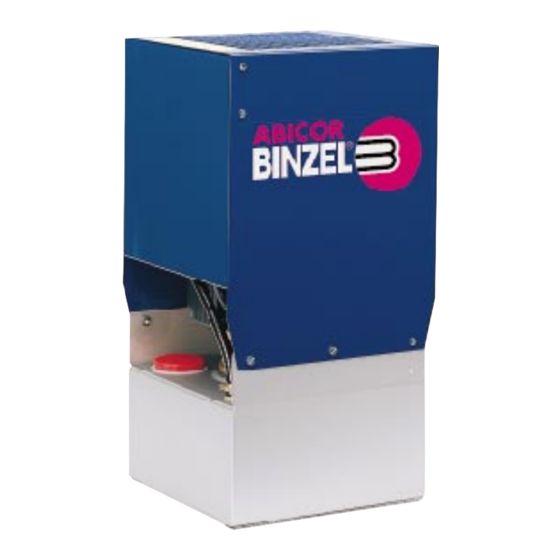

Coolant
Recirculator
WK 23 / WK 43
Power Rating
Current Consumption
0.35 kW
6.7 A
0.35 kW
6.5 A
0.35 kW
3.1 A
0.35 kW
3.1 A
0.50 kW
2.9 A/1.8 A
0.35 kW
6.7 A
0.35 kW
6.5 A
0.35 kW
3.1 A
0.35 kW
3.1 A
0.50 kW
2.9 A/1.8 A
Part no.
850.0214
850.0135
850.0137
850.0210
850.0144
850.0215
850.0156
850.0159
850.0211
850.0165
