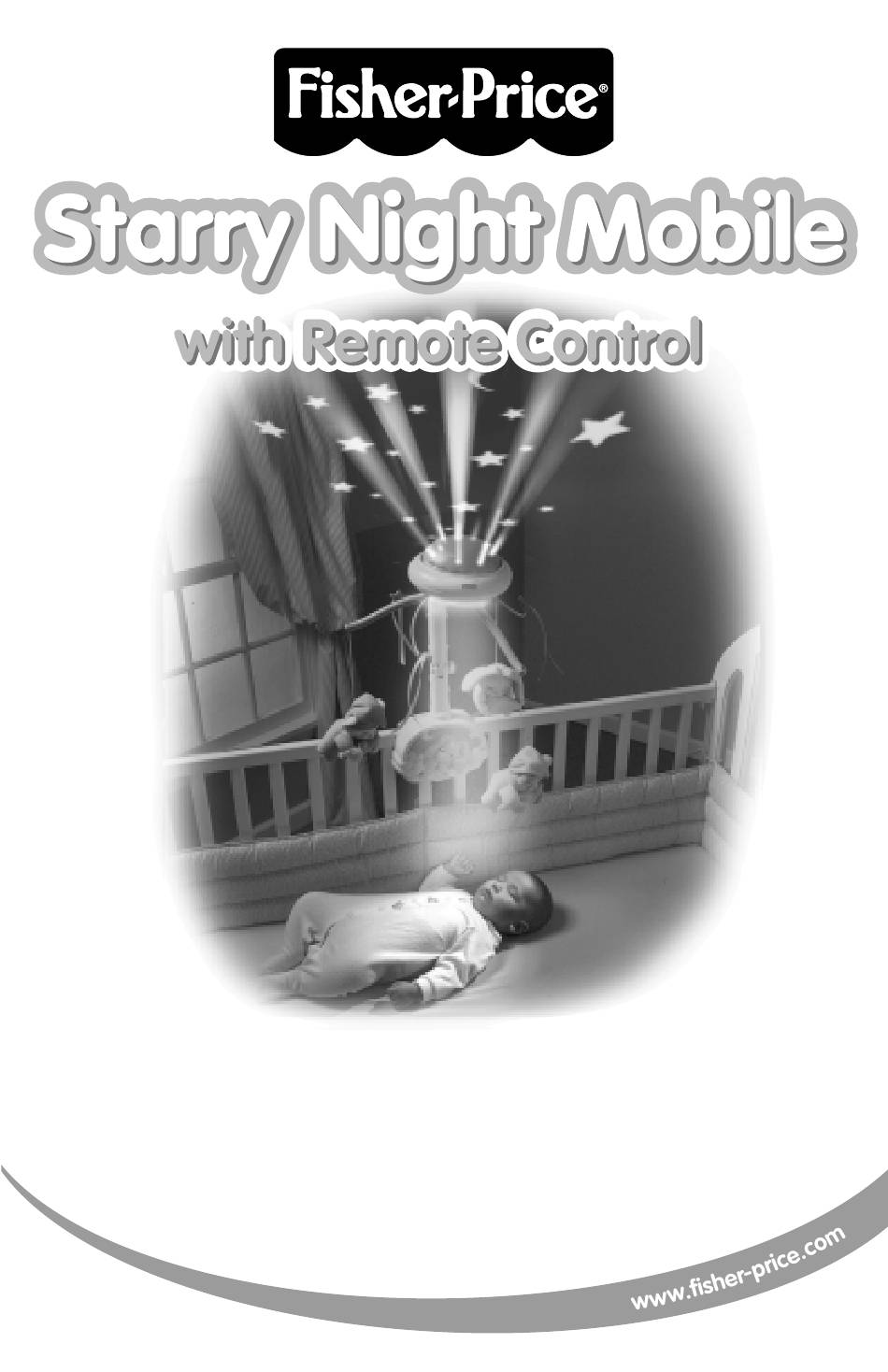

Product Number: 73458
Please keep this instruction sheet for future reference,
as it contains important information.
Adult assembly is required.
Requires four "D" (LR20) alkaline batteries for the mobile
and two "AA" (LR6) alkaline batteries for the remote. (Batteries not included.)
Tool required for battery installation: Phillips screwdriver (not included).
Advertisement
Table of Contents
Related Manuals for Fisher-Price Starry Night Mobile
Summary of Contents for Fisher-Price Starry Night Mobile
- Page 1 Product Number: 73458 Please keep this instruction sheet for future reference, as it contains important information. Adult assembly is required. Requires four “D” (LR20) alkaline batteries for the mobile and two “AA” (LR6) alkaline batteries for the remote. (Batteries not included.) Tool required for battery installation: Phillips screwdriver (not included).
- Page 2 Parts 3 Soft Toy Spokes 3 Star Spokes Base 3 Soft Toys Clamp Crib Adapter #6 x " Screw - 1 #6 x " Screw - 3 Both Shown Actual Size Remote IMPORTANT! CAUTION • Possible entanglement injury, keep out of baby’s reach. •...
-
Page 3: Mobile Features
Mobile Features Star Dome – Projects starry images onto baby’s ceiling. Start Button – Starts or restarts music and soothing lights. Light Select Button – Choose star dome light, night light, both lights or no lights. Song Select Button – Press to choose from five songs or no music at all. -
Page 4: Remote Features
Remote Features Rear View Front View Button - Press to activate the mobile once the mobile has been turned ON. LED Signal Indicator - Lights when the button is pressed to let you know the remote has transmitted a signal to the transmitter. Transmitter Window - Remote transmits a signal to the receiver dome on the mobile. -
Page 5: Battery Installation
Battery Installation Mobile Base Remote Mobile Base Remote • Locate the battery compart- • Locate the battery compartment ment door on the back of the door on the back of the remote. mobile base. • Loosen the screw in the battery •... -
Page 6: Battery Tips
Battery Tips 1.5V x 2 “AA” (LR6) Shown Actual Size 1.5V x 4 “D” (LR20) Shown Actual Size • Do not mix old and new batteries. • Do not mix different types of batteries: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium). •... - Page 7 Assembly Star Spoke Slot • Locate the three star spokes. • Insert and “snap” the tabs on the ends of the star spokes into the slots in the hub, as shown. Soft Toy Spoke #6 x " Screw Shown Actual Size •...
- Page 8 Assembly Soft Toy Spoke Slot Soft Toy String Soft Toy String • Fit a soft toy string through the slot in the end of a soft toy spoke. • Pull down gently on the soft toy to secure the string in the soft toy spoke. •...
- Page 9 Assembly Base #6 x " Screw Shown Actual Size • Insert and “snap” the arm into the hole in the side of the hub. • Fit the arm into the slot in the base, as shown. • Insert the #6 x "...
- Page 10 Crib Use Crib Adapter Push Base Battery Compartment Door • Position the base so that the battery compartment door is facing you. • Fit the tabs on the crib adapter into the slots in the base. • Push the crib adapter toward the arm to “snap” it into place. Base Crib Top Rail Threaded Peg...
- Page 11 IMPORTANT! • In the unlikely event that use of the remote interferes with normal use of other remote controlled equipment, such as televisions and stereos, or use of other electric or battery powered appliances interfere with operation of the mobile, do not use both appliances at the same time. •...
- Page 12 Power/Volume Switch • The switch has three positions: off ; on with low volume and on with high volume . • Slide the power/volume switch to the off position when not in use. Song Select Button • Press the button to choose from five different songs and no music (lights only).
- Page 13 Dresser-top Use Press Long Base Base Crib Adapter Crib Adapter • Locate the long tab near the threaded peg on the crib adapter. • While pressing the tab with a coin or slotted screwdriver, slide the crib adapter off of the base as shown. •...
- Page 14 Dresser-top Use Knob Crib Use Loosen Knob Rotate Arm Tighten Knob Knob Dresser-top Use • Locate the knob on the arm. • Turn the knob counter-clockwise to loosen the arm. • Rotate the arm to an angled position as shown. •...
- Page 15 Care Soft Toy Spoke Slot Soft Toy String Soft Toys • To remove a soft toy, grasp its string and press the knot up through the opening in the spoke. • Slide the string through the slot in the spoke. •...
-
Page 16: Fcc Note (United States Only)
Victoria 3121 Australia. Consumer Advisory Service 1300 135 312. New Zealand: 16-18 William Pickering Drive, Albany 1331, Auckland. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. ©2001 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.
