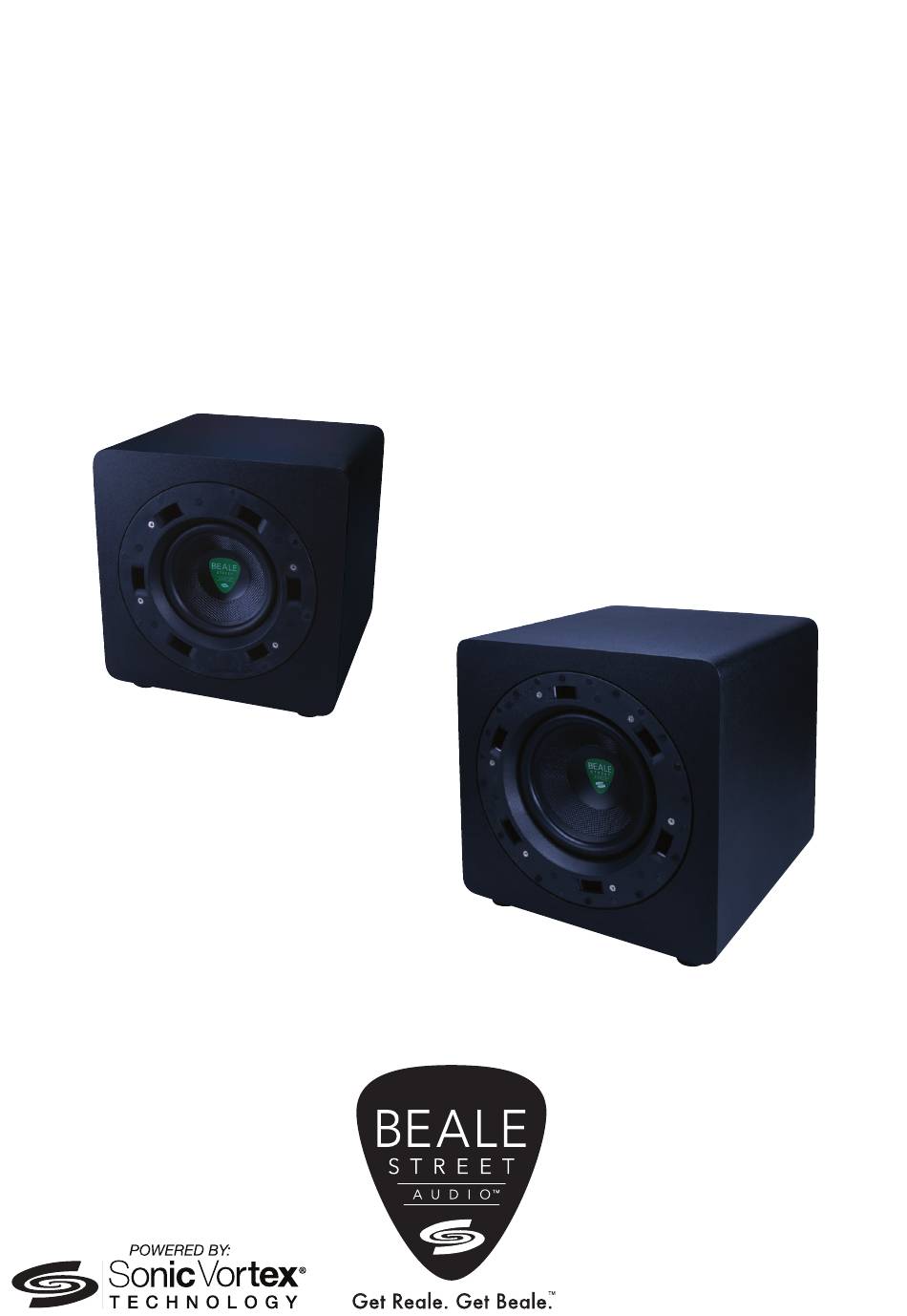

- Page 1 Beale Street Audio BPS-65 and BPS-80 Active In-Room Subwoofers Installation Guide...
- Page 2 The adjustable crossover allows fine-tuning to properly complement any full-range, or limited range, speakers. Please read and follow the instructions in this User Guide to assure you are getting the most from your new Beale Street Audio active in-room subwoofer!
-
Page 3: What's Inside
• Adjustable subwoofer crossover frequency • Adjustable phase (0° or 180°) • 110/220V What’s Inside? BPS-65 BPS-80 • BPS-65 Subwoofer • BPS-80 Subwoofer • Black cloth grill • Black cloth grill • AC Power Cord • AC Power Cord • Product Manual... -
Page 4: Rear Panels
Rear Panels BPS-65 BPS-80... -
Page 5: Installation
While a single Beale Street Audio subwoofer will always sound great, the use of two subwoofers will enhance your system’s performance by providing a smoother and more consistent low frequency response. - Page 6 Connections All connections are conveniently placed on the rear panel for sane wire management, convenient connections and simple service. NOTE: Do not connect the AC power cord or turn the amp on until all connections have been made and confirmed. Making connections with the power on can result in...well...
- Page 7 Receiver/Processor LFE/Sub Out • Using a stereo or mono RCA-RCA cable with gold ends, connect the LFE OUT, Sub OUT, or other line level audio OUT on an amplifier, surround receiver or other audio preamp to either the LFE or LINE in on the BPS subwoofer.
- Page 8 Speaker Level Input Configuration Receiver/Processor Speaker Out Right Speaker Left Speaker • In this configuration, speaker level audio input will passthrough at full bandwidth to the Speaker Level OUT. • NOTE: Do not connect the AC power cord or turn the amp on until all connections have been made and confirmed.
- Page 9 Speaker Level In 1. Use 16AWG 2-conductor stranded speaker wire for speaker connections 2. Strip approximately 1/2 to 3/4 of an inch off the ends and twist the strands together so there are no loose strands that can cause shorts 3.
-
Page 10: Specifications
Specifications Description BPS-65 BPS-80 Maximum Output Power 220W <1% Frequency Response 38Hz-300kHz 28Hz-300kHz Signal to Noise 71dB Crossover 40Hz-160Hz Phase 0°,180° Line Voltage 110-120V/220-240V Max Power Consumption 250W Dimensions 11.65” L x 11.65” W x 12.4” H 13.5” L x 13.5” W x 14.25”H Weight 12.04 lbs... -
Page 11: Limited Warranty
Limited Warranty With the exceptions noted in the next paragraph, Vanco warrants to the original purchaser that the equipment it manufactures or sells will be free from defects in materials and workmanship for a period of two years from the date of purchase. Should this product, in Vanco’s opinion, prove defective within this warranty period, Vanco, at its option, will repair or replace this product without charge. - Page 12 The Vanco logo, Sonic Vortex logo, and Beale Street Audio Inc. logo are registered trademarks of Vanco International, LLC. Vanco, Sonic Vortex, Beale Street Audio, Get Reale. Get Beale., the Vortex logo, and the Beale Street Audio logo are trademarks of Vanco International, LLC.
