Klimatom IRIS T User Manual

All work, like installation must be carried out by the qualified person – with professional qualifications and

expertise in electricity and electrotechnics accordance with law and rules in concrete country.

Disconnect power supply before any installation or manipulation – preferably with circuit breaker.

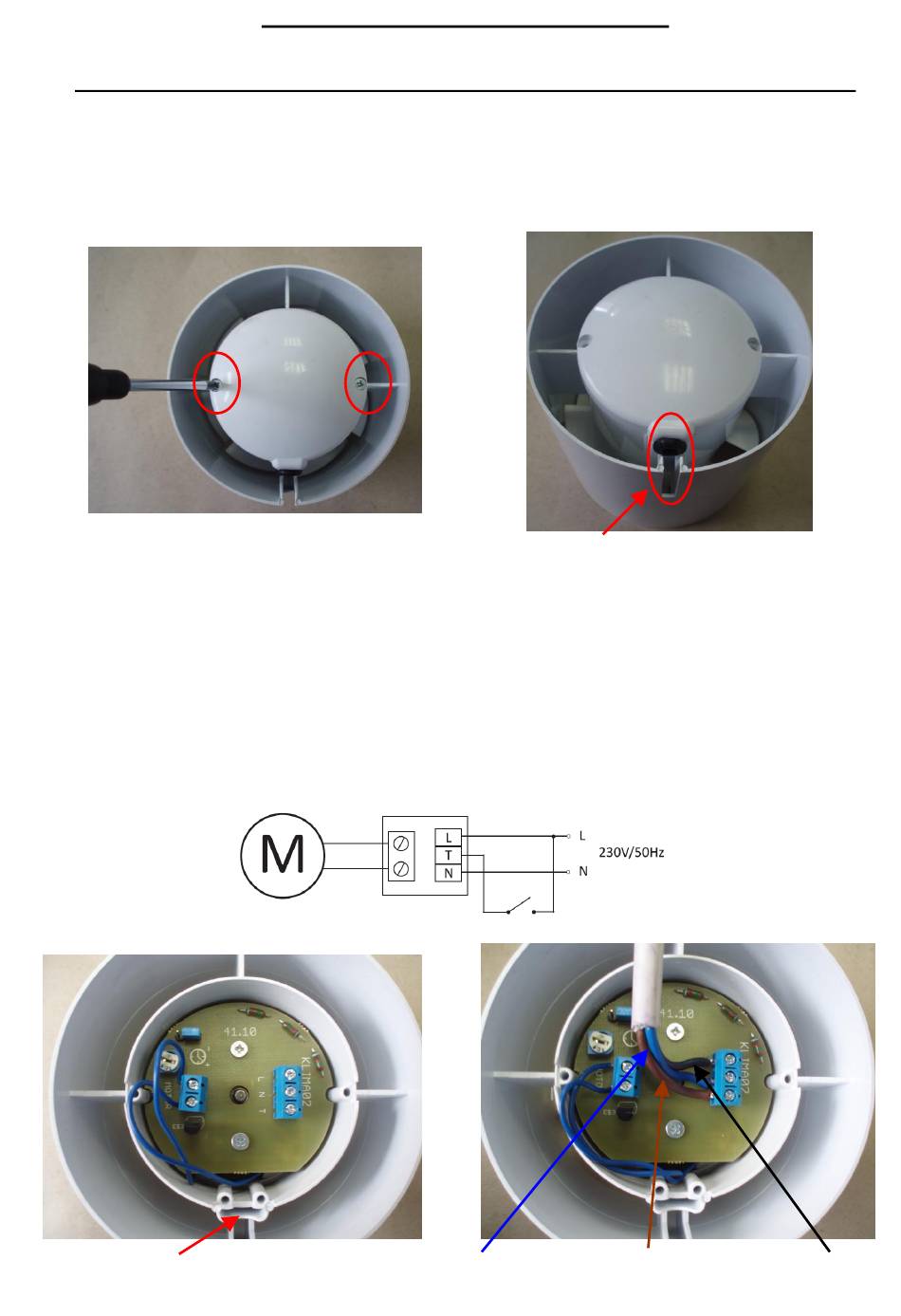

1. Remove the cover with a small screwdriver.Install the fan so the service cables will be in lower part

of the fan. Place the fan into air duct with suitable diameter. In a prepared place drill a hole for the

electric service cable. (Warning! Sharp edges can damage wire insulation!). Install the fan using suitable

screws and plugs.

2. Connect the fan with power supply using the terminal strip. Usually goes from wall electric cable with

3 wires, so the blue is directly earthed conductor (N), brown / black is the phase conductor (L – under

constant voltage) and third yellow-green is the circuit protective conductor (no need to connect when

mounting plastic fan, can be blinded).

Install the fan so the service cables will be in lower part of the fan.

Tubular fans ENTER T, IRIS T has electronics, which you connect directly to power supply

(directly earthed conductor –N- and brown / black phase conductor -L - under constant voltage).

Into terminal T connect controlled phase wire from on-off switch (standard specification – brown).

Place for service cable

User´s manual - IRIS T / ENTER T

Directly earthed conductor (N)

Mounting hole

Controlled phase (T)

Phase (L)

Table of Contents

Need help?

Do you have a question about the IRIS T and is the answer not in the manual?

Page 1 Install the fan so the service cables will be in lower part of the fan. Tubular fans ENTER T, IRIS T has electronics, which you connect directly to power supply (directly earthed conductor –N- and brown / black phase conductor -L - under constant voltage).
Page 2 3. Carefully turn potentiometer in clockwise direction with small screwdriver from 30 seconds to 25 minutes (directions +-). For exact time experimentally turn and try. You can select from 3 different ways of working electronic overrun (blue jumper): Mode A – connects 1 and 2, factory setting Device starts to work if and only if you switch ON the on-off switch (power supply on T).
Page 3 4. Re-mount and screw the cover. Domestic tubular fan IRIS can be mounted only to the wall (slide bearings). Connect power supply – switch on the circuit breaker. 5. Turn on on-off switch to bring power supply 230V/50Hz into device – fan starts to work according to set mode.
