Summary of Contents for Dream Catcher ME1110
Page 1

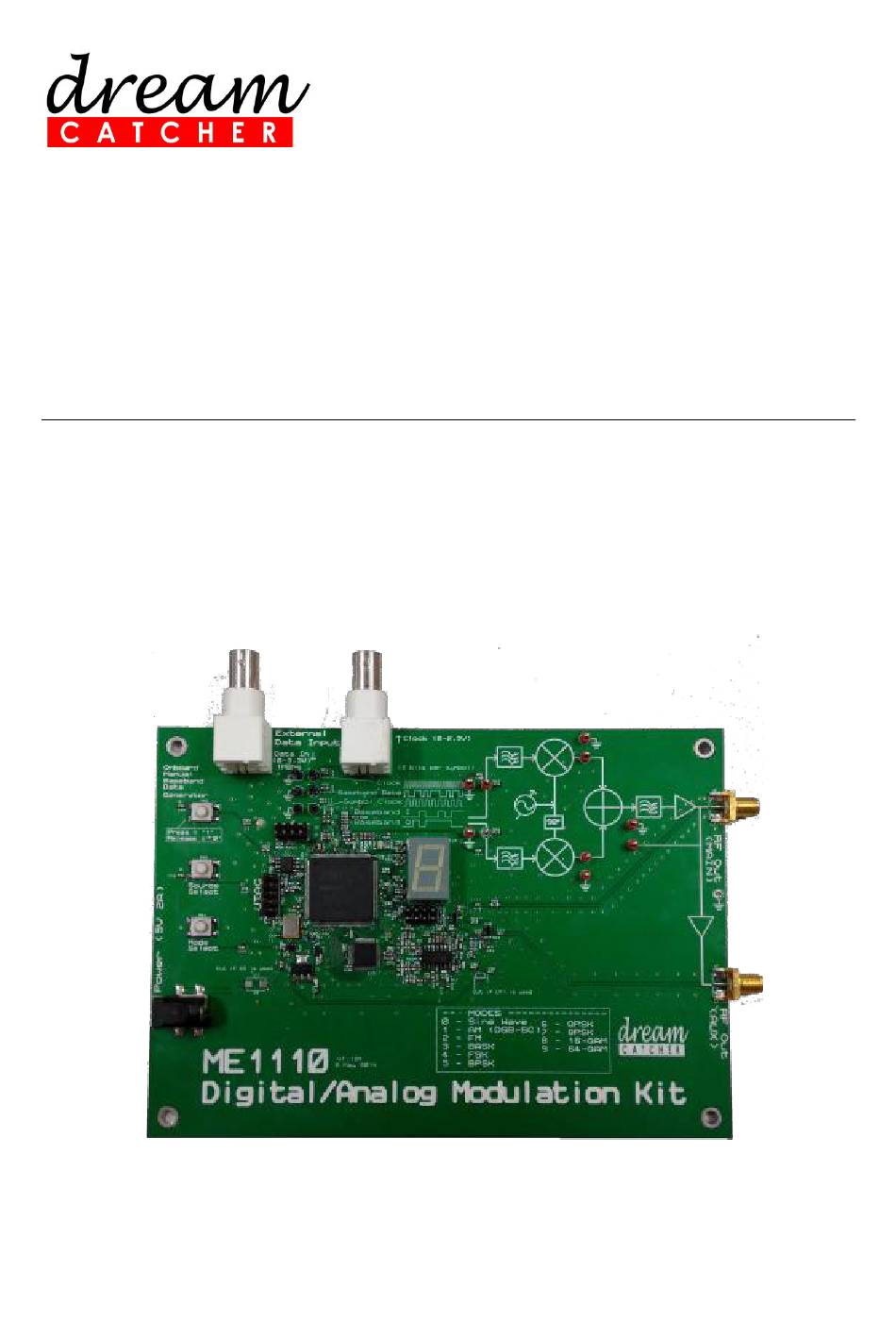

ME1110 Digital Modulation Technique Out-of-Box Teaching Solution for Analog and Digital Modulations Quick Start Guide revision 1.01 Printed on 27 September 2018...
Page 2
All wordings colored in red are to be edited and replaced by the appropriate contents. All comments highlighted in yellow are supplementary information or instructions to assist the author in preparing this document. They will be deleted in the final version. ME1110 Digital Modulation Technique Quick Start Guide - 2/16...
5. If you are a new customer, click Continue under the CREATE ACCOUNT section to create a new account. Fill in the New Account form and click SIGN UP to submit your registration. ME1110 Digital Modulation Technique Quick Start Guide - 4/16...
Page 5
Download the registered product’s contents and materials NOTE: Products downloads are made available only for registered products. Click REGISTER NEW PRODUCT to register your product first. D. WARRANTY INFORMATION View your product’s warranty expiry date ME1110 Digital Modulation Technique Quick Start Guide - 5/16...
1. Quick Setup and Verification 1.1 The following steps demonstrate the basic setup of the ME1110 training kit together with an oscilloscope. Step 1: Setting Up the Device Connections Step 2: Selecting the Modulation Format and Verifying the Waveforms on the Oscilloscope...
Page 7
Step 2: Selecting the Modulation Format and Verifying the Waveforms on the Oscilloscope Refer to the Mode Table printed on the ME1110 modulation kit and look for the Mode number of the QPSK. Press on the PB1 button...
Page 8
{Control} again to VSA software select or activate the USB controller. *{ }= sofkey, [ ] = hardkey To verify the oscilloscope connection, select All Programs > Agilent Connection Expert. ME1110 Digital Modulation Technique Quick Start Guide - 8/16...
Page 9
Select the oscilloscope by clicking on it, and then go to the Configuration tab in the Hardware window. Click to add a new Analyzer based on the oscilloscope. ME1110 Digital Modulation Technique Quick Start Guide - 9/16...
Page 10
MHz, Points/Symbol = 4, and Result Length = 80 Symbols. A warning about insufficient data for digital demodulation may appear. Ignore this and continue with the setup, then click the Run button. ME1110 Digital Modulation Technique Quick Start Guide - 10/16...
Page 11
The VSA software may override the frequency span selection. Go to the MeasSetup window to change it back to the preferred value. Change the display to Grid 2x2 to display the demodulated signal. ME1110 Digital Modulation Technique Quick Start Guide - 11/16...
Page 12
2.45% and a phase error of approximately 1.60 degree. The IQ offset is about 39.39 dB. These are the errors of the IQ modulator for the QPSK modulation. ME1110 Digital Modulation Technique Quick Start Guide - 12/16...
This warranty extends to Buyer only and not to Buyer's customers or users of Buyer's products and is in lieu of all other warranties whether expressed, implied, or statutory including implied warranties of merchantability of fitness. For technical support and warranty, email cw.support@dreamcatcher.asia ME1110 Digital Modulation Technique Quick Start Guide - 13/16...
Appendix A: Technical Specifications ME1110 – Digital Modulation Board Typical Unit Input voltage (5 V) Input current (5 V) External Data Input Carrier Frequency at CW mode 9.995 10.005 Clock Output (For External Data Input) RF Out (Main) into 50Ω load at CW mode +0.30...
