IMPORTANT
DreamLine
reserves the right to alter, modify or redesign products at any time without prior notice for the
®
purpose of product improvement and customer experience. Please refer to the model's web page on
DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional
product details.
Right-Hand return panel installation shown
PLEASE REVIEW THIS ENTIRE MANUAL PRIOR TO INSTALLATION
For more information about DreamLine

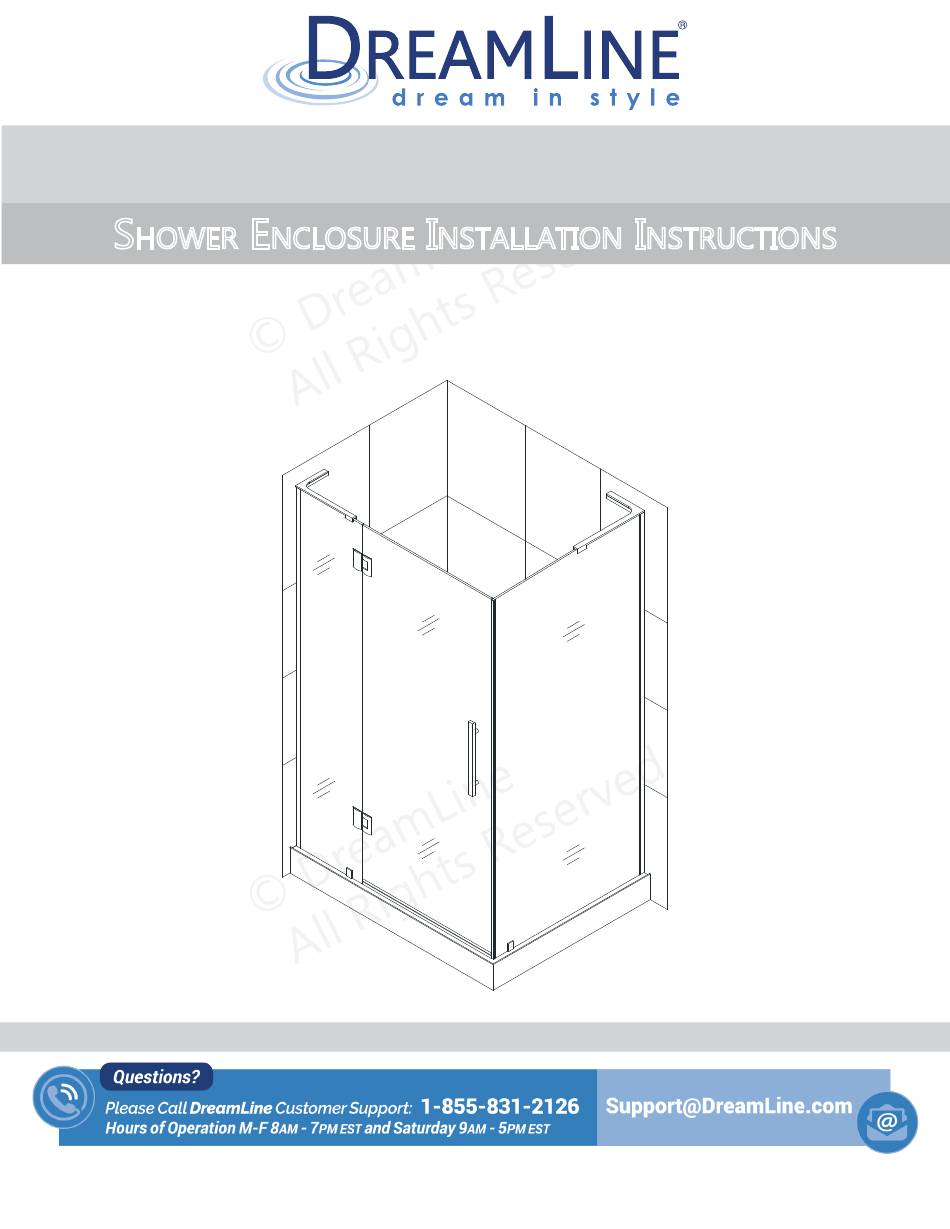

QUATRA PLUS Shower Enclosure Manual Ver 1 10/2018
QUATRA PLUS
E
I
NCLOSURE
Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com
®
NSTALLATION
I
NSTRUCTIONS
MODEL #s
SHEN-1432460-##
SHEN-1434460-##
SHEN-1434520-##
SHEN-1434580-##
##=finish
01- Chrome
04- Brushed Nickel
06- Oil Rubbed Bronze
09- Satin Black
©2018 DreamLine. All Rights Reserved
Advertisement
Summary of Contents for Dreamline QUATRA PLUS Series
- Page 1 ® purpose of product improvement and customer experience. Please refer to the model’s web page on DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional product details. MODEL #s...
- Page 2 This model is treated with DreamLine’s exclusive ClearMax Glass technology. This is a specially formulated coating that prevents the buildup of soap and water spots. Install the surface with the ClearMax label towards the inside of the shower. Please note that depending on the model, the glass may be coated on either one or both surfaces.
- Page 3 If time allows, delay installing the door glass onto the hinge panel glass for 24 hours until the silicone securing the hinge panel glass has fully cured. ©2018 DreamLine. All Rights Reserved QUATRA PLUS Shower Enclosure Manual Ver 1 10/2018...
-
Page 4: Table Of Contents
For the left-hand return panel installation, simply begin on the opposite wall and reverse the orientation of the steps shown. ©2018 DreamLine. All Rights Reserved QUATRA PLUS Shower Enclosure Manual Ver 1 10/2018... - Page 5 Enclosure Diagram SHEN-1432460-## SHEN-1434460-## 46-3/8” 46-3/8” SHEN-1434520-## SHEN-1434580-## 52-3/8” 58-3/8” All drawings in this manual are for illustrative purposes only and are not drawn to scale. QUATRA PLUS Shower Enclosure Manual Ver 1 10/2018...
-
Page 6: Preparation
2. Please note that you should consult your local building codes with questions on installation compliance standards. Building and plumbing codes may vary by location, and DreamLine is not ®... -
Page 7: Tools
Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine for replacement. The shipping boxes may contain extra parts not used in ®... -
Page 8: Detailed Diagram Of Shower Door Components
Detailed Diagram of Shower Door Components QUATRA PLUS Shower Enclosure Manual Ver 1 10/2018... -
Page 9: Parts List
Parts List DESCRIPTION ITEM # Hinge Panel Glass Door Glass Return Panel Glass Right-Hand L-Bar™ Handle Hinge Ø5/16” Wall Anchor ST4.2 x 40 Pan Head Screw Pan Head Screw ST4.2 x 25 Decorative Covers and Washers Stainless Steel U-Channel Strike Vinyl Hinge Side Vinyl Sweep Vinyl Left-Hand L-Bar™... -
Page 10: Installation Steps
Installation steps Starting at the bottom, measure from the finished back corner of the opening to the dimensions shown in TABLE A. Draw a plumb line up the wall according to the Glass Box Code for the Shower Enclosure model size. These lines will represent the outside of the Stainless Steel U-Channels (#11). - Page 11 Mark the drilling holes on the wall through the predrilled holes in the Stainless Steel U-Channels (#11). Drill the holes in the wall using a Ø5/16”(8mm) drill bit and insert the 5/16” Wall Anchors (#07). Run a bead of Waterproof silicone along the back of the Stainless Steel U-Channels (#11). Fasten the Stainless Steel U-Channels (#11) to the walls using the Pan Head Screw ST4.2×40 (#08).
- Page 12 Set the Hinge Panel Glass (#01) onto the threshold and into the Stainless Steel U-Channel (#11). Do the same for the Return Panel Glass (#03). (Fig 5) NOTE: The opening between the Hinge Panel Glass (#01) and the Return Panel Glass (#03) needs to be 24-1/8” to accommodate the door glass.
- Page 13 L-Bar™ Assembly Parts List (Left-hand bracket shown) 15.9 15.4 15.5 15.6 15.2 15.1 15.7 15.8 Item# DESCRIPTION DESCRIPTION Item# 15.6 Wall Plate 1 pc L-Bar™ (left-hand shown) 1 pc 15.7 Truss Head Screw ST 4.2 x 40 2 pcs PVC Spacer 1 pc 15.1 15.8...
-
Page 14: L-Bar™ Installation
Position the Left-Hand L-Bar™ (#15) onto the Hinge Panel Glass (#01) as shown and mark its position on the wall. Remove the Wall Plate (#15.6) from the Left-Hand L-Bar™ (#15). Hold the Wall Plate (#15.6) to the marks on the wall. Check for level and mark the holes for drilling through the wider, untapped holes. -
Page 15: Vinyl Seals
Adjust the Hinge Panel Glass (#01) to plumb and tighten the screws. Attach the Decorative Cover (#15.4). Secure the L-Bar™ (#15.3) to the top of the Hinge Panel Glass (#01) using the clear gasket and rubber-tipped set screws. Do Not Overtighten! (Fig 8.10 and Fig 8.11) Repeat these steps for the installation of the Right-Hand L-Bar™... - Page 16 Attach the Hinges (#06) to the Hinge Panel Glass (#01) (with the bolts facing inside the shower). Use at least one gasket per side. Make sure that the hinges are flush to the edge of the glass and level. Carefully bring the Door Glass (#02) into the shower between the two stationary panels. Level up the Door Glass (#02) next to the Hinge Panel Glass (#01) and fasten the hinges onto the Door Glass (#02).
- Page 17 NOTE: DO NOT attach the handle to the door glass or the towel bar to the panel glass until instructed. DO NOT use the handle or towel bar to lift the glass during installation. This may result in damage to the glass and/or serious injury. Always use an assistant or a professional grade glass suction cup when handling heavy glass.
- Page 18 Measure the width at the bottom of the Door Glass (#02) to determine the actual glass width. Using a razor knife, cut the Sweep Vinyl (#14) to the size of your measurement and notch approximately 3/8” off of the inner side of the Sweep Vinyl (#14) as shown in Fig. 13.2. Press the Sweep Vinyl (#14) tightly onto the bottom edge of the Door Glass (#02).
- Page 19 Be sure the Door Glass (#02) closes evenly and completely against the Strike Vinyl (#12). (Fig 15) Fig 15 Assemble the Bottom Brackets (#16) onto the bottom of both lites of the Stationary Glass, using the gaskets to prevent glass to metal contact. Mark the Shower base through the holes in the flange of the Bottom brackets (#16).
- Page 20 Apply a good quality mildew-resistant silicone along the interior perimeter of the wall profiles and along the bottom of the panel glass where it meets the threshold. (Fig 17) NOTE: The surfaces need to be clean and free of debris before applying silicone. Allow 24 hours for the silicone to cure before using the shower.
- Page 21 QUATRA PLUS Shower Enclosure Manual Ver 1 10/2018...
-
Page 22: Product Maintenance
NOTE: To maximize the life of your door, it is important to regularly inspect the glass and all hardware for misalignment, proper attachment, and/or damage. Contact DreamLine with any questions or concerns. ® DreamLine shower doors and enclosures are designed not to leak when ®... - Page 23 TEL: 866-731-2244 FAX: 866-857-3638 DREAMLINE.COM For more information on DreamLine Shower Doors and Enclosures please visit DreamLine.com ® QUATRA PLUS Shower Enclosure Manual Ver 1 10/2018...
