User's Manual
electronic components GmbH
Maybachstrasse 39
73037 Göppingen

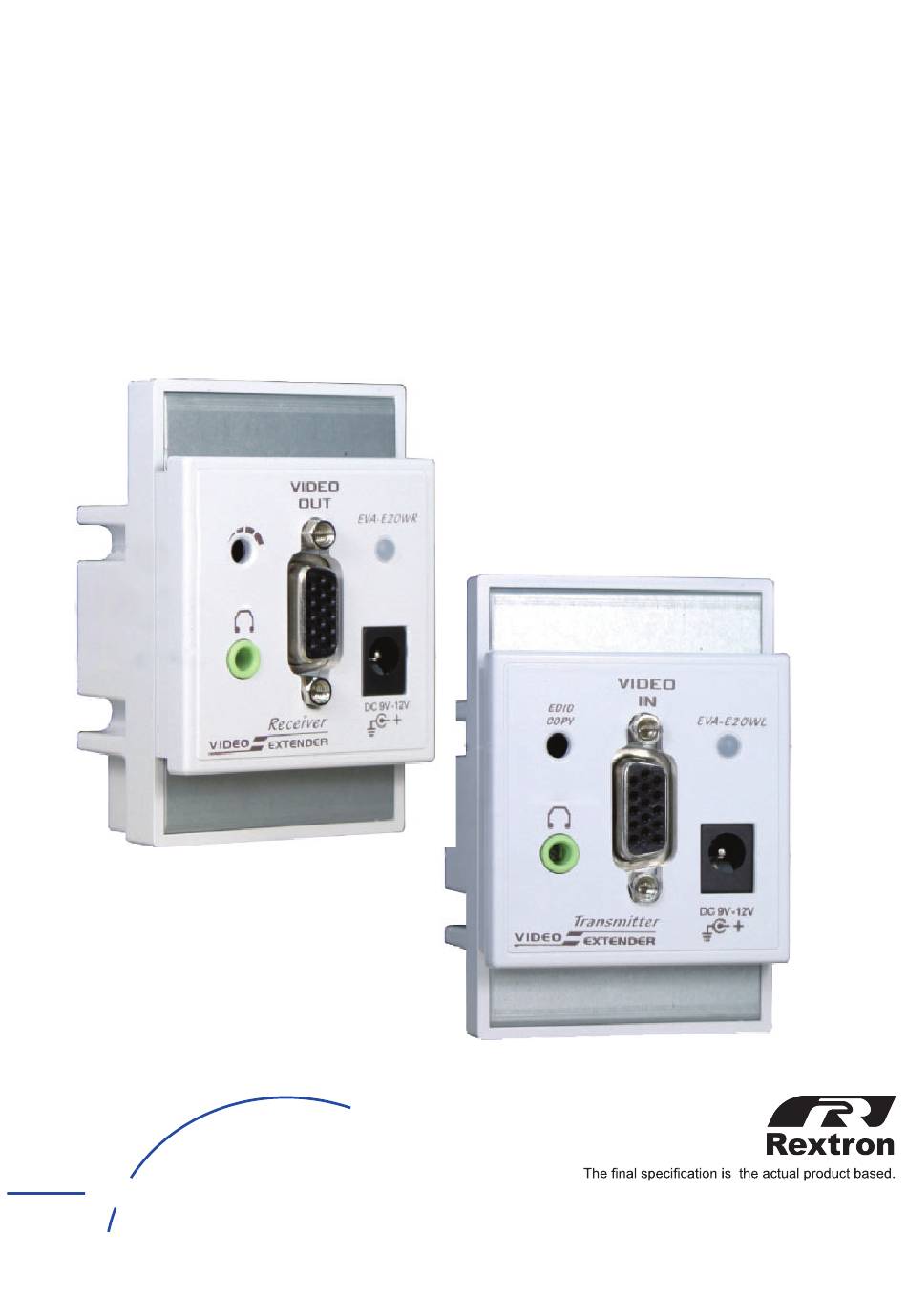

EVA-ME20WW
E N
V
M E D I A T E C H N O L O G Y
Tel: +49 7161 60686 0 www.evn-components.de
Fax: +49 7161 60686 29 info@evn-components.de
◘
◘
Features and functions may be added or changed
after the manual was written. Please visit our
website to download the latest version of manual
for reference.
PP5-RHAA12Z-000
RoHS
Advertisement
Table of Contents
Summary of Contents for EVN Rextron EVA-ME20WW
- Page 1 M E D I A T E C H N O L O G Y website to download the latest version of manual for reference. Maybachstrasse 39 Tel: +49 7161 60686 0 www.evn-components.de PP5-RHAA12Z-000 RoHS 73037 Göppingen Fax: +49 7161 60686 29 info@evn-components.de...
-
Page 2: Table Of Contents
Table of Content ■ Introduction ……………………………………………………………………….….1 Overview......................… 1 Features......................… 2 Package Contents ................... … 2 ■ Production Description..……………………………………………..……………..3 ■ Installation ……………………………………………………………..……………..4 Transmitter....................... … 4 Receiver......................… 4 ■ EDID Copy ………………………………………………….…....……….…6 EDID Copy (for Transmitter Unit only)…………………..……………………….…6 ■ Appendix ……………………………………………………….....………8 Specifications .................... -
Page 3: Introduction
------------------------ Introduction Overview The wall-mount Video (+Audio) Extender consists of a Transmitter and a Receiver that allows you to extend VGA (+Audio) signal up to 165 meters away from a Video source by using only a single UTP CAT5/ 5e/ 6 cable increasing the space efficiency. -
Page 4: Features
Features Extend video (+ audio) signal up to 165M away from a Transmitter Support the video resolution up to 1920 x 1080 (Full HD), 1920 x 1200 (WUXGA) Plug-n-Play enabled in Windows, Mac, Sun and Linux platforms No driver needed or software required EDID Copy function makes the best resolution presenting for your application EQ (Sharpness) adjustment for optimal signal clarity... -
Page 5: Production Description
------------------- Product Description RJ-45 Connector Connect to Receiver Unit 1. Copy the EDID of the connected (T3) EDID Copy Button monitor 2. Use the default EDID VGA Port Connect to a video source Connect to a audio source Audio Port (depends on model) Green: Power ON LED Indicator... -
Page 6: Installation
------------------- Installation Before the installation Prior to the installation, ensure to power off all devices that will be connected to this system. Ensure that all devices you will connect are properly grounded. Place cables away from fluorescent lights, air conditioners, and machines that are likely to generate electrical noise. - Page 7 Assembly Step 1. Remove the 4 screws on the Extender Unit Step 2. Install the Extender Unit inside the Wall-mount Box, as figure shown below. Extender Cover Wall-mount Cover Extender Unit Wall-mount Box NOTE: The depth of the Wall-mount Box should not be less than 34mm...
-
Page 8: Edid Copy
----------------- EDID Copy EDID Copy for Transmitter Unit only In some cases users may suffer from display problems due to incorrect EDID communication between the display monitor and the PC graphics card or insufficient EDID data programmed by display manufactures. The Local Unit provide “EDID Copy” feature that allows the Unit to read the necessary EDID information from the attached video display and then provide it at all times to attached computer. - Page 9 Copy (new) monitor EDID: When using a monitor (EDID compliant) for display, the Unit’s EDID Copy function will enable the EDID communication between the monitor and Unit for optimal video quality. Users can achieve this EDID communication by following the instructions below: Step 1.
-
Page 10: Appendix
----------------- Appendix Specification Transmitter Receiver UK Type EV-E20WL EV-E20WR Video Germany EV-G20WL EV-G20WR (Europe Type) Video UK Type EVA-E20WL EVA-E20WR Germany EVA-G20WL EVA-G20WR Audio (Europe Type) HDB15-F x 1 RJ-45 x 1 Input HDB15-F x 1 RJ-45 x 1 Audio jack x 1 HDB15-F x 1 RJ-45 x 1 HDB15-F x 1... -
Page 11: Related Products
Related Products Wall plate / Dongle Video Extender Type Function Transmitter Receiver Dongle Video EV-10DL EV-01DR Video EV-A20WL EV-A20WR US Type Video Wallplate EVA-A20WL EVA-A20WR + Audio VGA SKEW TUNER Type Function RGB Calibration Distance (Max.) VGA SKEW Correct 200M 300M TUNER RGB skew... - Page 12 2U Rackmount Module Tray Kit: RMU-U2RACK Power Hub (12V x 8): PHQ-50T...
- Page 13 Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY FOR DIRECT OR INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFIT, LOSS OF BUSINESS, OR FINANCIAL LOSS WHICH MAY BE CAUSED BY THE USE OF THE PRODUCT EXCEEDS THE PRICE PAID FOR THE PRODUCT.
