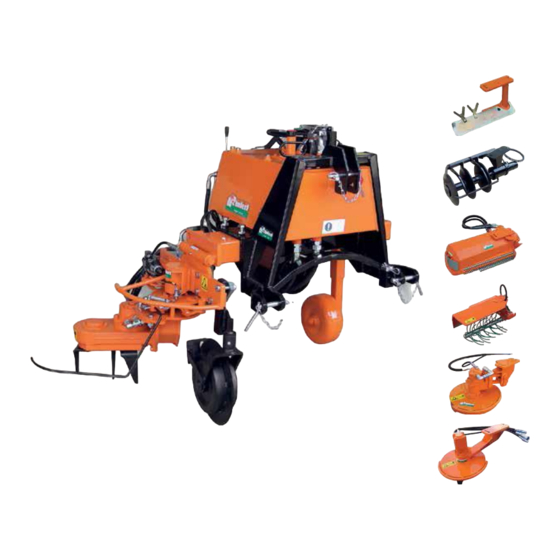

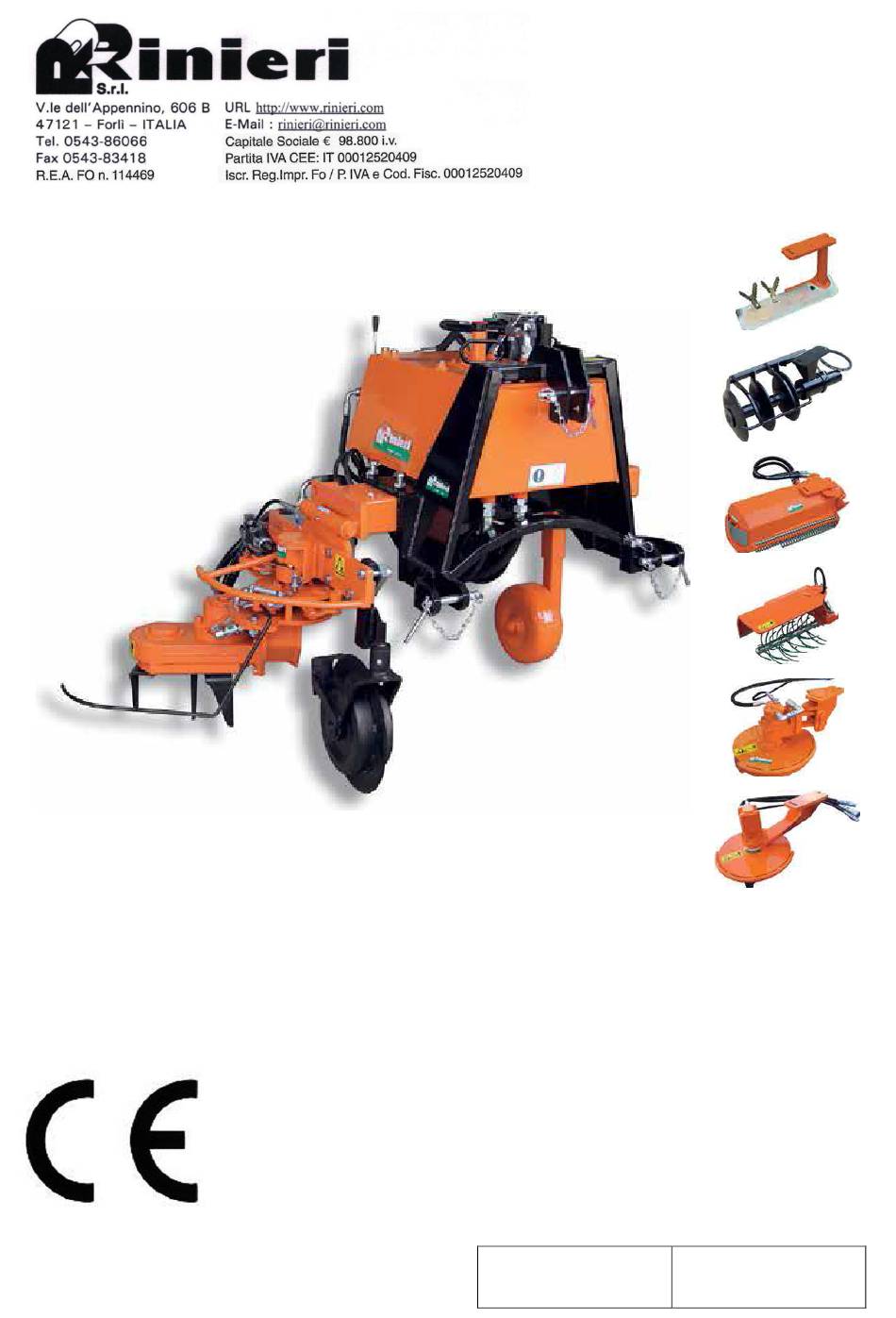

- Page 1 Velox 1-2-5-8 GS-GE In and out groups mount frame Instructions for use and maintenance The following instructions must be read carefully prior to using the machine. In accordance with article 2006/42/CE SERIAL and subsequent modifications...
- Page 2 In regards to safety and reliability this machine was designed in accordance with the provisions and subsequent revisions set out in the EEC “machines article”. The manufacturer therefore cannot be held responsible for machine use where modifications have been made without prior manufacturer’s consent, replacement parts used are not those stated by the manufacturer and use by untrained persons.
-
Page 3: Declaration Of Conformity
EC DECLARATION OF CONFORMITY As stated by the EC directive 2006/42/CE and subsequent modifications The undersigned RINIERI S.r.l. - Forlì – Italia - Viale dell’Appennino 606 B Declares under its responsibility that the machine: Velox Model Code no. Serial no. - Page 4 Page intentionally left blank...
- Page 5 ATTENTION THE PURPOSE OF THIS TEXT IS TO INTRODUCE YOU TO THE BASIC STANDARDS AND CRITERIA YOU HAVE TO FOLLOW IN ORDER TO USE AND MAINTAIN THIS MACHINE AND THUS IT HAS TO BE READ BEFORE USING THE MACHINE. This manual has to be considered as an integral part of the machine and must be passed on with the machine if resold. If you loose it or if it is not readable, it is important that you ask for a new copy to the producer, to the dealer or to the importer.
- Page 6 INDEX DESCRIPTION Page Declaration of conformity Index Introduction General information Recommendations Description of the machine Pre-operation Controls Identification data Adhesives Safety regulations Improper use Incorrect use Method of use Registration Maintenance Transport hoisting movement Spare parts Conditions of guarantee...
-
Page 7: Introduction
INTRODUCTION Dear Customer, the purpose of this text is to introduce you to the basic standards and criteria you have to follow in order to use and maintain this machine and thus it must be read before using the machine. If any part of this publication is not understandable please consult your retailer as this is a necessary precondition to using this machine safely. - Page 8 We remind you that some machines mechanical parts have linear or rotatory movement and can cause serious damage or injury to people, animals and things. It is forbidden to remove or tamper with the safeguards of the machine. It is obligatory to wear the correct protective clothing and safety equipment. It is necessary to keep the machine clean and in working order especially the nameplates, couplings and controls.
- Page 9 Codice Mod. Tools HP - KW Km/h. 6GS511 - 6GE511 Blade 0,15 Discs 0,15 6GS515 - 6GE515 Velox 2,50 2,00 0,60 50 - 37 0,10 6GS516 - 6GE516 Harrow 0,10 6GS514 - 6GE514 The simple version of the machine has a fixed three-point hitch (Fig.7) and a supporting rear wheel with regulation by screws (Fig.8).
- Page 10 Code Mod. Tools HP - KW Km/h. 6GS121 - 6GE121 Blade 0,15 Discs 0,15 Velox 6GS125 - 6GE125 1,50 1,70 0,60 40 - 30 0,10 6GS126 - 6GE126 Harrow 0,10 6GS124 - 6GE124 6GS221 - 6GE221 Blade 0,15 Discs 0,15 Velox 6GS225 - 6GE225 2,50...
-
Page 11: Pre-Operation
Codice Mod. Utensile HP - KW Km/h. 6GE811 Blade 0,15 Discs 0,15 Velox 6GE815 0,60 50 - 37 0,10 6GE816 Harrow 0,10 6GE814 6GE821 Blade 0,15 Discs 0,15 Velox 6GE825 0,60 50 - 37 0,10 6GE826 Harrow 0,10 6GE824 For all models, on demand, it is possible to have a version with a mouldboard for the hoeing blade, a spatula that cleans the plants and/or a soil-levelling blade for the disc unit, a front wheel with hydraulic regulation with hoses to the tractor instead of the mechanical regulation. - Page 12 If the tractor does not have any 3-pin plug attachments, adapt its system with the same 3-pin plugs that come with the machine considering the scheme here on the side. Connect the two 4mm diameter cable groups with max. impedance 18A directly to the 12V battery of the tractor, one group for every 3-pin attachment to add to the existing system.
-
Page 13: Controls
If it is not included with the machine, connect an adequately powered cardan shaft making sure the side with the picture of a tractor is inserted in the tractor’s power take-off. The safety device, the shear bolt, should be applied only on the machine’s side. - Page 14 CONNECTIONS AND HYDRAULIC SCHEME Single version 50 and 90 liters tank hydraulic kit P: Pump SC: Oil cooler VMP: Maximum pressure valve RF: Flow divider Di: hydraulic distributor electro-hydraulic distributor electro-hydraulic commando block electro-hydraulic commando block GE displacement cylinder mi: inclination cylinder DT: tractor’s distributor M: Motor Double version 90 liters...
-
Page 15: Identification Data
DT: tractor’s distributor M: Motor IDENTIFICATION DATA ATTENTION CHECK YOUR MACHINE: if you don't find an identification tag, ask immediately for it to your retailer. Machines without identification tag mustn't be used. Our factory doesn't recognise them, so consider them as anonymous and potentially dangerous. - Page 16 CAUTION The power takeoff must be set to 540 rpm with a working speed between 280 and 400 rpm. CAUTION Read and refer to the “use and maintenance” instruction manual carefully before using the equipment or performing any kind of work on it.
-
Page 17: Safety Regulations
CAUTION The machinery contains rotating equipment; Keep safety distance and wait for the components to stop rotating before performing any work on them. CAUTION The machinery contains rotating equipment; Keep safety distance and wait for the components to stop rotating before performing any work on them. -
Page 18: Improper Use
the moving vehicle and that it does not cover possible lighting and signaling systems; if this is not possible, put the machine on a type-tested tow. Before leaving the driver’s seat, disconnect the power source, switch off the engine, take out the ignition key and put on the handbrake. - Page 19 Send away everybody from the working area before starting work, than proceed slowly checking your machine. Make sure there are no people standing near the machine. With the machine lifted up in a perfectly horizontal position slowly start up the power takeoff until it reaches a maximum of 400 turns within the 540 rpm range and make sure that everything is working properly and without vibrations.
-
Page 20: Registration
1: Maximum pressure valve for working head. 2: By-pass valve that needs to be closed when using a motorized tool. When using the hoeing blade it needs to be open. 3: Setting of the closing speed of the GS-GE. SAFETY MEASURES Before working Check the stratification, the ground type to work out the method of work, the adjustment and the speed of the machine. - Page 21 Never use petrol, solvents or other inflammable liquids as detergents but use recommended non- flammable and non-toxic commercial detergents to clean the machine. While using compressed air to clean and/or dry machine parts protect your eyes with goggles and limit the pressure. Keep the machine clean and in order.
-
Page 22: Transport Hoisting Movement
PERIODICALLY Check the state of the tools; check they are not broken if there are any breakage replace immediately, using the appropriate gloves for the job. We recommend using the supplier’s replacement parts available from our company or authorized retailers. Check the legibility of all adhesives and of the nameplates and, if need be, replace them with new ones. -
Page 23: Spare Parts
UNISTALLATION OF MACHINE Dismount the machine from the tractor and be careful to clean it well. Park the vehicle on a level surface and in a safe stable way. Store away from atmospheric agents (inside) and out of the reach of children. DESTRUCTION AND DISPOSAL OF MACHINE If you decide to destroy and dispose of the machine it’s recommended to render it inoperative by cutting the tubing, disassembling knives and breaking the hydraulic motor. -
Page 24: Conditions Of Guarantee
CONDITIONS OF GUARANTEE This machine is guaranteed for 12 months from the date of purchase. The guarantee covers the replacement of parts agreed as initially defective and for errant assembly operations. The guarantee doesn’t cover: breakage caused by negligence or non observance of the standards outlined in this manual. Use or maintenance carried out by untrained or unskilled persons.
