Summary of Contents for Richy RWH001-635I

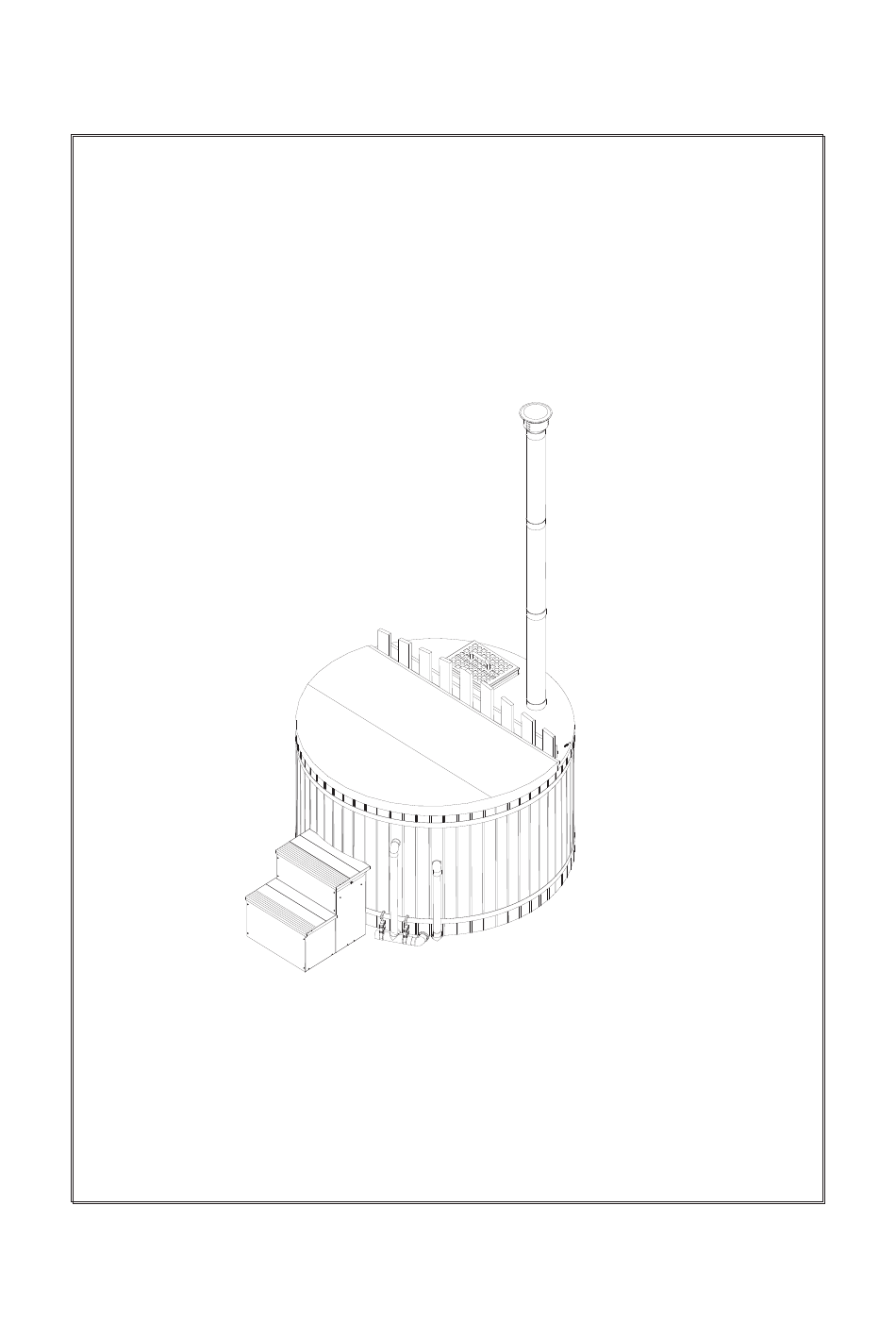

- Page 1 SPA HOT TUB Hot tub assembly instruction...
- Page 2 Instructions Before beginning assembly , carefully read the following information and instructions: ● Place all parts in a cleared area and remove the packing materials from the box, do not dispose of the packing material until assembly is completed. ● Assembly requireds 1 to 2 people, for 2 to 4 hours.
- Page 3 All parts S crew ist for the hot tub with fence Model / Screw numbers Component Screw size Unit 5x3 5x3 5 6x3 5 7x3 5 M8x100 Base Connector M12x180 Bands M12x250 Bench top M6x75 Bench feet M5x60 ST6X35 fire box M3x16 Fence hinge Lower fence connector...
- Page 4 The model of the hot tub showed in the diagrams of this instruction for reference: 6x3.5 (with fence) 1 Upper fence 2 fire box cover 3fire box 4 lower fence 5 Insulation cover ； - ； ； - ； - ；...
- Page 5 Step one- Assemble the base 1. Place the two base halves upside down and interlock together. Hint: If having trouble interlocking the 2 base halves together, make sure that one end is interlocked together and bolt this end together through the bottom fastening piece as shown.
- Page 6 Step 2. Assemble the tub wall & fit the bands Hint: Unwrap and place the firebox onto the centre of the base before building the hot tub wall. This saves having to lift the heavy firebox over the hot tub wall later on. 1.
- Page 7 • Slowly tighten the band making sure that it is level all the way around and in line or just above the point where the tub base fits into each stave. 6. • Place the remaining bands around the hot tub making sure that the top band is approximately 20-30cm from the top of the wall and the centre band is equal distance between the top and bottom bands.
- Page 8 Step 3. Assemble the firebox and lower fence • Carefully unpack the firebox and all the accessories from it's box and lift into the hot tub if you already have not done this. • Before screwing down the firebox, make sure you have it in the correct position. Hint: Use the firebox wooden cover to determine the correct position of the fire box.
- Page 9 PARTS: TOOLS: Component Screw size Lower fence M5x30 connector Lower fence M3x16 hinge Fire box ST6x35 1 ST6x35 2 fire box ； 3 M5x30 ； 4 lower fence left （ ） ； lower fence middle （ ） ； 6 lower fence right （...
- Page 10 Step 4. Assemble the bench seating 1. • Assemble the seats to the bench feet pieces making sure the 2 screw holes on the bench feet are at the front and that the seat is correctly positioned as shown in the diagram below.
- Page 11 Step 5. Assemble the stair 1. • Assemble the stair as shown in the diagram below. • In the photos shown below, to get the correct position and to keep the steps square, lay flat on level ground then screw in the screws. PARTS: Component Screw size...
- Page 12 Step 6. Assemble the fire box cover and upper fence • Assemble the fire box cover as shown in the diagram below. • Put the upper fence on top of the cover, then insert the M5 X 50 screws. PARTS: Component Screw size upper fence fitting...
- Page 13 How to use the Firebox? • Using the supplied ash scoop, empty any excessive amounts of ash by simply lifting up the hinge-mounted fire grate at the bottom of the fire box. Also make sure that there are no blockages in the air intake. •...
- Page 14 ■Wiring Diagram 2 2 0 V - 2 4 0 V / 5 0 H Z L e a k a g e P r o t e c t o r G r ound W ire A i r S w itc h A i r S w i t c h...
-
Page 15: Cleaning And Maintenance
Cleaning and Maintenance... -
Page 16: Frequently Asked Questions
Frequently asked questions 1. How long does it take to get the water up to temperature? Heating the water up to around 40C takes on average 1.5 – 2 hours (gas or wood-fired). When covered with the supplied lockable heat retention cover, the water remains hot overnight with no additional heating required to enjoy your hot tub the next morning. - Page 17 8. Can I use other fuels other than wood? No. Only dry wood can be used. 9. Will the wood shrink in a dry summer if the tub isn’t used? Yes, if left empty and without a cover on. We recommend (after draining and cleaning) that you refill the tub with about 20cm of water.
