Titan Bulldog Quick Start Manual

T Bulldog
ITAN
Thank you for purchasing the Titan Bulldog
Wheel Chock. The Titan Bulldog is designed
for wheels from 13" to 22" in diameter and
tire width from 70mm to 140mm. Please
read through this manual before you use this
product so that you comply with all safety
and service precautions. With proper use,
we hope this high quality product provides
you with years of dependable service.
Notification:
All illustrations and specifications contained
within this manual are based on the latest
product information available at the time of
printing. Titan Lifts reserves the right to make
changes at any time, without notice, in color,
materials, equipment, options, specifications
and models.
FOLLOW THIS MANUAL CAREFULLY TO ENSURE THE PRODUCT WILL FUNCTION
CORRECTLY AND PROVIDE MANY YEARS OF DEPENDABLE SERVICE. FAILURE TO FOLLOW
THESE INSTRUCTIONS AND SAFETY WARNINGS MAY RESULT IN PERSONAL INJURY OR PROPERTY
DAMAGE. MAY NOT BE SUITABLE FOR SOME CUSTOM WHEEL AND FENDER COMBINATIONS.
Assembly:
• Bolt the front post down to the base using
®
(4) of the 14mm fasteners. - Fig.2
• Using the adjustment pin, attatch the tire
stop on the front post. - Fig.3
• Bolt the cradle to the base using (4) of the
14mm fasteners. - Fig.4
• Lubricate the pivot points of the cradle
before use. - Fig.5

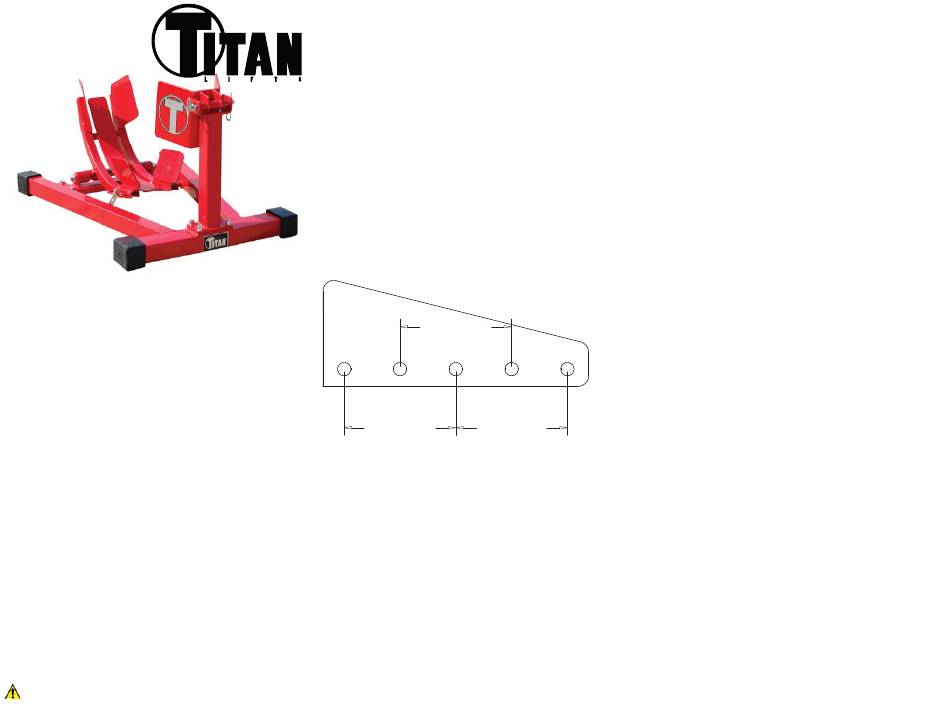

Suggested Adjustments: - Fig. 1
13" - 16" Diameter – Position 1
17" - 19" Diameter – Position 2
20" - 22" Diameter – Position 3
™
Patent Pending
Position 3
Before Use:
• Make sure the Titan Bulldog is properly
adjusted to the size of your tire.
• Check that the cradle is properly lubricated
so it rolls freely & smoothly.
• Check that all fasteners are installed and
tightened.
Towing:
Always make sure equipment is securely
mounted to your truck / trailer. (Fig. 1) Tie
downs must be used while trailering a
vehicle. Never tow a vehicle without making
sure that it is strapped down and secure.
Position 2
Fig. 1
Position 1
Operation:
• Make sure the Titan Bulldog is properly
adjusted to the size of your tire.
• Ride or push the vehicle into the stand.
Keep the tire in the center of the cradle.
The cradle will clamp the front tire as it rolls
forward and hold the vehicle against the
front tire stop.
• Once the vehicle is in place, apply the
safety latch to keep the cradle in position.
• To release, remove the safety latch and
make sure your vehicle is in neutral. Give
the vehicle a firm rearward pull to release it
from the chock.
Maintenance:
Check and lubricate prior to each use.
Lubricate the pivot rod with a light coat of
grease or oil to maintain a smooth action.
Lightly lubricate the pivot assemblies with
Lithium Grease or equilivant lubricant. Be
sure to keep grease and oil away from the
surfaces that contact the tires.
Two Year Limited Warranty:
The Titan product WC1500X Titan Bulldog has a
two-year limited warranty that is valid to the original
purchaser of the product starting on the purchase date.
Upon receiving your product, damaged or missing
components must be reported within 72 hours of receipt
to your freight carrier and to the distributor. This warranty
does not cover damage that results from negligent use
or use of the product that defers from the operating
instructions. Disassembling, repairing or altering this
product by any unauthorized persons will result in an
automatic termination of warranty. If any damage
occurs due to breach of this warranty, Titan Lifts will not
be held liable in any way. The Titan Bulldog two-year
limited warranty is for parts only with all freight charges
being covered by the consumer.
