VCR Retrofit to N401

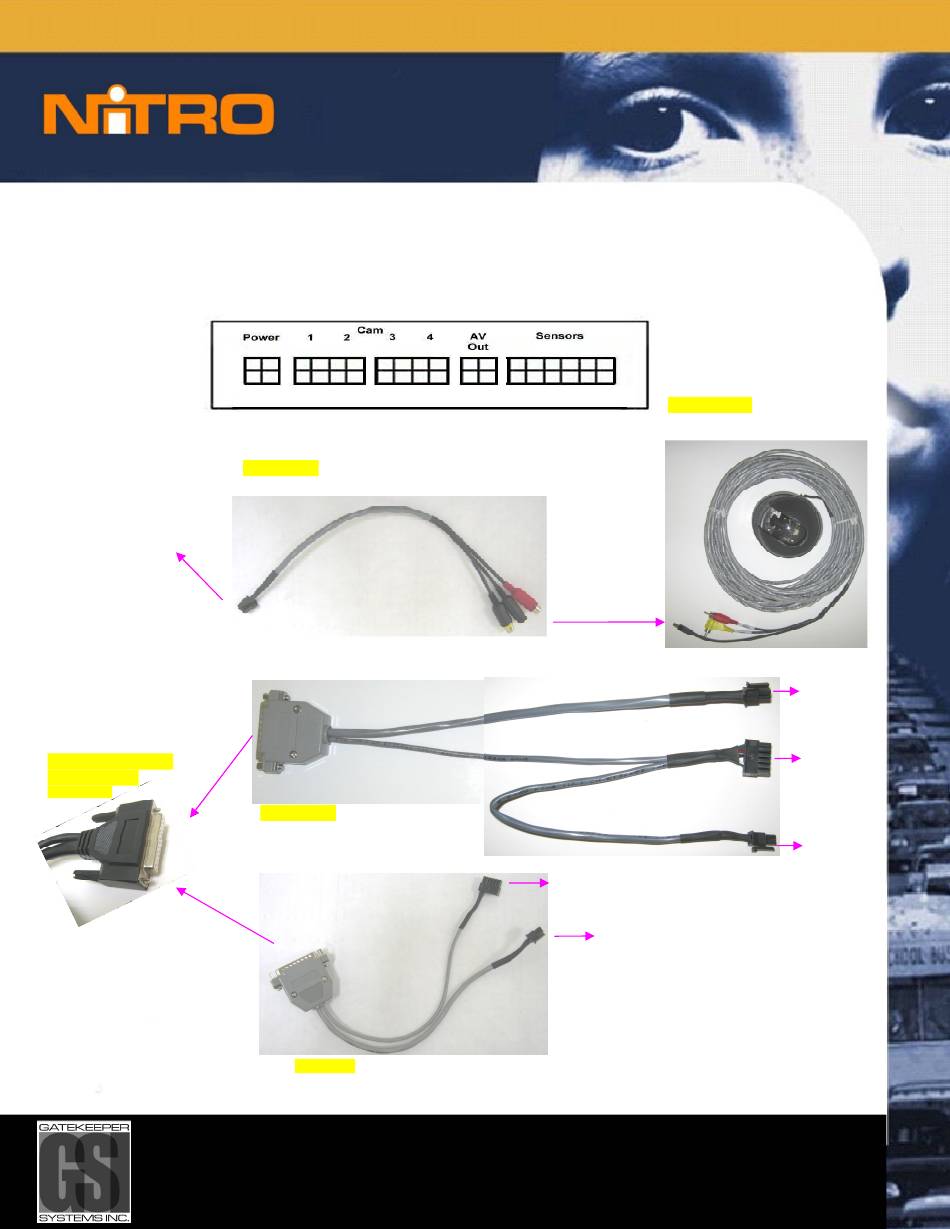

Refer to below pictorial instructions for setting up proper connections to retrofit your current Gatekeeper VCR to
TM
NiTRO
401 recorders with or without GPS Module :
To "Cam 1"
Connector
on N401
Existing VCR Power
Harness DB25
Connector
© Gatekeeper Systems Inc
#301 31127 WHEEL AVENUE
ABBOTSFORD. B.C. V2T 6H1
TOLL FREE: 1.888.666.4833
401/404
Rear View of NiTRO
CAB000212
(Composite Video Adaptor-1 Channel)
CAB000215
(Power Sensor/GPS to DB25)
CAB000214
(Power Sensor to DB25)
Specifications subject to change without notice.
TM
401
GSWHC2-XX
(existing Camera Harness)
To "Camera Harness"
To "Sensors" connector on N401
To "Power" connector on N401
Protecting Your
PDN1102
TEL: 1.604.864.6187
FAX: 1.604.864.8490
gatekeeper-systems.com
Installation Guide
To "Power"
connector
on N401
To
"Sensors"
connector
on N401
To "GPS"
connector
on N401
Precious Cargo
Jun 9, 2010
V2.0
Advertisement
Summary of Contents for Gatekeeper Systems NITRO 401
- Page 1 To “Sensors” connector on N401 To “Power” connector on N401 CAB000214 Protecting Your Precious Cargo (Power Sensor to DB25) © Gatekeeper Systems Inc Specifications subject to change without notice. PDN1102 Jun 9, 2010 V2.0 TEL: 1.604.864.6187 #301 31127 WHEEL AVENUE FAX: 1.604.864.8490...
- Page 2 Connect the provided 2 Ampere Fuse Assembly to the “Live” wire of the VCR power cable. Then reconnect the power cable to the battery. Protecting Your Precious Cargo © Gatekeeper Systems Inc Specifications subject to change without notice. PDN1102 Jun 9, 2010 V2.0...
