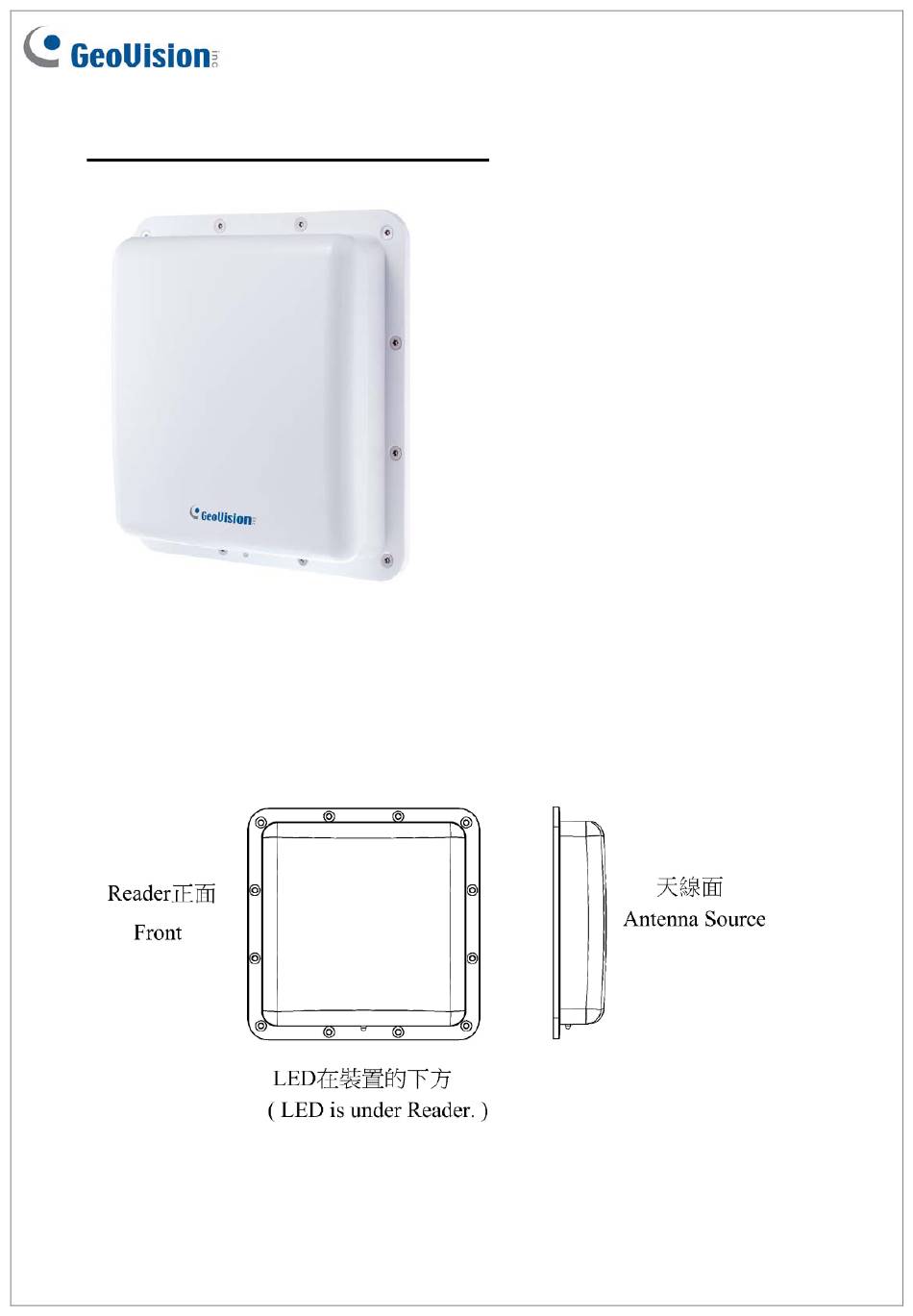

- Page 1 GV-RU9003 UHF RFID Reader Overview December 14, 2016...
- Page 2 Packing List 1. GV-RU9003 2. L-Bracket 3. Fixed-clamp 4. U-clip 5. Screws x 4 6. DC Jack Power Cable 7. Installation Guide 8. Warranty Card Note: If any of these items is found missing or damaged, please contact your local supplier for replacement.
- Page 3 標籤擺放與無線射頻辨識讀取器相對關係，如下圖所示 Install the RFID Reader and the Tag as shown below. 正 確 錯 誤 Correct Misplaced 無線射頻辨識讀取器架設位置 RFID Reader installation position 3.1 架設無線射頻辨識讀取器，請注意周圍環境不要有金屬物質，以免電磁波破 壞場型，影響讀取距離。 Do not install RFID Reader near mental or the metallic substance will affect the electromagnetic field type. 3.2 無線射頻辨識讀取器架設高度建議為...
- Page 4 3.3 無線射頻辨識讀取器架設角度建議為 15-20 度。依實際安裝現場修訂。 Recommended angle to set RFID reader is 15-20 degree. Adjust the angle according to the actual installation site. 3.4 無線射頻辨識讀取器與標籤之間的空間直線範圍內，不能有遮蔽物。 Keep any barrier away from the reading zone between RFID Reader and the Tag. 無線射頻辨識讀取器必須架設於與標籤位置同一側，或是與標籤最近距離。 The RFID Reader must be installed at same side of the Tag or at the nearest reading range to the Tag.
- Page 5 4.2 架設於側邊 Side Installation 正 確 架 設 不 當 架 設 Proper Improper 標籤建議置放位置 Recommended Tag Position 汽車： Vehicles 5.1 建議置放於前擋風玻璃或是車燈處，且靠近無線射頻辨識讀取器近側 Place the tag on the front windshield or headlight, at the nearest reading range to the reader. 5.2 置放車燈處標籤，切勿靠近金屬車體 When placing the Tag on the headlight, keep the Tag away from the metal body of the vehicle.
- Page 6 5.4 有些隔熱紙含金屬成分，會影響讀取距離，請改安置於車燈處 Windshield insulation films that contain metal ingredients will affect the reading range. To avoid such situation, install the Tag on the headlight. 機車： Motorcycles 5.5 建議置放於車體前斜板(前盾)處，且靠近無線射頻辨識讀取器近側 Install the Tag on the front shield and at the closest range to the RFID Reader. 5.6 如無前斜板，請考慮其他塑膠車體處，且靠近無線射頻辨識讀取器近側...
- Page 7 手會影響標籤讀取的效能，因此用手拿卡片式標籤，務必注意拿的方式 For card-type tags, hold the card as shown below to ensure reading results. 正確 Correct 錯誤 Misplaced 注意事項： Notice 7.1 建議架設完畢，最好能再重新環境參數調校一次，會有較佳的效果 When the installation is complete, examine and adjust the environment parameters again for better reading results. 7.2 雨天會縮短無線射頻辨識讀取器與標籤間的空間感測距離 Reading range between RFID Reader and the Tag will be shorten on rainy days.
