Summary of Contents for TMB ProPlex 6-Track

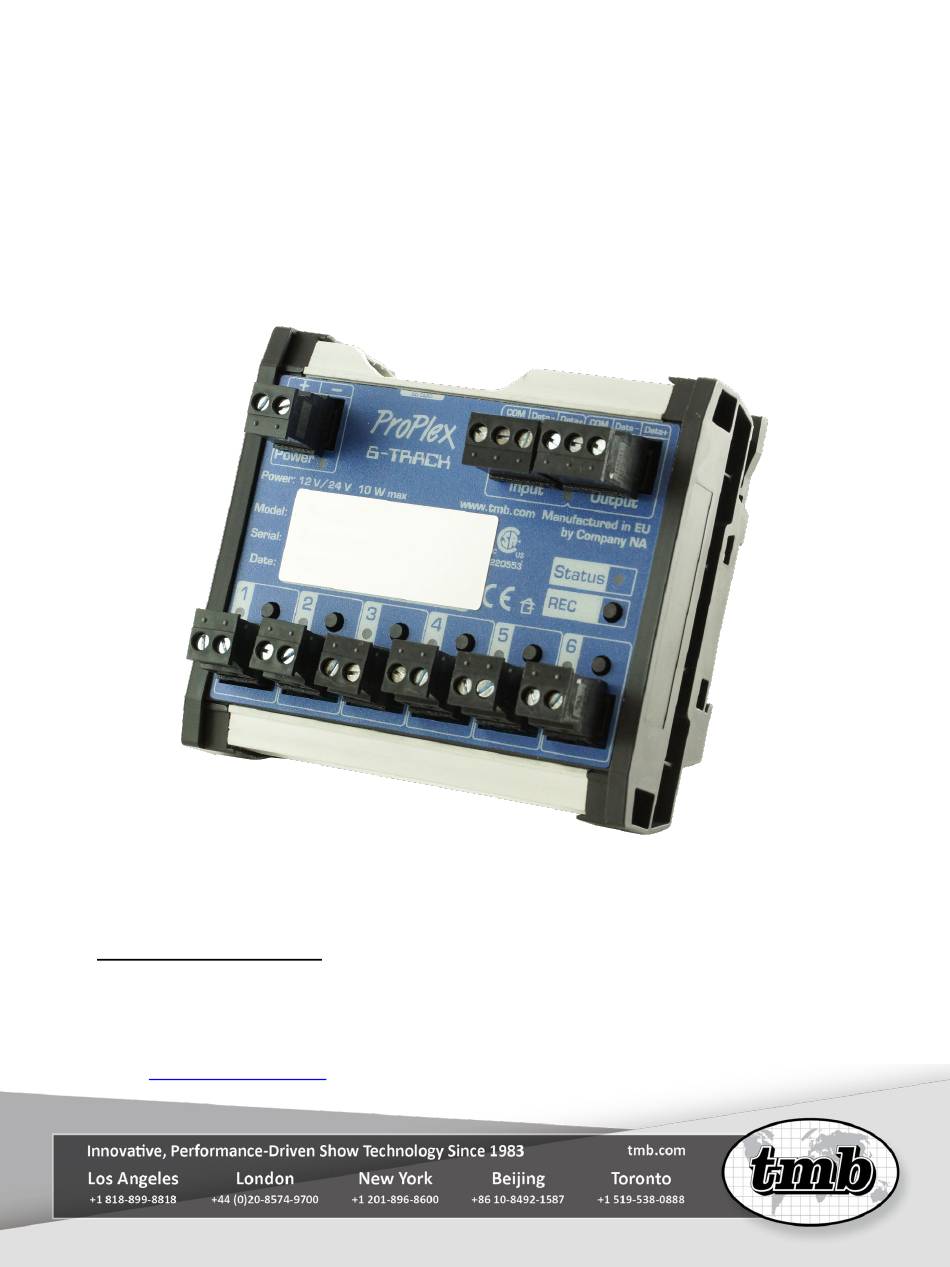

- Page 1 ProPlex DIN Rail 6-Track DMX Record/Playback and Backup Quick Start Guide TMB 24/7 Technical Support US/Canada: +1 818.794.1286 Toll Free: 1 877.862.3833 (877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 e-mail: techsupport@tmb.com...
-
Page 2: Specifications
Specifications Playback locations Contact closure inputs DMX input DMX output Data storage SD card Operating voltage 12/24 VDC Power consumption 10 W max. Connectors Phoenix MSTB Operating Temperature -20º - +40 ºC Dimensions (HxWxD) 1.55 x 4.1 x 3.6 in. (39.50 x 104 92.33 mm) Dimensions 4.1 (104) - Page 3 Overview SD Card Slot DMX Input/Output Power IN Recording Button Scene Buttons 1-6 External Scene Buttons 1-6 Setup ProPlex DIN Rail devices use a standard Phoenix MSTB screw terminal connector in various pin configurations. Please refer to the wiring diagrams below for correct hook up of your ProPlex DIN Rail product.
- Page 4 1. Connect the 24V DC power to the power input located in left top corner. The connector should be wired as depicted in the image below. 2. Connect the DMX signal input to the DMX input in the right top corner. The connector should be wired as depicted in the image below.
-
Page 5: Connection Scheme
Connection Scheme Power 12 V/24 V DMX-512 Signal OUT DMX-512 Signal IN... -
Page 6: Led Status Information
LED Status Information Power LED DMX Data LED Recording Status LED Scene Activity LED’s 1-6 The Power LED has two states: ON and OFF - Unit is receiving power. - Unit is not receiving power. DMX data LED has two states: Glowing red and flashing orange. No incoming DMX signal DMX is active *blinking... - Page 7 If the ProPlex 6-Track is receiving power, but none of the scene LEDs are illuminated, there are no scene files saved on the SD card.
-
Page 8: Led Error Indications
LED error indications If one of the LEDs glows pink (magenta) and remaining LEDs glow red, it indicates that: 1. There is no SD card inserted. 2. Write protection is active 3. File format saved on the SD card is not the correct file format. Multiple LED indicators 1. -
Page 9: Software Settings
Software settings There are default settings saved on the ProPlex 6-Track, which can be accessed through a computer with an SD card reader. To edit the default configuration settings: 1. Insert SD memory card into a card reader. 2. Find the directory in your computer for example: (VOL_ID) (D:) > 6-Track... - Page 10 2.1 Open the config.cfg file with Notepad or similar program. Configuration options are edited directly through the notepad document. If the desired setting needs to be changed, delete the current mode text and type the desired mode. For example, the 6-Track defaults to DMX-IN_MODE=MERGE To change to DMX-in triggering, simply delete the word MERGE and type the word TRIGGER in its place The line would read DMX-IN_MODE-TRIGGER if entered correctly.
- Page 11 Configuration DMX-IN mode (MERGE/TRIGGER) • Merge mode – DMX input data is merged (HTP) With active scenes. • Trigger mode – For triggering recorded scenes. Note! Record scenes only in merge modes; 6-Track will not record in trigger mode. DMX-IN priority (this applies only to merge mode) •...
- Page 12 Scene copying It is possible to copy over, delete, or copy new scene files. ProPlex 6-Track makes a default directory called (data) for saving scenes.
- Page 13 Note! This is the default directory for ProPlex 6-Track in which device looks for scene files. If files are moved to another directory, device will not find them. When copying new files on to default directory, it is important to maintain the name unchanged and point out extension (sta) for static scenes and (dyn) for dynamic scenes.
