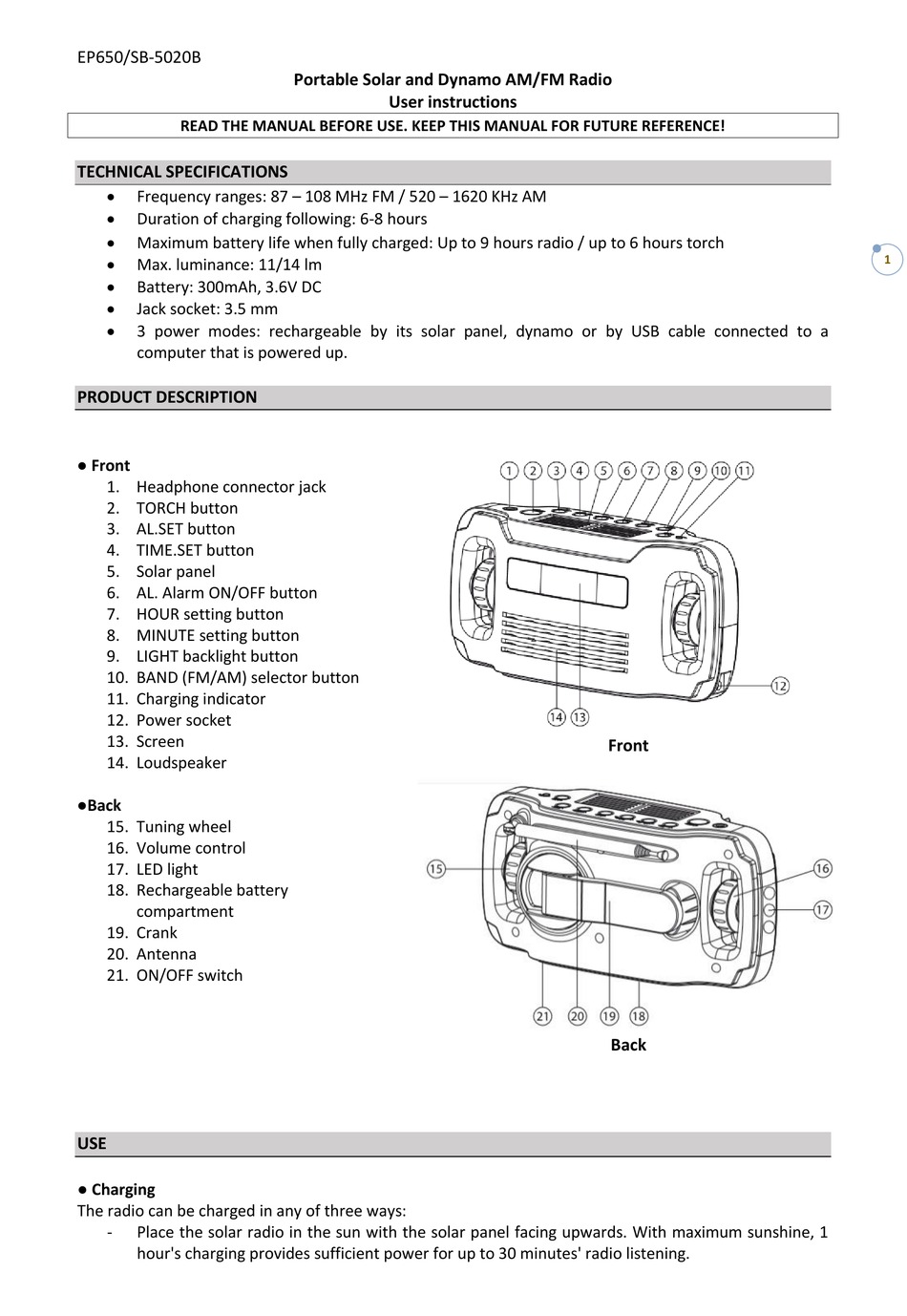

EP650/SB-5020B
READ THE MANUAL BEFORE USE. KEEP THIS MANUAL FOR FUTURE REFERENCE!
TECHNICAL SPECIFICATIONS
Frequency ranges: 87 – 108 MHz FM / 520 – 1620 KHz AM
Duration of charging following: 6-8 hours
Maximum battery life when fully charged: Up to 9 hours radio / up to 6 hours torch
Max. luminance: 11/14 lm
Battery: 300mAh, 3.6V DC
Jack socket: 3.5 mm
3 power modes: rechargeable by its solar panel, dynamo or by USB cable connected to a
computer that is powered up.
PRODUCT DESCRIPTION
● Front
1. Headphone connector jack
2. TORCH button
3. AL.SET button
4. TIME.SET button
5. Solar panel
6. AL. Alarm ON/OFF button
7. HOUR setting button
8. MINUTE setting button
9. LIGHT backlight button
10. BAND (FM/AM) selector button
11. Charging indicator
12. Power socket
13. Screen
14. Loudspeaker
●Back
15. Tuning wheel
16. Volume control
17. LED light
18. Rechargeable battery
compartment
19. Crank
20. Antenna
21. ON/OFF switch
USE
● Charging
The radio can be charged in any of three ways:
-
Place the solar radio in the sun with the solar panel facing upwards. With maximum sunshine, 1
hour's charging provides sufficient power for up to 30 minutes' radio listening.
Portable Solar and Dynamo AM/FM Radio
User instructions
Front
Back
1
