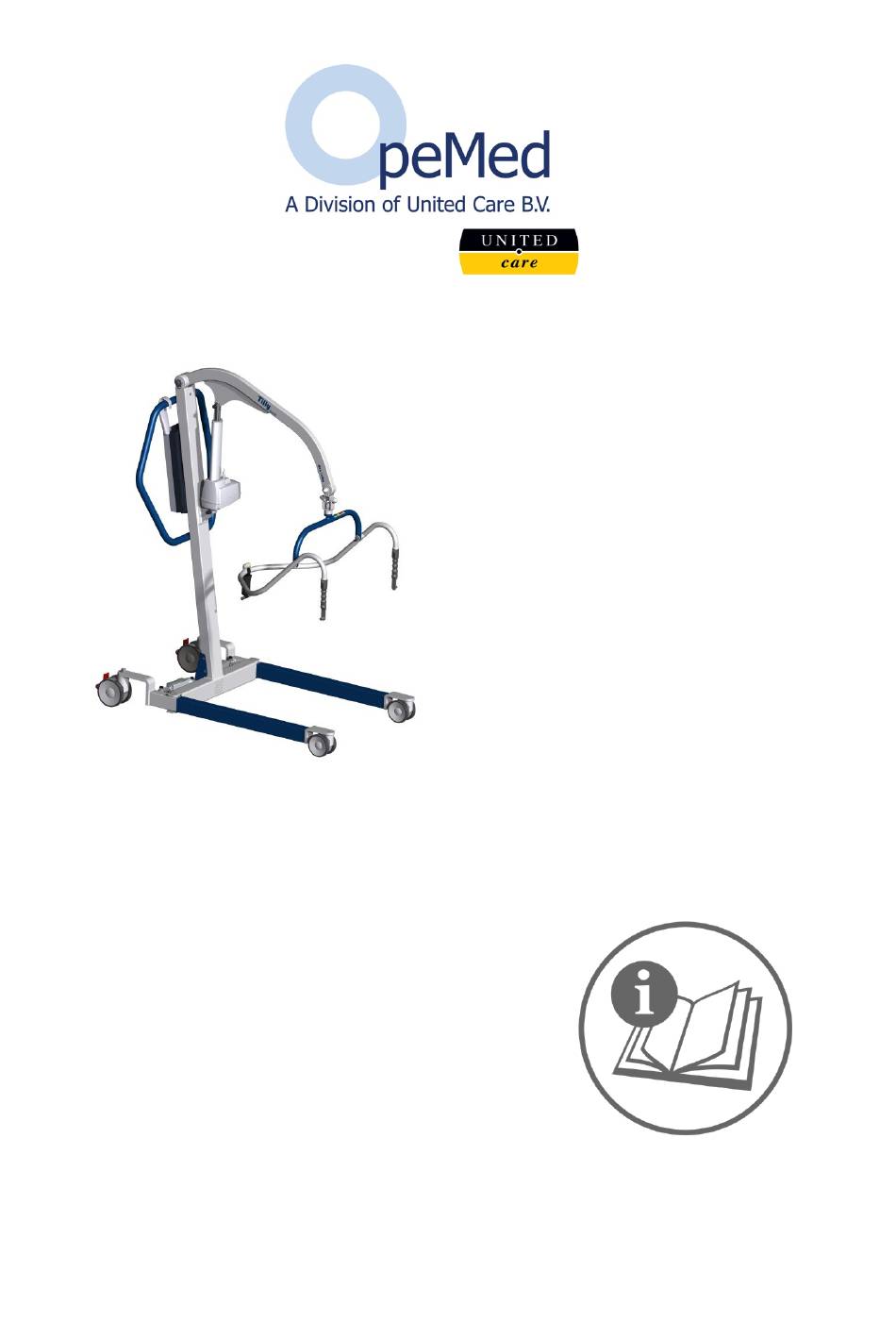

- Page 1 Introduction Description Usage Maintenance Annual inspection Spare parts list Warranty conditions OpeMax Lite...
-
Page 3: Table Of Contents
Table of contents Introduction This manual ................. 2 Symbols used ................2 Package contents ................ 2 The OpeMax Lite hoist ..............2 Points of attention ................ 3 Description Technical data ................4 Overview OpeMax Lite ..............4 Manual operation ................. 5 Control box ................... -
Page 4: Introduction
1 Introduction This manual The OpeMax Lite hoist The purpose of this manual is to enable healthcare providers to operate and maintain the OpeMax Lite. The OpeMax Lite is a mobile floor hoist intended to provide a passive transfer for people who live at home This manual deals with the following aspects: and need care. -
Page 5: Points Of Attention
1 Introduction Points of attention Service and maintenance of the hoist is only permitted by Handle the hoist with care and ensure a clean and tidy persons who are demonstrably qualified to do so. working environment. Replacing spreader bars or other structural parts of The OpeMax Lite is designed to hoist and move users in the hoist is only permitted by demonstrably combination with a suitable sling and as such may only... -
Page 6: Description
Description Technical data Specifications OpeMax Lite Total weight 45kg Hoisting capacity 160kg Sound pressure Load hoisting 48dB Load legs 52dB Electrical parts specifications Hoist motor 24Vdc, 8,4Amax , IPX4, 8kN, 10% switch on time Leg spread motor 24Vdc, 2,3Amax, IPX4, 10% switch on time Overview OpeMax Lite (2x) Control box... -
Page 7: Manual Operation
2.4.1 Emergency stop 2 Description By pressing the red emergency stop button (figure 2), Manual operation the hoist immediately stops moving. The hoisting of the emergency stop can be done by The OpeMax Lite can be operated with the hand control turning the knob. -
Page 8: 2.5.1 Charging The Battery
2 Description 2.5.1 Charging the battery 2.6 Lifting motor Batteries are charged with the internal battery charger in the control box. The motor is a strong and robust motor with a very low noise level. It is equipped with a ballscrew spindle and To know if the battery needs to be recharged, a battery electric splines. -
Page 9: Spreader Bar
2 Description Spreader bar 2.10 Slings The OpeMax Lite is equipped with a spreader bar. The spreader bar is a construction to which the sling 2.10.1 General information on slings is attached in which the user sits. The spreader bar is connected to the hoisting arm by means of a When hoisting, the user is seated in a hammock shaped coupling (cardan shaft). -
Page 10: Attaching Clips
2 Description 2.10.3 Washing instruction slings 2.10.2 Clips for mounting It is important that the sling is in good condition. The Please read these instructions carefully before using the condition of a sling is partly determined by the way it is sling. -
Page 11: Usage
3 Usage Commissioning Check the OpeMax Lite before use at the following points: • Then apply the other leg slip in the same way. • Check that the battery is sufficiently charged. • If necessary, pull up the top of the sling to the Switch the hoist on by turning the emergency •... -
Page 12: Installing The Sling In A Horizontal Position
3 Usage 3.2.3 Installing the sling horizontally Hoisting with the OpeMax Lite The self-balancing cradle can be placed slightly horizontally • Fold the sling lengthwise by half a couple of beforehand if you have to start hoisting from a lying position times. -
Page 13: Hoisting To The Toilet
3 Usage Removing the user from the OpeMax Lite 3.3.1 Hoisting to the toilet Hoisting to a bed / chair • Before placing the user on the toilet, lower the Move the user to the final intended position (lying or user's trousers to the hollow of the knee, and do sitting). -
Page 14: Maintenance
Maintenance 4.1.3 ½ Annual maintenance Maintenance planning The table below gives an overview of the maintenance The OpeMax Lite is constructed in such a way that that the technical service can perform on the OpeMax maintenance can be kept to a minimum. It is Lite every six months. -
Page 15: Troubleshooting
4 Maintenance Troubleshooting The hoist may only be serviced and maintained by authorised persons. Complaint Possible cause Action Hoist does not work Battery fault or not inserted. Plug the manual control unit into the Insert the plug into the control box. control box incorrectly. -
Page 16: Opemax Lite Spare Parts Lists
4 Maintenance Spare parts list OpeMax Lite Spare parts list with electric leg spreaders Pos Name Art.nr. Pos Name Art.nr. Hoisting motor La43, 250mm Cardan 11101510 11202040 Foot spread motor La23, 30mm Hex bolt M10x60 11101440 11100300 Control box Locknut M10 11101500 11100250 Battery Pb... - Page 17 Maintenance 4.3 Spare parts list Parts list self-balancing cradle Pos Name Art.nr. Pos Name Art.nr. Protective foam Crown nut M12 32200790 32101550 Double clip hook Hex bolt M10x60 32300170 11100300 Protective rubber Cardan bushing L=36mm 32201400 32201750 Sticker "colour code" Shaft lock ring 6mm 32106920 32101740...
- Page 18 Maintenance Spare parts list Two-point spare parts list Spreader bar Pos Name Art.nr. Pos Name Art.nr. Washer Pressure spring 11101410 32106580 Low head screw Mounting disk 32106600 32106570 Distance bush Spreader bar cover 32106560 32106890 * Threadlocker 11101110 REF0315 March-2015...
-
Page 19: Types Of Slings For Different Applications
Maintenance Types of slings for different applications Type of sling Artnr Remarks Personal band Brown 30100021 The user can sit comfortably on this strap all day long. polyester 30100022 This is possible because personal bands absorb sufficient 4 clips Yellow 30100023 moisture. -
Page 20: Guarantee Provisions
Blue 30101925 Colour ribbon Body length Slim build Average build Big build Brown <125 cm XXS - XS 125 - 145 cm XS - S Yellow 145 - 165 cm S - M Green 165 - 185 cm M - L Blue >... -
Page 21: Appendix
Appendix To this end, OpeMed supplies the following products/services: • Hoists Building Hoists • • Bed Hoists • Ceiling hoists • High-low baths • Beds Po and shower chairs • • Shower Stretchers • Beds • Other transfers • Transfer accessories Training and advice •... -
Page 22: Ec Declaration Of Conformity
Appendix EC Declaration of conformity United Care Products BV Bremenweg 5 9723 TC Groningen Nederland Declare under their own responsibility that the: ‘OpeMax Lite’ hoist and associated tilting cradle spreader bar to which this declaration refers and which falls under Class I of the European Medical Devices Directive, is in accordance with the provisions of the following directive:...
