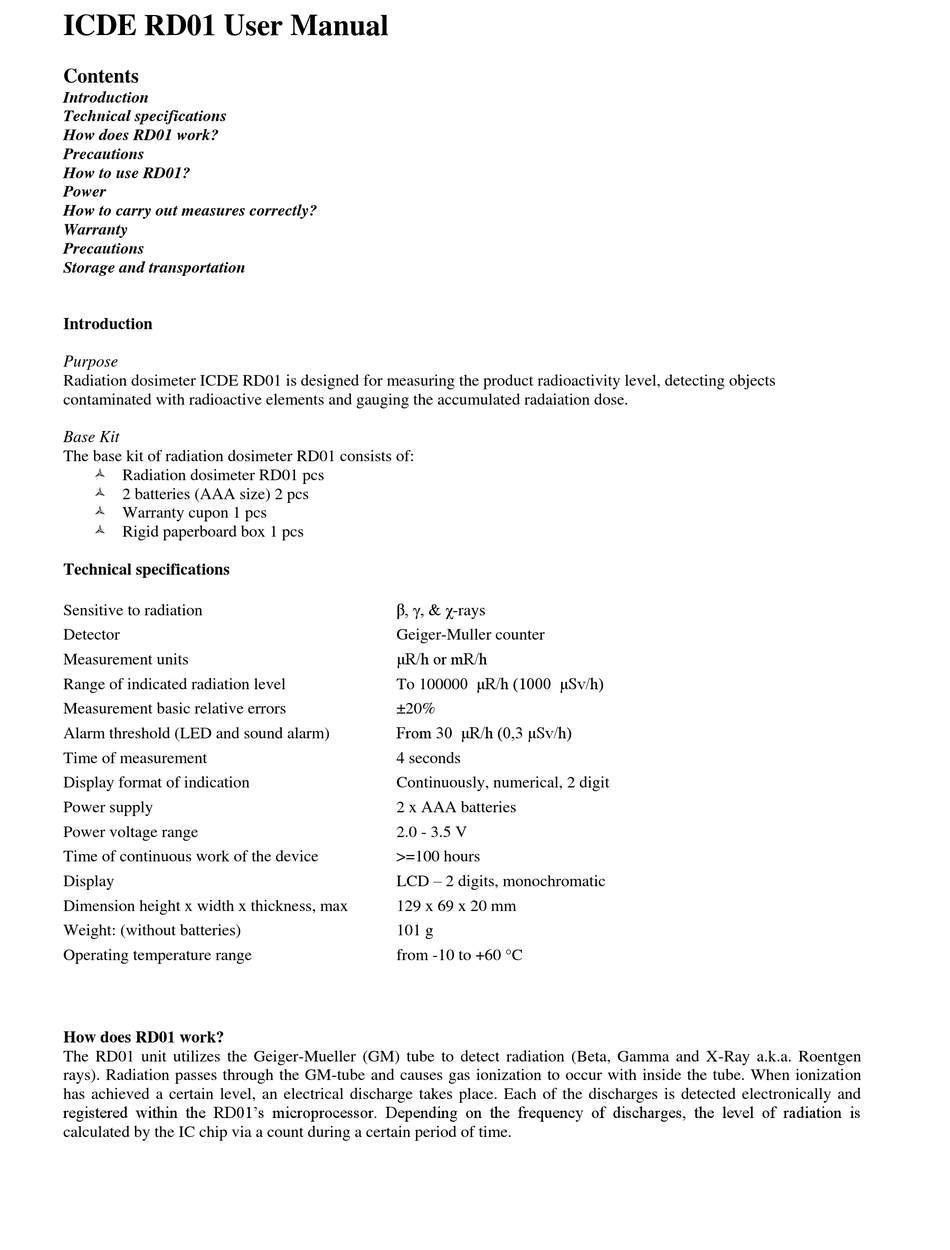

ICDE RD01 User Manual
Contents
Introduction
Technical specifications
How does RD01 work?
Precautions
How to use RD01?
Power
How to carry out measures correctly?
Warranty
Precautions
Storage and transportation
Introduction
Purpose
Radiation dosimeter ICDE RD01 is designed for measuring the product radioactivity level, detecting objects
contaminated with radioactive elements and gauging the accumulated radaiation dose.
Base Kit
The base kit of radiation dosimeter RD01 consists of:
 Radiation dosimeter RD01 pcs
 2 batteries (AAA size) 2 pcs
 Warranty cupon 1 pcs
 Rigid paperboard box 1 pcs
Technical specifications
Sensitive to radiation
Detector
Measurement units
Range of indicated radiation level
Measurement basic relative errors
Alarm threshold (LED and sound alarm)
Time of measurement
Display format of indication
Power supply
Power voltage range
Time of continuous work of the device
Display
Dimension height x width x thickness, max
Weight: (without batteries)
Operating temperature range
How does RD01 work?
The RD01 unit utilizes the Geiger-Mueller (GM) tube to detect radiation (Beta, Gamma and X-Ray a.k.a. Roentgen
rays). Radiation passes through the GM-tube and causes gas ionization to occur with inside the tube. When ionization
has achieved a certain level, an electrical discharge takes place. Each of the discharges is detected electronically and
registered within the RD01's microprocessor. Depending on the frequency of discharges, the level of radiation is
calculated by the IC chip via a count during a certain period of time.
β, γ, & χ-rays
Geiger-Muller counter
μR/h or mR/h
To 100000 μR/h (1000 μSv/h)
±20%
From 30 μR/h (0,3 μSv/h)
4 seconds
Continuously, numerical, 2 digit
2 x AAA batteries
2.0 - 3.5 V
>=100 hours
LCD – 2 digits, monochromatic
129 x 69 x 20 mm
101 g
from -10 to +60 °C
