PureLink PureTools PT-CON-WP8B User Manual

Control programmable
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

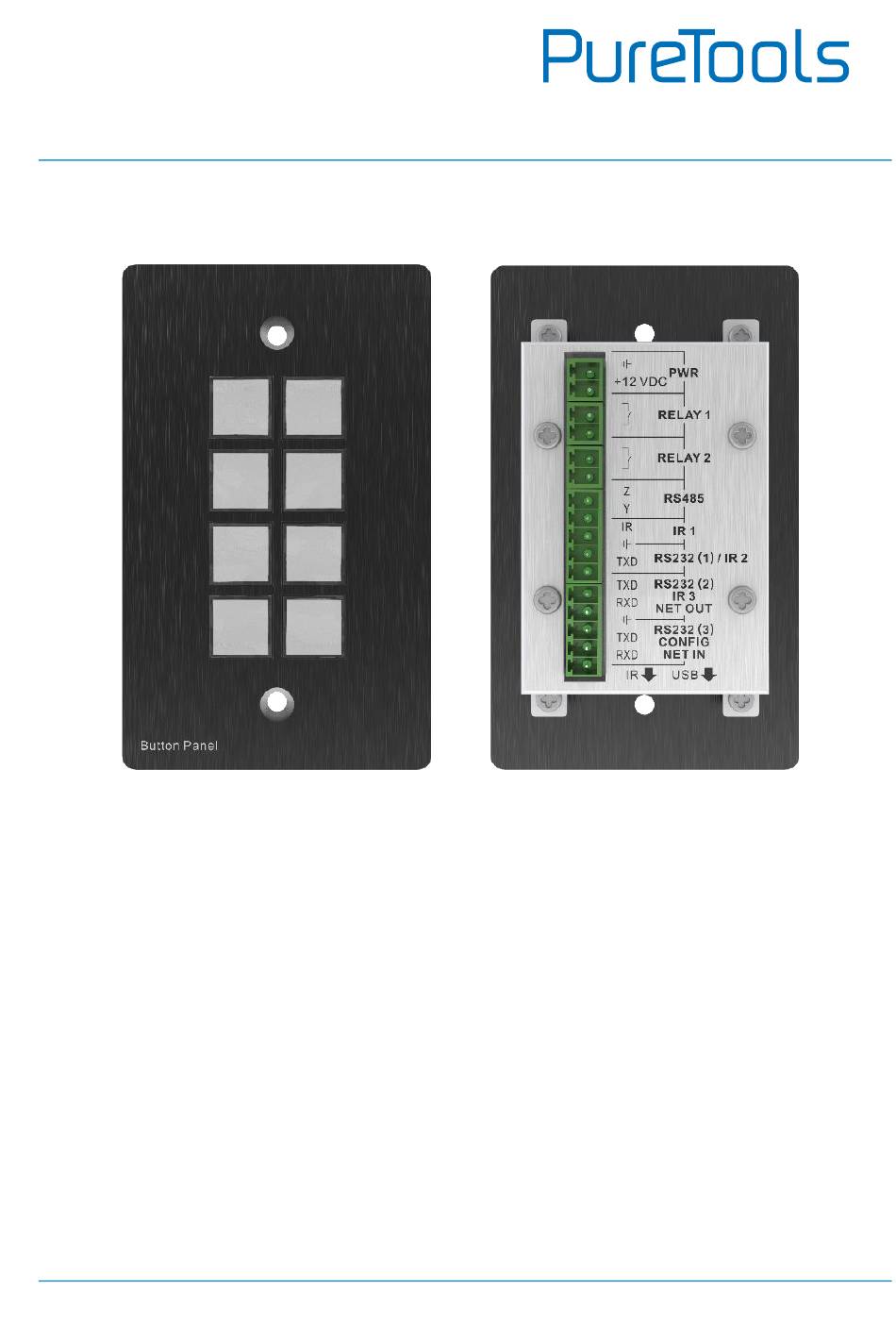

User Manual
PT-CON-WP8B
User Manual
Control Programmable Control Panel
Model PT-CON-WP8B
Designed in Germany
© 2018 PureLink GmbH All rights reserved.
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PureTools PT-CON-WP8B and is the answer not in the manual?

Questions and answers

Summary of Contents for PureLink PureTools PT-CON-WP8B

  • Page 1 User Manual PT-CON-WP8B User Manual Control Programmable Control Panel Model PT-CON-WP8B Designed in Germany © 2018 PureLink GmbH All rights reserved. V1.0...
  • Page 2 Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-CON-WP8B complies with Directives 1907/2006/EU and 2011/65/EU.
  • Page 3 EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-CON-WP8B complies with Directives 2014/30/EU and 2014/35/EU. The full text of the EU Declaration of Conformity is available at the following Internet address:...
  • Page 4 User Manual PT-CON-WP8B SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing  material for possible future shipment. Follow basic safety precautions to reduce the risk of fire, electrical shock and ...

  • Page 5: Table Of Contents

    User Manual PT-CON-WP8B Table of Contents 1. Product Introduction ........................1 1.1 Features ..........................1 1.2 Package List ........................2 1.3 Installation ......................... 2 2. Panel Description ........................3 2.1 Front Panel ......................... 3 2.2 Side Panel ........................... 4 2.3 Rear Panel........................... 5 3.

  • Page 6: Product Introduction

    User Manual PT-CON-WP8B 1. Product Introduction The programmable control panel is a Wall Control Panel. Every button is programmable and works either individually or together. The programmable control panel is built in the programmable 3 RS232, 1 RS485, 3 Infrared & 2 Relay, and 1 mini USB for programming.

  • Page 7: Package List

    User Manual PT-CON-WP8B 1.2 Package List 1 x Programmable Control Panel 1 x Power Adapter (12V DC)   3 x 2-pin Captive Screw Connector 2 x IR Emitter   8 x Button Caps 1 x Button Label  ...

  • Page 8: Panel Description

    User Manual PT-CON-WP8B 2. Panel Description 2.1 Front Panel Crystal and luminescent, programmable buttons: Every button can be programmable with the software PS-WP. Connect the PC via USB or RS232. And every label inside the button can be changeable. You can choose the label you need and change it very easily like below: (For the specific transparent paper table, please contact the local distributor or reseller for it)

  • Page 9: Side Panel

    User Manual PT-CON-WP8B 2.2 Side Panel Mini USB Connector: Communicate with PC which uses PS-WP to program the buttons. Transmit the infrared data when learning IR (Optional). Infrared sensor port: receive and learn the IR code, to build the IR database.

  • Page 10: Rear Panel

    User Manual PT-CON-WP8B 2.3 Rear Panel ④ ① ③ ② The programmable control panel has various ports in the rear panel, including Lopping port, RS232 port, RS485 port, IR port, Relay port and Power port. Below is the introduction: ① Power connector: 12VDC. Be sure that the “+” and “-” never be mixed or wrong connection.
  • Page 11 User Manual PT-CON-WP8B ④ This port includes two parts: One part is RS232 (2)/IR3, it can be used for control other devices or looping  output. RS232 (2) and IR3 share the same port, the detailed use depends on the setting of PS-WP. ...

  • Page 12: System Connection

    User Manual PT-CON-WP8B 3. System Connection 3.1 System Diagram The programmable control panel can active different ports at one time. It means every button can send the RS232 and RS485 commands, IR code and control the relay at the same time. The demo system diagram as below:...

  • Page 13: Connection Of Programming And Looping

    User Manual PT-CON-WP8B 3.2 Connection of Programming and Looping The programmable control panel can be connected to the computer for programming, to default the functions of every button. It can be connected by USB or RS232, working with the PS-WP software. It is shown as below: Programming Connection Several pieces programmable control panels can be also looped to be a system, for control more devices.
  • Page 14 User Manual PT-CON-WP8B Several programmable control panels Looping connecting After connect the programmable control panels as above, and then we should set the ID of each programmable control panel by PS-WP. The ID number is from 01 to 99, and it also is the class of the programmable control panel in the loop, different programmable control panels should set to different ID.

  • Page 15: System Operation

    User Manual PT-CON-WP8B 4. System Operation 4.1 USB Driver Installation There are USB driver file and PS-WP software in the disk. The PS-WP can run directly without installation. But when connect the programmable control panel with PC by USB, it may need to install the USB driver.
  • Page 16 User Manual PT-CON-WP8B We will introduce all the configurations one by one.

  • Page 17: Main Menu

    User Manual PT-CON-WP8B 4.2.1 Main Menu The main menu includes file management, system model, connection type and help. 1) File management: Open/Save/Save as a configuration. After program, user can save the configuration to a file, so that you can use the same configuration next time.
  • Page 18 User Manual PT-CON-WP8B Note: When select the model, it will pop up “Output Port Selection” dialog, user can select different RS and IR types, depend on the uses of the two shared ports. The dialog is as the picture below:...
  • Page 19 User Manual PT-CON-WP8B The output port set in PS-WP and the port used in the programmable control panel is corresponding. And there are four output types. They are showed as below form (“√” means port is available): Output port of the Panel Output mode of PS-WP...

  • Page 20: Panel/Key Setting

    User Manual PT-CON-WP8B 4.2.2 Panel/Key Setting There are three different colors of keys in the panel set of PS-WP. Add a key action to action list, then add events to this action, make this action will execute the events. Here take programmable control panels-V for example, to introduce the uses of different buttons:...
  • Page 21 User Manual PT-CON-WP8B 1) White keys: keys 1-8, correspond to the buttons on the programmable control panel. Click the key, it will pop up dialog as below: Key Action Type： 1) Press: Execute events when press button. 2) Release: Execute events when release button.
  • Page 22 User Manual PT-CON-WP8B When select the type “Toggle”, the setting interface is as below: The toggle class is the action loop class, depends on the numbers of looped actions. When the class is 2, there are two actions in the toggle. And so on.
  • Page 23 User Manual PT-CON-WP8B 2) Blue Keys: Keys 9-32, all are virtual keys, used in the loop function. When use the loop function, the ID must be set, the ID can be 1 to 99. Press “add” will add the button to action list. 3) Yellow Keys: Keys 33-36, all are virtual keys.

  • Page 24: Action List

    User Manual PT-CON-WP8B 4.2.3 Action List Action list shows all the set actions. An available action must be added to the list. The action list is as the picture below: Delete all actions. Delete a Refresh, delete all the actions selected action.

  • Page 25: Event Setting

    User Manual PT-CON-WP8B 4.2.4 Event Setting Event setting includes RS232, IR, I/O, Relay, Delay, Compare, LED, Page, Loop and Toggle setting. Before set events, an action must be added first. The following introduction will show you the setting of each event: ...
  • Page 26 User Manual PT-CON-WP8B 1) The data of RS232 can be directly entered or selected from library. Click “Change Lib” to select a library file and open it. Click “Edit Lib” to create or edit a library file as below: Create/open a library Create/delete the function name of the command Enter the serial command for device control.
  • Page 27 User Manual PT-CON-WP8B 2) There are two send types: send once and send more times. When select “more times”, the send times and the delay between times can be set. See in picture below: 3) The send port must be selected as the same as model setting, otherwise the event cannot be added.
  • Page 28 User Manual PT-CON-WP8B  IR Setting This item is used for setting the parameters of the programmable control panel’s IR ports. Click “IR”, it will show as below:...
  • Page 29 User Manual PT-CON-WP8B 1) The data of IR need to be selected from library. Click “Change Lib” to select a library file and open it. Click “Edit Lib” to create or edit a library file as below: Create/open a library Create/delete/rename the function name of the IR data...
  • Page 30 User Manual PT-CON-WP8B 2) There are two send types: send once and send more times. When select “more times”, the send times and the delay between times can be set. See in picture below: 3) The send port must be selected as the same as model setting, otherwise the event cannot be added.
  • Page 31 User Manual PT-CON-WP8B  I/O Setting There is no I/O port in the programmable control panel, so the setting is not introduced in this manual.  Relay Setting This item is for the replay ports setting. The setting is as the picture below: Send Port Action: “On”...
  • Page 32 User Manual PT-CON-WP8B  Delay Setting This item is to set a delay time, user can add a delay between two events; so when one event is finished, it will delay a certain time then start another event. The delay setting is as picture below:...
  • Page 33 User Manual PT-CON-WP8B  Compare Setting This item is used for compare the feedback of RS232 commands. When the programmable control panel send a RS232 command to the controlled device, the device will send back a feedback. If we add the correct feedback in the data, the programmable control panel will compare it with the feedback received from controlled device, to verify the command is work or not.
  • Page 34 User Manual PT-CON-WP8B  LED Setting This item is used for set the button LEDs in the programmable control panel to turn on/off. The setting is as below:...
  • Page 35 User Manual PT-CON-WP8B  Page Setting White buttons can be set to type “page” that include four actions. To change different actions, it will need other white buttons to active the page action number. Here take an example to show you the use of this function: 1) Take button1 for example: click key1 and select the action type “page”, add the four actions to the action list.
  • Page 36 User Manual PT-CON-WP8B 2) In event setting, we add four different events to the four page actions of key1, and the four other keys will be added the page event to each of them as below: Then set the “page” event to make four “press” actions to active the four page number: key5-num1, key6-num2, key7-num3 and key8-num4.
  • Page 37 User Manual PT-CON-WP8B  Loop Setting This item is used for looping the programmable control panel. When use the loop function, the ID of each programmable control panel must be set.
  • Page 38 User Manual PT-CON-WP8B  Toggle Setting The toggle setting is as the picture below: The setting steps of toggle are similar with the page setting. But toggle performs differently, for the actions in it are loop running, it will perform as below (take the same example like page function): When press the button5 and then button1, the button1 will execute the event of ...

  • Page 39: Event List

    User Manual PT-CON-WP8B 4.2.5 Event List The event list shows all events of the selected action. The executing priority abides by the serial number, see the picture below. If there is an event execute incorrectly, all the events behind it will not be executed.

  • Page 40: Specification

    User Manual PT-CON-WP8B 5. Specification Program Port USB or RS232 Output Port (3) RS232, (1) RS485, (3) IR, (2) Relay Serial Control Port RS232 Baud Rate And Protocol 9600 baud, 8 data bits, 1 stop bit, no parity Software PS-WP Frequency Response 20Hz ~20KHz -10 ~ +55℃...

  • Page 41: Panel Drawing

    User Manual PT-CON-WP8B 6. Panel Drawing +12 VDC RELAY 1 RELAY 2 RS485 IR 1 RS232 1 ( ) / IR 2 RS232 2 ( ) IR 3 NET OUT RS232 3 ( ) CONFIG NET IN 70 mm...

  • Page 42: Troubleshooting & Maintenance

    User Manual PT-CON-WP8B 7. Troubleshooting & Maintenance When the control panel cannot work, please check and make sure the power  cord connection is well, plug cannot be mixed or connect wrong. Then restart, if still not work, the control panel may be broken. Please send it to the dealer for repairing.
  • Page 43 User Manual PT-CON-WP8B 1) Product Limited Warranty This product will be free from defects in materials and workmanship for two years. Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the unit is within the warranty period must be presented to obtain warranty service.
  • Page 44 Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10 D - 48432 Rheine www.purelink.de info@purelink.de...
