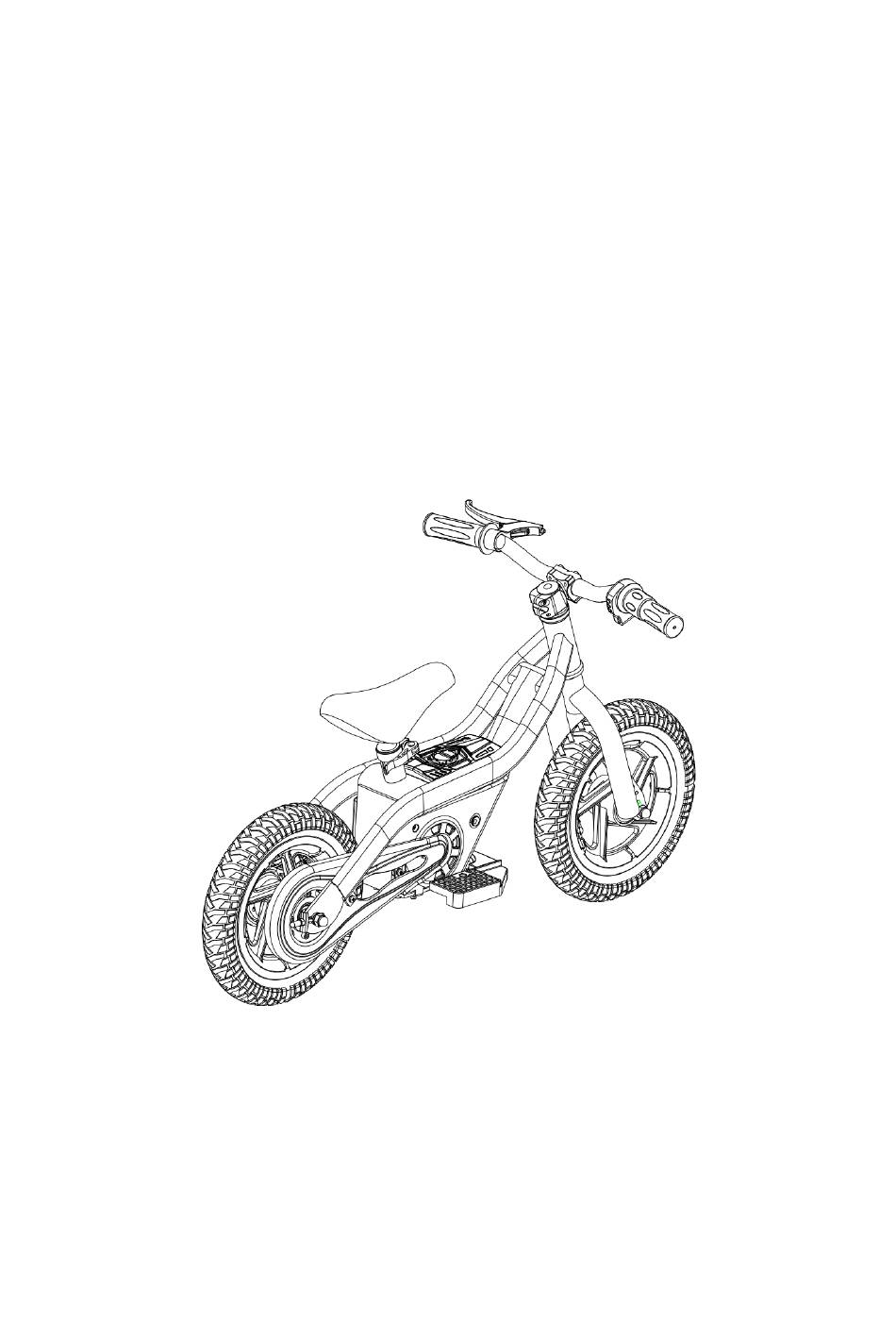

- Page 1 User/ Product Manual PRODUCT USE AND CARE INSTRUCTIONS ELECTRIC BALANCE BIKE...
-
Page 2: Table Of Contents
This manual can help you understand, use and maintain X-PRO BALANCE. In order to avoid dangers that are caused by collisions, falls and loss of control, please learn how to ride electric balance bike safely. You can learn riding skills by reading this product manual. -
Page 3: Before Using
1. BEFORE USING 1.1 Riding Risk Electric balance bike is a personal electric vehicle toy, our technology and production processes have strict testing for every pair of electric balance bike. Riding without attention to contents of this manual may cause injury. -
Page 4: Prepare Install The Electric Balance Bike
1.2.1 Prepare install the electric balance bike Main product Charger with tool Battery Manuel... -
Page 5: Product Specification
1.2.2 Product specification Net weight 10kgs Size 980*510*568mm Running time 60-80min (4.0Ah battery) E-balance bike Operating temperature range 0℃-40℃ Max climbing angle 6~9° Max weight capacity 50KG Capacity 4.0Ah Types 18650 high rate discharge battery Battery Charging duration 3~6 hours... -
Page 6: Description Of Parts
1.2.3 Description of parts Brake bar Handlebar Handle grip Throttle bar Handlebar stem Headset Front fork Battery Saddle Front tire Motor cover Rear wheel Front rim Brake Foot pedal Charging pot Chain cover... -
Page 7: How To Assemble The X-Pro Balance
1.2.4 How to assemble the X-PRO BALANCE STEP 1: Assemble the handlebar... - Page 8 A: Size: M5X20 Socket head bolt B: Upper block C: Handlebar D: Down block 1. Put（C）into location（D），then cover（B） 2. Put（A）into（B），then use the tools screw to（D） NOTE: When assemble the handlebar, the brake wire should go to the Left side (from front side see) ：...
- Page 9 a. Install the battery：Take the battery out, find the female plug in the battery and the male plug in the bike. Match the female plug to the male plug, then press the battery case until the two plugs are completely locked. (Move the battery slowly, if it is a movable battery, it means the plugs are not locked completely.
-
Page 10: Safe-Using Of Electric Balance Bike
2. Safe using of electric balance bike We hope every user can ride electric balance bike safely and enjoy the fun. You can recall the memories of learning how to ride a balance bike, electric toy car, bicycle; all these experiences can be applied. -
Page 11: Weight Limit
4. Do not modify the parts of electric balance bike, it will affect the performance, and can cause serious injury. 5. The children is not allowed to ride the electric balance bike on his/her own. Children can only ride it when they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety 6. -
Page 12: Speed Limited
Electric balance bike top speed is about 10 KM/H When it is close to the max speed, the electric balance bike will ensure that the speed does not continue to increase. When the user feels discomfort or loss control with the speed, they must hit the brake bar to slow the speed. -
Page 13: Charging Process
When the Led light turn red, it means low power, then the battery needs to be charged Switch off the electric balance bike in "off " position Plug the charger cable into the electric balance bike, connect the cable with power supply. Please refer to power supply for charging state. -
Page 14: Temperature
Lithium battery contains dangerous articles. Ship lithium only according to local law. 4. Maintenance Electric balance bike requires the user to do routine maintenance. This chapter describes maintenance steps and important operating tips. Before you perform the following operations, ensure the power and charging cable are disconnected. If the battery is... - Page 15 To prevent dust from entering, you should cover Electric balance bike. Do not connect the power. Store Electric balance bike indoors in a dry and suitable temperature. If you do not use it for a long time, please do not ...
- Page 16 Damage caused by misuse, accident or abuse. Damage caused by service performed by any third part. A product or part that has been modified without the written permission. WARRANTY DOES NOT COVER: Product repair and/or part replacement because of improper installation, connections to improper voltage supply abuse, neglect, accident, unauthorized repair or other cause not within control of our company.
