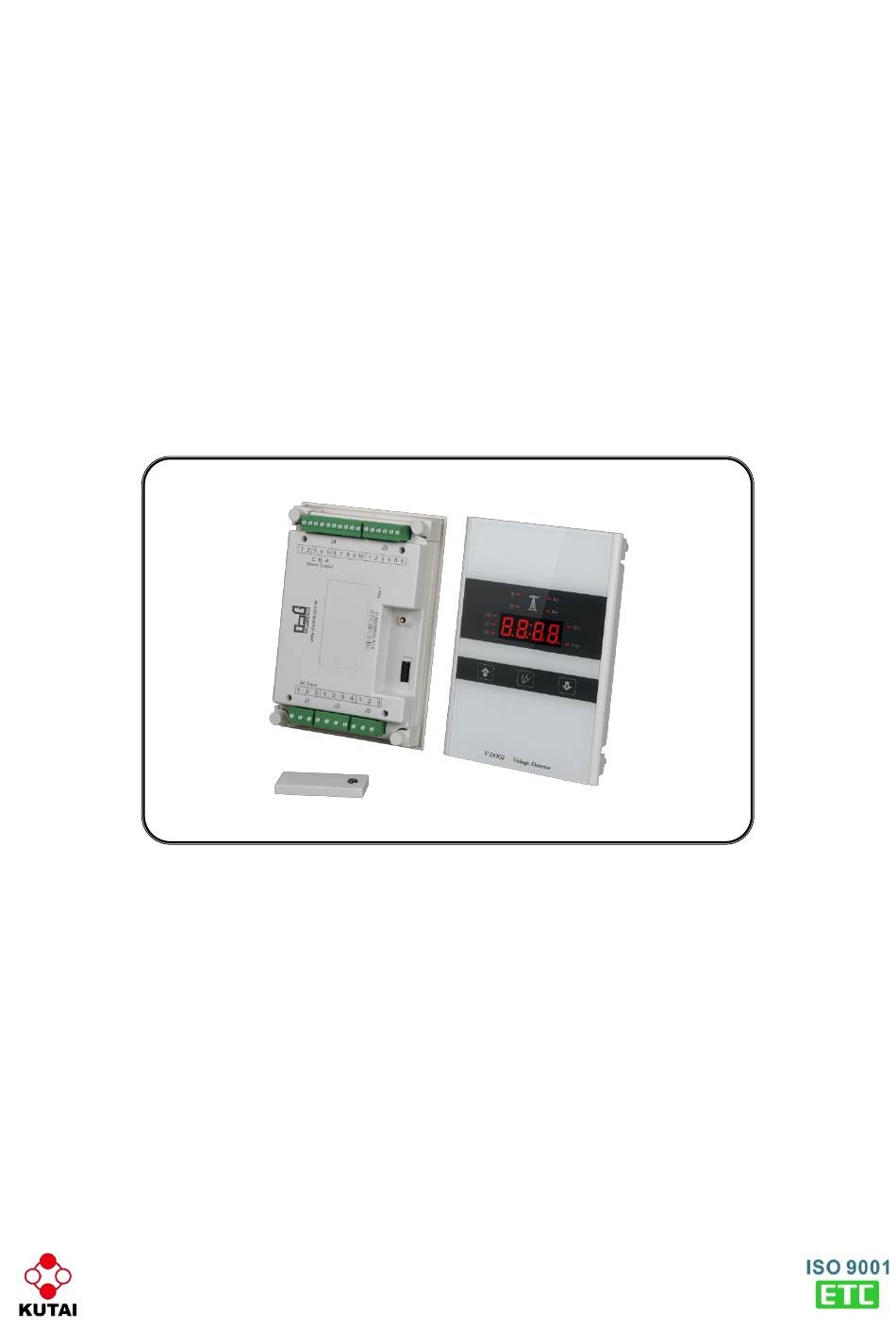

- Page 1 V-DOG2 Ver1.0 User Manual for AC Voltage & Frequency Detector KUTAI ELECTRONICS INDUSTRY CO., LTD. TEL : +886-7-8121771 FAX : +886-7-8121775 Website : www.kutai.com.tw Headquarters : No.3, Lane 201, Chien Fu St., Chyan Jenn Dist., Kaohsiung 80664, TAIWAN...
-
Page 2: Table Of Contents
3.3 Voltage Calibration............................5 3.4 System Settings Selection Table ........................ 5 3.5 Electrical Specifications ..........................5 SECTOIN 4 : INSTALLATION INSTRUCTIONS 4.1 General ............................... 6 4.2 External Appearance / Dimensions / Installation Drawings ................ 6 SECTOIN 5 : WIRING CONNECTION ILLUSTRATIONS ___________________________________________________________________________________________ V-DOG2... -
Page 3: Preliminary Comments & Safety Precautions
V-DOG2 AC Voltage & Frequency and under frequency ranges. (Refer to setting items 5, Detector to assist the user in operating the V-DOG2. 6 & 7 in Table 3.4) This manual is for use by authorized and qualified Over Frequency setting range：51 ... -
Page 4: Panel Buttons
Decrease ( ▼ ) button the displayed parameter will This section will introduce the operation mode and user continue to scroll rapidly. functions of the V-DOG2 control module. It is divided into two main parts : 2.3.3 Setting button - between (▲) & (▼) ●... -
Page 5: Voltage Calibration
“End” appears on the screen. To end the program The voltage value of the V-DOG2 controller is immediately press and hold the Setting button for 4 accurately calibrated at the factory. However, if the seconds to exit the program. -
Page 6: General
SECTION 4 : INSTALLATION INSTRUCTIONS 4.1 General The V-DOG 2 controller is designed for front panel mounting 4.2 External Appearance / Dimensions / Installation Drawings (Units：mm) ___________________________________________________________________________________________ V-DOG2... - Page 7 SECTION 5 : WIRING CONNECTION ILLUSTRATIONS 5.1 3-phase system connection illustration Auxiliary output 1 2 3 3 4 5 AC Power Source 50 ~ 500V ___________________________________________________________________________________________ V-DOG2...
- Page 8 5.2 Single-phase system connection illustration Auxiliary output 1 2 3 3 4 5 AC Power Source 50 ~ 500V ___________________________________________________________________________________________ V-DOG2...
