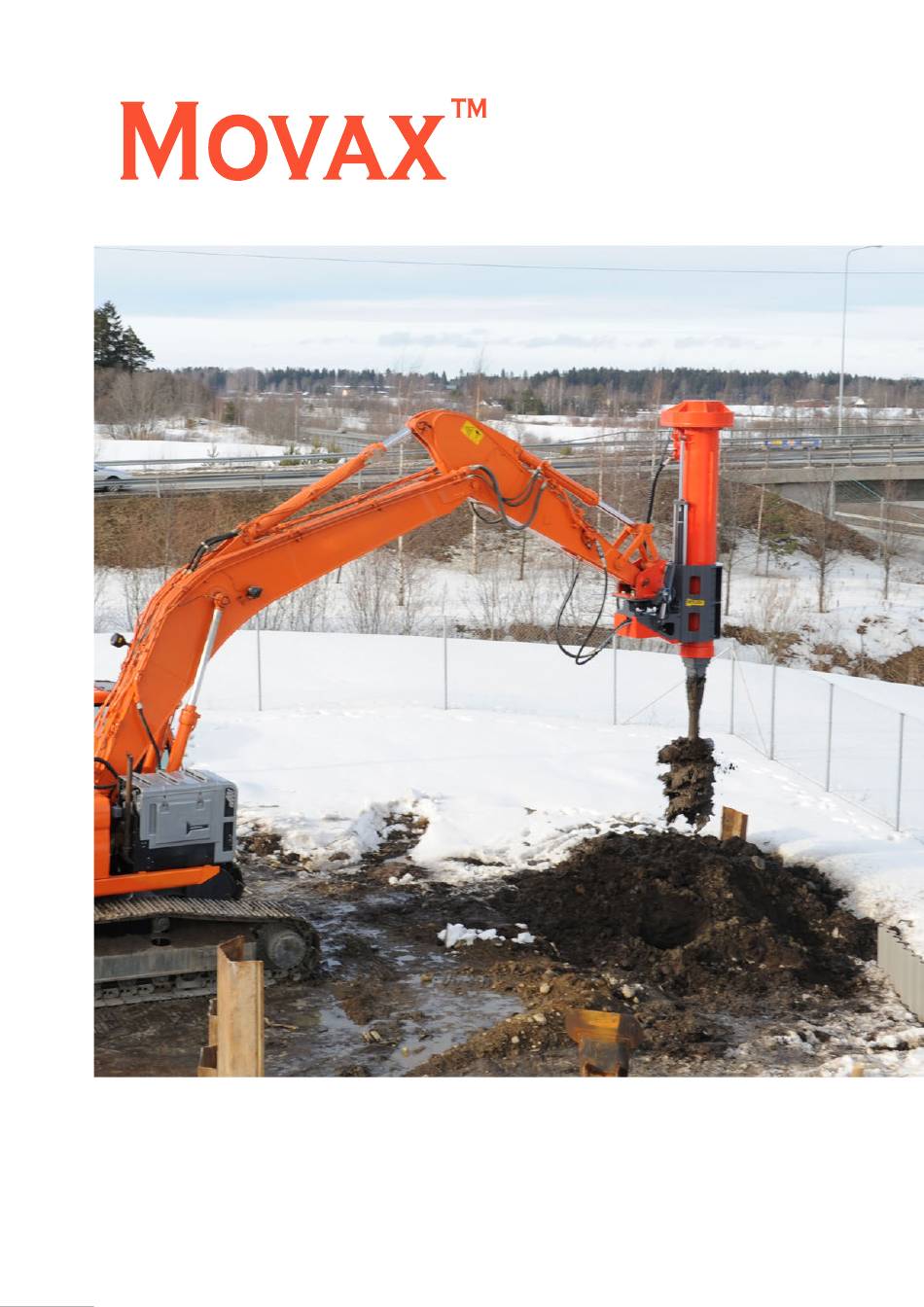

- Page 1 Soil Drill TAD30-2 User manual Movax Oy Tölkkimäentie 10 from SN 1080 onwards 13130 Hämeenlinna v1.0 2.12.2015 FINLAND www.movax.com marketing@movax.fi Master page b...
-
Page 3: Table Of Contents
2. SAFETY AND WARRANTY ....................2.1 SAFETY ........................2.2 WARRANTY CONDITIONS ..................3. MOVAX TAD30-2 ........................4. USING MOVAX TAD – SOIL DRILL ..................4.1 ATTACHING THE SOIL DRILL TO THE EXCAVATOR ......... 4.2 FUNCTIONS ....................... 4.3 CONNECTING AUGER TO KELLY BAR .............. -
Page 4: Introduction
INTRODUCTION 1. INTRODUCTION Movax TAD is a telescopic soil drill that can be mounted on a standard excavator. TAD does not require changes on a mechanical structure of the excavator but can be used as attachment. Read this instruction manual trough to get under- standing of safe and allowed use of TAD soil drill. -
Page 5: Safety And Warranty
◊ Support and tie the soil away from cabin when lift- 2.2 WARRANTY SAFETY See general warranty condi- 4. Pressure relief valves tions for Movax products on a valve block on the soil (Appendix 1) drill must not be set over allowed maximum. Failing 1. -
Page 6: Movax Tad30-2
MOVAX TAD30-2 3. MOVAX TAD30-2 Rotation motors Elevator cylinder Elevator Hydraulic block Telescope Master page... -
Page 7: Using Movax Tad - Soil Drill
4.1 ATTACHING THE SOIL DRILL TO THE EX- CAVATOR Movax soil drill can be mounted on the excavator with suitable quick hitch or with pins. For safety reasons make sure that locking mechanism on the quick hitch full fills the standards and is in good working condition. -
Page 8: Functions
Movax TAD30-2 soil drill has telescopic kelly bar with two moving extensions. Movement is imple- mented with a hydraulic cylinder. The mechanism is working two ways thus enabling the hydraulic push and pull. -
Page 9: Connecting Auger To Kelly Bar
4. Rotate the auger or the telescope until the kelly Ask you Movax dealer for needed type adapter. bar and the box are in same position. Note the position of the locking pin and hole. -
Page 10: Positioning For Drilling
Alignment can be done by moving the arm, the bucket cylinder of the excavator and tilt function on the soil drill. Movax soil drill can be used also for raked piles. Drilling angle must not exeed 45 degrees thus drilling on horizontal position is not allowed. -
Page 11: Drilling
USING MOVAX TAD – SOIL DRILL 4.5 DRILLING Begin the drilling by starting the rotation clockwise. Rotation speed can be set by changing the oil flow from the excavator. This is easily done by chang- ing the running speed of a diesel engine. TAD-30s enables two different speeds by running one or two motor at the time. -
Page 12: Maintenance
MAINTENANCE 5. MAINTENANCE 5.1 LUBRICANTS FOR TAD-30 1. Lubricant for greasing points; grease nipples, rotary gear, slide bearings and all slides on the telescope and the elevator: Open gear grease, greasing intervals on chapters below. 2. Lubricant for planetary gears: 80W-90 API GL-5 gear oil. -
Page 13: Weekly Maintenance
MAINTENANCE 5.3 MAINTENANCE WEEKLY OR EVERY 40 HOURS Check weekly: 1. Open the top cover and inspect the gear wheels, clean if needed. 2. Inspect a rotary joint. Make sure there are no leakages and check that the rotary joint cannot turn around but a stopper is firmly fixed. - Page 14 MAINTENANCE 6. Check the chain adjustment in the telescope. 6.1 Pull mechanically the telescope fully in to the shortest length. You can ensure fully in position with hand winch. 6.2 Tighten the nuts using special tool. Right mo- ment is achieved by hand tightening when using this tool.
-
Page 15: Pin Assignment On The Valve Block (Manual, Autoc)
MAINTENANCE 5.5 PIN ASSIGNMENT ON THE VALVE BLOCK Telescope down Telescope up Elevator down Cable No.8 Cable No.7 Cable No.6 Elevator up Cable No.5 Auger float Cable No.10 Tilt left Cable No.4 Tilt right Cable No.3 Activation of Motor 2 Cable No.1 Rotation forward Rotation reverse... -
Page 16: Pin Assignment On The Valve Block (Mcs Pro / Lite)
5.6 PIN ASSIGNMENT ON THE VALVE BLOCK AU-02-0-4 FOR MCS PRO AND MCS LITE CONTROL SYSTEMS (CABLE 40438) Wire No. Function Elevator up Elevator down Tilt right Tilt left Rotation reverse motor 1 Rotation forward motor 1 Telescope up Telescope down Activation of motor 2 Auger float... -
Page 17: Joystick
Joystick 5. JOYSTICK TAD-30 BUTTON OR FUNCTION COMBINATION TAD-30S BUTTON OR FUNCTION Auger rotation reverse COMBINATION High torque / low speed Kelly up Auger rotation fast forward Kelly down Motor 1 Elevator up Elevator down Auger rotation fast reverse Tilt left Tilt right Auger rotation forward Auger rotation / drilling clockwise... -
Page 18: Appendix 1
APPENDIX 1 ¡ ¢ ¢ ¡ £ ¤ ¥ ¦ § £ ¨ © ¤ © § £ § ¢ § ¡ ¢ § ¨ ¦ ¤ " & " & & & " " " & " & & "... - Page 19 " " & " " & & & & & " & & &...
- Page 20 Movax Oy Ltd grants a warranty to the delivered new equipment according to Movax warranty conditions. The warranty period is 12 months and the warranty period starts when Movax Oy Ltd has delivered the equipment to the customer. The delivery is considered made when the customer has received the equipment or Movax Oy Ltd’s representative has installed the equipment as agreed.
- Page 21 TAD- 30-2 and one longer extension on the TAD-30-1. Movax Soil Drills work well in confined spaces while still being good at reaching over obstacles. The telescopic design keeps the machine low and without compromising on drilling depth.
