Plasma screen Stand (Presentation Display 390501) Manual

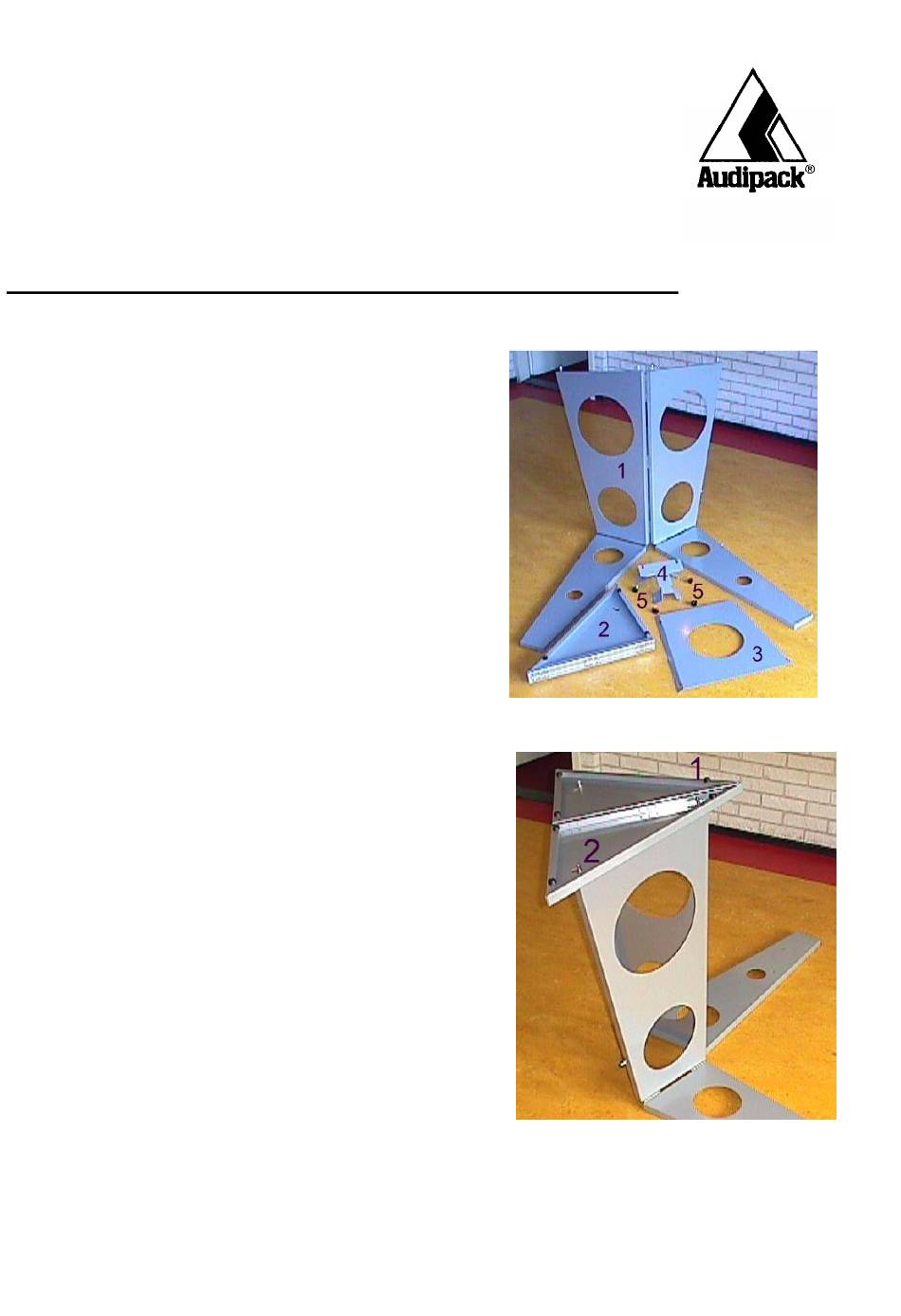

The complete set consists of the following parts:

Note: the numbers also represent the order of assembly.
1. Foldable support
2. Feet, foldable in two
3. Back-plate
4. Clamp (Other type than on the photo)
5. 4 star knobs (part of the clamp)
6. The specific Monitorbracket (not on the photo)
for the relevante type of Plasma-screen
Position the support as indicated on photo 2. The 2 sides
must be placed in an angle of approx.
40°-45° of each other. This makes mounting of the feet
much easier.
Hook the front mounting knobs (see photo 7) of the
support through the front holes of the feet (no. 1 on photo
2). Pull the feet back so that the front mounting knobs
slide in to the smaller part of the hole. Do not tight the
knobs yet!! First hook the 2 back mounting knobs
(no. 2 on photo 2) of the support through the holes in the
feet and pull them in the small part of the hole. Tighten
first the 2 back mounting knobs (No. 2 on photo 2) firmly
(by hand) by turning them clock-wise, then follow with
the front 2 mounting knobs (no. 1 on photo 2).
Make sure that the small part of the mounting knob
(the part the arrow points at on photo 7) goes through the
small part of the hole before tighten it. Do not use tools
for this. The placing of the actual Plasma screen in the
end will give extra strength.
