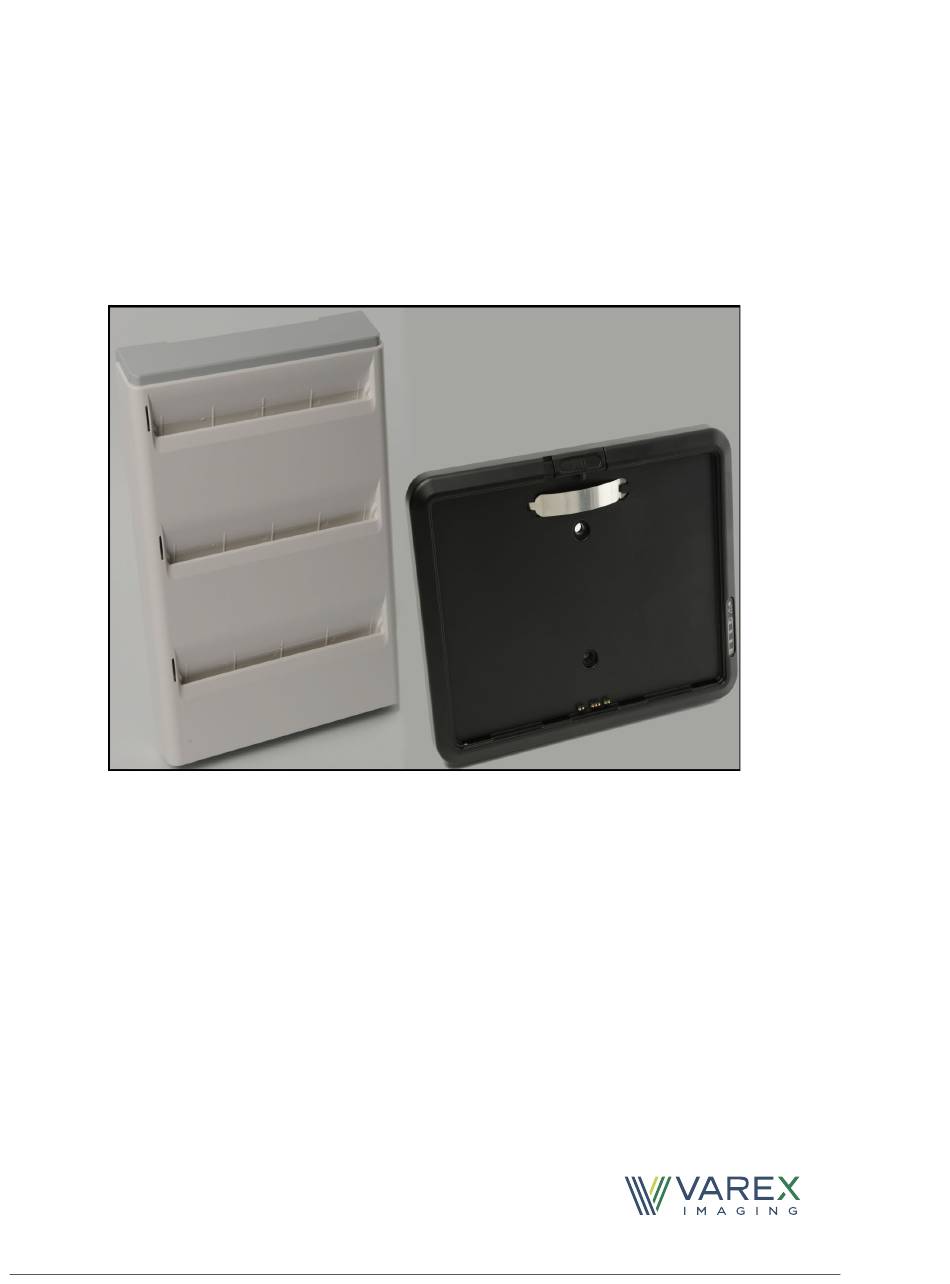

- Page 1 Varex Battery Charger 1 and 3 Before using the Battery Charger, be sure to read this manual thoroughly along with any other manuals for the software and other system components. Keep this manual where it is easily accessible. ®...
- Page 2 Before You Begin Varex Battery Charger 1 and 3 Bay Before You Begin To avoid personal injury or product damage, read the manual and all accompanying papers carefully before operating the Battery Charger. For Your Safety To avoid personal injury or product damage, read this manual and all accompanying information carefully before handling, installing, or using the Battery Charger.
- Page 3 Varex Battery Charger 1 and 3 Bay Before You Begin Battery Charger IP20 WARNING Protected from touch by objects greater than 12 millimeters, not protected from liquids. Do not remove the charger cover. The charger has no internal user WARNING serviceable parts.
- Page 4 Before You Begin Varex Battery Charger 1 and 3 Bay This page intentionally left blank. www.vareximaging.com...
-
Page 5: Table Of Contents
Steps for Battery Charging using the Stand-Alone 3 Bay Battery Charger ..5 Steps for Battery Charging Using the Stand-Alone 1 Bay Battery Charger ..6 Maintenance ............9 Cleaning. - Page 6 Table of Contents Varex Battery Charger 1 and 3 Bay This page intentionally left blank. www.vareximaging.com...
-
Page 7: Varex 1 And 3 Bay Battery Chargers
Varex Battery Charger 1 and 3 Bay Varex 1 and 3 Bay Battery Chargers This section describes the 1 and 3 bay Varex Battery Chargers. Intended Use The Varex 1 bay and 3 bay Battery Chargers are intended for use with the Varex Lithium-ion Battery. -
Page 8: Definition Of Symbols
Varex Battery Charger 1 and 3 Bay Definition of Symbols Table 2 Definition of Symbols Symbol Description Part Number and Revision Serial Number Direct Current Authorized Representative in the European Community/European Union Important Information Consult Instruction for Use Do Not Discard with Domestic Waste European Conformity Marking for the Product Date of Manufacture YYYYMMDD Recognized component... -
Page 9: Battery Charger Specifications
Varex Battery Charger 1 and 3 Bay Battery Charger Specifications Table 3 Specifications Description Specification Input Voltage 19V DC (3-bay and 1-bay) Input Current 4.5A (3-bay), 2.1A (1-bay) Output Voltage 16.8V DC (3-bay and 1-bay) Output Current 1.4A (3-bay and 1-bay) Environmental Storage and Transport (Ambient) -20°C to +60°C... -
Page 10: Over-Discharged Battery Wake-Up
Varex Battery Charger 1 and 3 Bay Over-Discharged Battery Wake-Up The Battery Chargers will wake-up a battery that is in over-discharge protection mode. Over-Charge Battery Protection Over-charge due to excessive or uncontrolled current is prevented by redundant software functions monitoring a minimum of two independent sources combined with the software independent method. -
Page 11: Steps For Battery Charging Using The Stand-Alone 3 Bay Battery Charger
Varex Battery Charger 1 and 3 Bay Steps for Battery Charging using the Stand-Alone 3 Bay Battery Charger The Varex 3-bay Battery Charger requires: • 24V DC, 3.3A max input. • The output of the Battery Charger is 16.8V DC, 1.5A max (+/- 1% and 10 Hz). Note The following power supply must be used for the Varex 3 Bay Battery Charger: XP Power Supply AHM85PS19... -
Page 12: Steps For Battery Charging Using The Stand-Alone 1 Bay Battery Charger
Varex Battery Charger 1 and 3 Bay Table 4 3-Bay Battery Charging Status Indicator LED State Description Green Solid Battery Full Orange Solid Battery is Charging Solid Charger timeout or bad battery ID 2 Blinks Bad Smbus 3 Blinks Voltage Fault 4 Blinks Temperature Fault Steps for Battery Charging Using the Stand-Alone 1... - Page 13 Varex Battery Charger 1 and 3 Bay Table 5 1-Bay Battery Charging Status Indicators Description Green LEDs Red Led Example Battery Charging 1 – On – Blinking Normally – up to 25% 2 – Off 3 – Off 4 – Off Battery Charging 1 –...
- Page 14 Varex Battery Charger 1 and 3 Bay Table 5 1-Bay Battery Charging Status Indicators Fault – Battery exceeds 1 – On – Blinking allowable charge time 2 – On – Blinking 3 – On – Blinking 4 – Off Fault – Battery ID does not 1 –...
-
Page 15: Maintenance
After-Sales Service For product returns, contact your distributor or device manufacturer for shipping and packaging instructions. Do not return products to Varex Imaging for repair or service without advance notification. Include all required papers in the shipment. We request that you obtain an RMA number for in-warranty and out-of-warranty returns of products. - Page 16 Varex Battery Charger 1 and 3 Bay This page intentionally left blank. www.vareximaging.com...
- Page 17 Varex Battery Charger 1 and 3 Bay This page intentionally left blank.
- Page 18 ©2019 Varex Imaging All rights reserved. The Varex Imaging logo and design are registered trademarks of Varex Imaging or its subsidiaries, in the United States and other countries. All other trademarks not owned by Varex Imaging or its subsidiaries that are depicted herein are the property of their respective owners.
