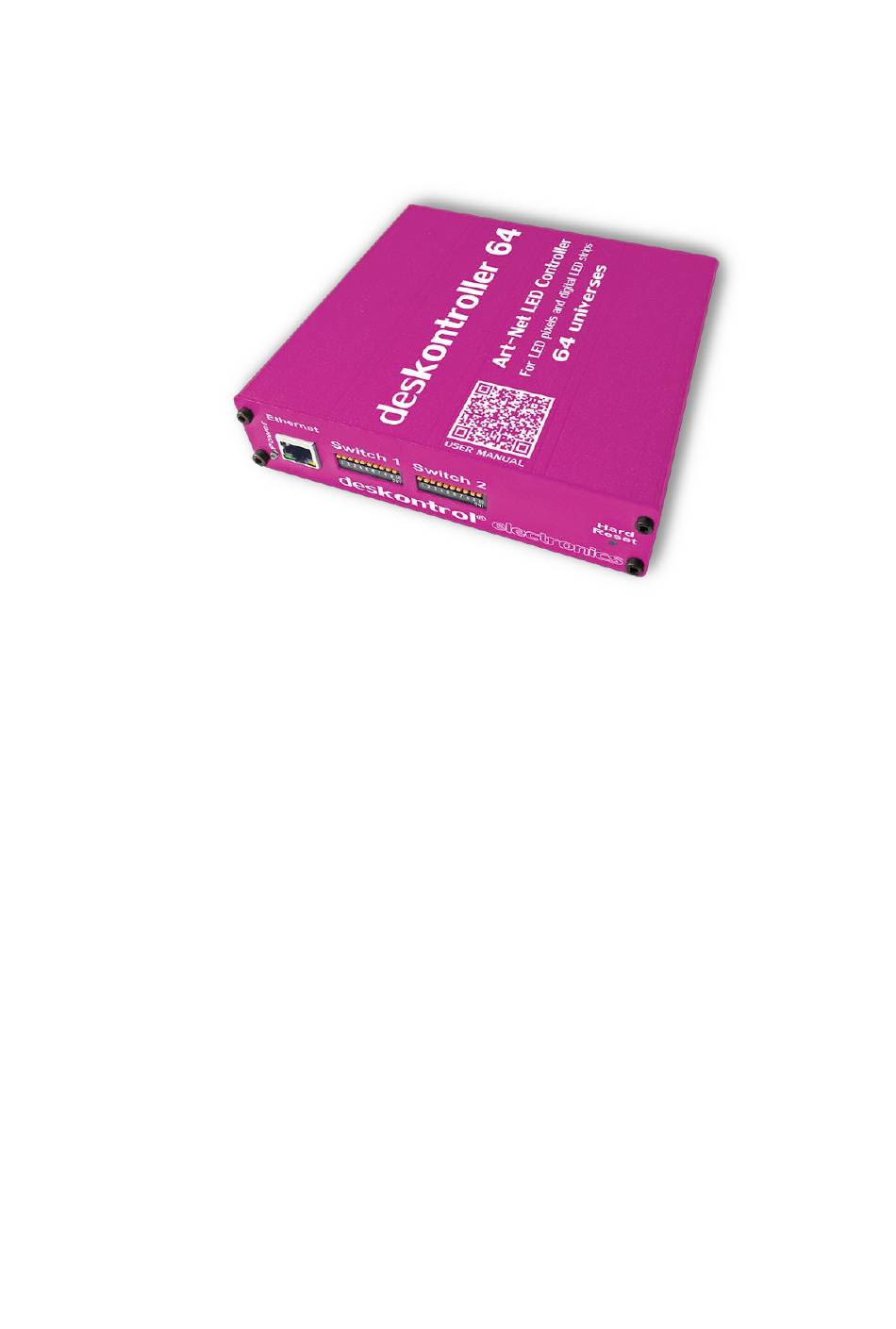

deskontroller 64 – user manual
Art-Net Controller for LED pixels and digital LED strips
64 universes 32768 Channels
LED types supported
APA102, SK9822, DM413, D705, D707, D708
DMX512 TTL levels, DMX500K TTL levels, DMX750K TTL levels, DMX1000K TTL levels, DMX1250K TTL
levels, DMX1500K TTL levels, DMX2000K TTL levels, DMX2500K TTL levels
INK1002, INK1003, LX1003, LPD1886, LPD1882, LPD6803, LPD6813, LPD1101, LPD8803, LPD8806
MBI6021, P9813, P9816, P9883, P9823, SK6812, SM16703, SM16726
TM1803, TM1809, TM1812, TM1814, TM1829, TM1903, TM1926
UCS1903, UCS1903B, UCS1909, UCS1909B, UCS1912, UCS1912B , UCS2903, UCS2903S, UCS2909,
UCS2912, UCS3903, UCS8903, UCS5903, UCS6909, UCS6912, UCS7009
WS2801, WS2803, WS2811, WS2812, NEOPIXEL, WS2812B, WS2812S, WS2813, WS2813A, WS2813B,
WS2813C, WS2813D, WS2818, WS2821, WS2822
User Manual
deskontrol electronics – Av. Del Port 158-9ª – 46023 Valencia (Spain) - Art-Net controller for LED Pixels – User Manual
Page 1
