■ Please check the bundled items.

Make sure that there is an accessory attached with the product.

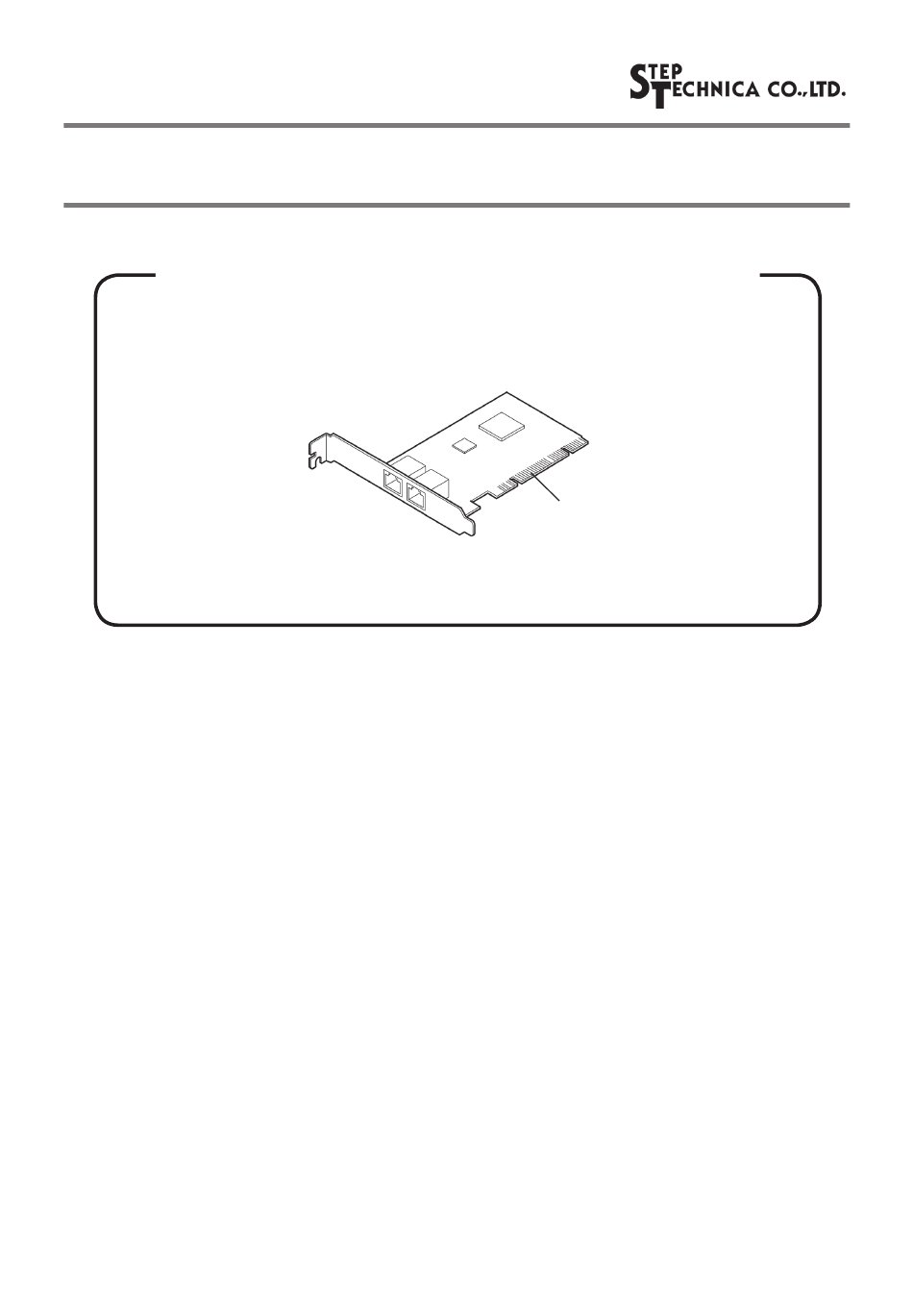

● Interface board (with Low profile bracket)・・・1 pc

HLSB-36PCI1

＊ Do not touch the terminal contacts with your hands. It may cause the malfunction.

■ How to download the device driver and HLSeditor36J for HLSB-36PCI1

Download the device driver and HLSeditor36J for HLSB-36PCI1 from

StepTechnica website.

URL：https://www.steptechnica.com/en/download/index.html

～ Read Me First ～

HLSB-36PCI1 Setup Guide

Terminal contact ＊

Table of Contents

Need help?

Do you have a question about the HLSB-36PCI1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Step Technica HLSB-36PCI1

Page 1 Terminal contact ＊＊ Do not touch the terminal contacts with your hands. It may cause the malfunction. ■ How to download the device driver and HLSeditor36J for HLSB-36PCI1 Download the device driver and HLSeditor36J for HLSB-36PCI1 from StepTechnica website.
Page 2 1.　Driver installation ■　Driver can be manually installed from downloaded driver file. The configuration of downloaded driver file is shown in the table below. Driver installer storage location Windows 7/ 8/ 8.1　 64-bit version Driver_V2000\Win7_Win8.1\x64\dpinst_x64.exe Windows 7/ 8/ 8.1　 32-bit version Driver_V2000\Win7_Win8.1\x86\dpinst_x86.exe Windows 10　...
Page 3 2.　Hardware installation ■ For how to put-on or remove a PC side panel and insert a PCI card to the PC slot, refer to your PC manual. ① . Power-off the PC. ② . Remove all cables connected to the PC. ③...
Page 4 3.　Check that the PCI card is correctly installed Open 'Device Manager' first to check the card has been correctly installed. For Windows 10 ① . Press 'Windows' and 'X' key to display 'Device Manager(M)' and click it. ② . Device Manager is displayed. Select and double-click 'HLS Devices' to show the devices listed in the context menu and check 'HLSB36PCI1...
Page 5 For Windows 8 / 8.1 ① . Press 'Windows' and 'X' key to display 'Device Manager(M)' and click it. ② . Device Manager is displayed. Select and double-click 'HLS Devices' to show the devices listed in the context menu and check 'HLSB36PCI1 Device' is in the list.
Page 6 ① . Execute 'setup.exe' in 'HLSeditor36J'. Select 'Yes' in the user account control dialog box. ② . Select 'OK' in 'HLSeditor36J for HLSB-36PCI1 setup' dialog box to continue. ③ . Specify the install location of HLSeditor36J for HLSB-36PCI1. Click 'Change Directory' to change the install location.
Page 7 ⑤ . Click 'Continue' in 'HLSeditor for HLSB-36PCI1 - Choose Program Group' dialog box to continue. ⑥ . Click 'OK' button when the setup dialog box is displayed to finish the driver installation.
Page 8 Product Specifications Item Description HLS device MKY36 × 1 pc HLS communication method Full / Half-duplex HLS communication rate 12M/6M/3Mbps (Set in MKY36 register) HLS communication connector RJ45 type (8pin modular) × 2 pcs Supported bus Based on PCI Ver2.2, 32-bit, 33MHz expansion bus, 5.0V/3.3V supported Owned resource 16KB serial memory area（...
