BEIER-Electronic SM-IR-16-2 Operating Instructions Manual

Infrared light module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
D

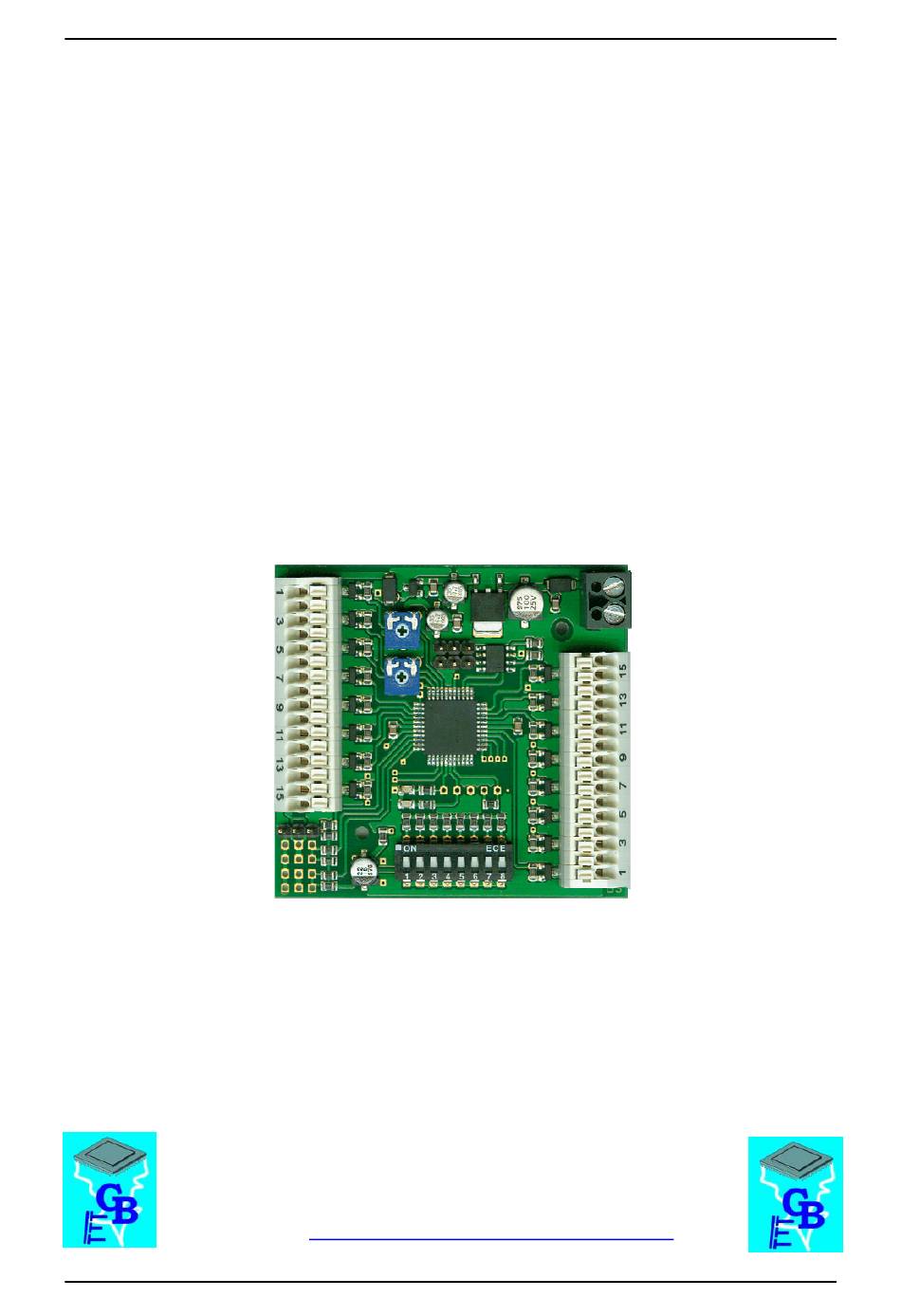

Infrared Light Module
Winterbacher Str. 52/4, 73614 Schorndorf - Weiler, Germany
Internet:
April 03. 2012
Operating Instructions
SM-IR-16-2
V1.00
BEIER-Electronic
Phone 07181/46232, Fax 07181/45732
eMail: modellbau@beier-electronic.de
http://www.beier-electronic.de/modellbau
BEIER-Electronic
Infrared Light Module SM-IR-16-2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-IR-16-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BEIER-Electronic SM-IR-16-2

Summary of Contents for BEIER-Electronic SM-IR-16-2

  • Page 1 Infrared Light Module SM-IR-16-2 Operating Instructions Infrared Light Module SM-IR-16-2 V1.00 BEIER-Electronic Winterbacher Str. 52/4, 73614 Schorndorf - Weiler, Germany Phone 07181/46232, Fax 07181/45732 eMail: modellbau@beier-electronic.de Internet: http://www.beier-electronic.de/modellbau April 03. 2012 BEIER-Electronic...

  • Page 2: Table Of Contents

    Infrared Light Module SM-IR-16-2 Table of contents Table of contents ......................2 Description........................3 Safety advisory ......................3 Technical data ......................4 DIP Switch S1......................4 Terminal assignment ....................5 Wiring diagram ......................6 Supply voltage connection..................6 Connecting lamps/LEDs to the switch outputs............7 Connecting the servos ....................

  • Page 3: Description

    Besides being used for trailer lighting, there are many other application possibilities for the light module. The SM-IR-16-2 has 16 switch outputs for e.g. lamps and LEDs. 12 of the 16 outputs are a copy of the 12 switch outputs of the USM-RC-2. There are different functions for the other 4 outputs such as 1- and 4-channel all-round light, 4/8-channel chaser light and different flashers.

  • Page 4: Technical Data

    Infrared Light Module SM-IR-16-2 Technical data Supply voltage (U 5 – 14V DC Current consumption: Quiescent current: approx. 25mA Switch outputs: 16 pieces, minus-switching, the amount of output voltage corresponds to the supply voltage. Permanent current: 0.8A, short-term max: 1.2A Max.

  • Page 5: Terminal Assignment

    Infrared Light Module SM-IR-16-2 Terminal assignment +5 - 14V Output 1- Output 1+ Output 2- Output 2+ Output 3- Output 16+ Output 3+ Output 16- Output 4- Output 15+ Output 4+ Output 15- Output 5- Output 14+ Output 5+ Output 14-...

  • Page 6: Wiring Diagram

    Infrared Light Module SM-IR-16-2 Wiring diagram All wiring work must be conducted while power supply is turned off! Supply voltage connection Connect a power supply of DC 5 – 14V (e.g. a battery) to Terminal X1. Please make sure the polarities are connected correctly! BEIER-Electronic April 03.

  • Page 7: Connecting Lamps/Leds To The Switch Outputs

    The 16 outputs of the SM-IR-16-2 are minus-switching outputs, i.e. the minus pole of the voltage is always toggled. The plus pole of the output load is always securely connected to the plus pole of the power supply voltage.

  • Page 8: Connecting The Servos

    Infrared Light Module SM-IR-16-2 Connecting the servos 2 servos can be connected to pin strips X5/1 and X5/2. Attention: The maximum current consumption of the servos may not exceed 600mA! Before connecting, please check the technical data of your servos.

  • Page 9: Connecting Ir Diode And Ir Receiver

    Connecting IR diode and IR receiver IR transmission: The Sound Module USM-RC-2 is required for the proper functioning of the Light Module SM-IR-16-2! Operation with other sound modules/regulators is not possible. The IR transmission must be activated in the USM-RC-2 Sound-Teacher (Configuration  General).

  • Page 10: Outputs 1-12

    Infrared Light Module SM-IR-16-2 Outputs 1-12 Outputs 1-12 are a copy of the 12 outputs of the USM-RC-2. This means that every time an output switches on the USM-RC-2, the output on the SM-IR-16-2 also switches. Example: Output 10 on the sound module is configured as “Blinker right”. When the blinker is activated on the right, Output 10 on the sound module (blinker for towing vehicle) and also Output 10 on the light module (blinker for trailer) will blink.
  • Page 11 Infrared Light Module SM-IR-16-2 4-channel all-round light (1 piece) The 4-channel all-round light is an improved version of the 1-channel all-round light. The all-round light with 4 outputs simulates a rotating all-round light. The 4 connected lamps/LEDs of the 4-channel all-round light also do not actually rotate; the effect is once again created by increasing and decreasing the brightness of the 4 outputs.

  • Page 12: Activation Of 4 Specialized Light Functions

    Infrared Light Module SM-IR-16-2 Activation of 4 specialized light functions The 4 specialized light functions can be activated via the free function configuration in USM-RC-2 Sound-Teacher, via the proportional channels, the nautic mode, the EKMFA mode or the switch inputs.
