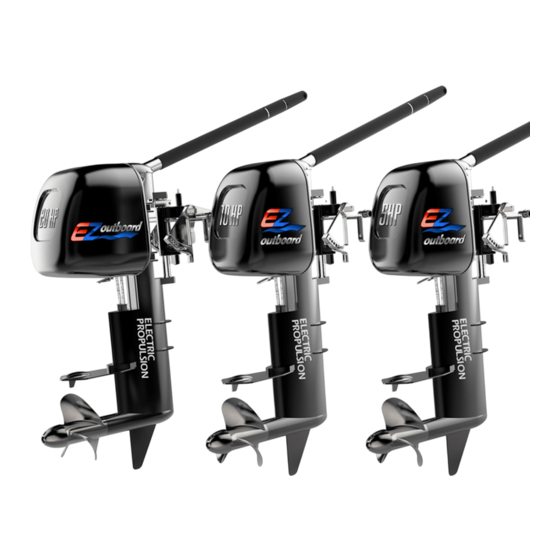

Summary of Contents for EZ outboard EZ-05T/R

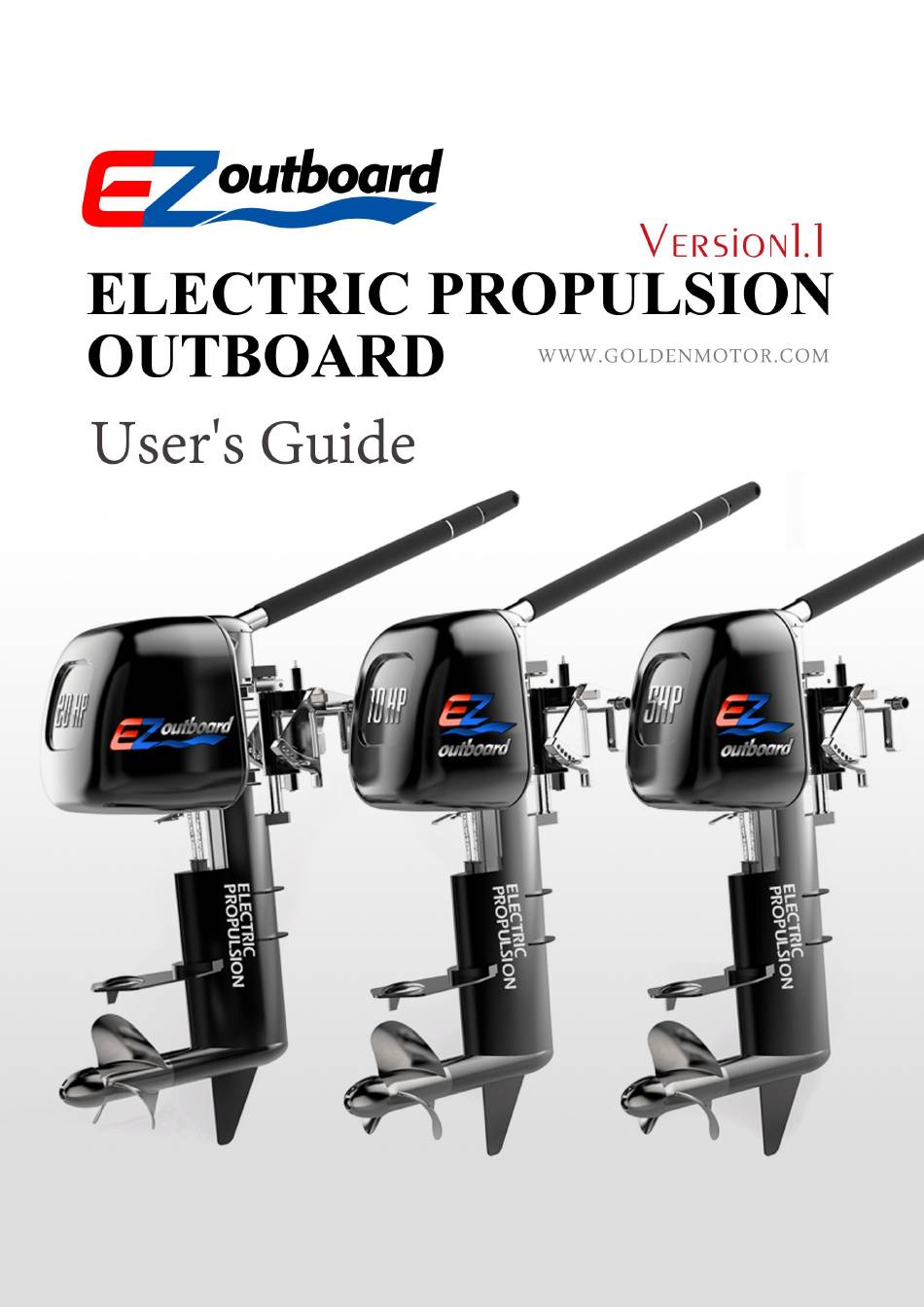

- Page 1 All rights reserved Golden Motor Technology Co., Ltd 2018...
- Page 2 Dear customer, We are delighted that you have chosen EZ outboard. In terms of drive technology and efficiency, your EZ outboard is cutting-edge technology. It has been designed and manufactured with the utmost care and with a special focus on comfort, user-friendliness, safety, and has been extensively tested before delivery.
-
Page 3: Table Of Contents
TABLE OF CONTENTS To the User································································································ 1 1 Safety Information ································································································ 1.1 Outboard motor safety······························································································ 2 1.2 Boating safety········································································································ 2 2 Components and Specification ··············································································· 2.1 Tiller Control Version························································································ 4 2.2 Teleflex Remote Control Version···················································································7 2.3 Specification···································································································8 2.4 Wire Connection······························································································ 9 2.5 Safety Notice··································································································... -
Page 4: To The User
To the User Note EZ outboards are designed to operate safely We continually seeks advancements in and reliably as long as they are used product design and quality. Therefore, while according to the User’s Guide. Please read this manual contains the most current this manual carefully before you start the product information available at the time of printing, there may be minor discrepancies... -
Page 5: Safety Information
1 Safety Information 1.2 Boating safety 1.1 Outboard motor safety This section includes a few of the many important safety precautions that you should follow when boating. 1.11 Propeller 1.21 Alcohol and drugs People can be injured or killed if they come in contact with the propeller. - Page 6 · Do not follow directly behind other boats or Standing or sitting in non-designated Water skiers. locations may result in being thrown either · Avoid sharp turns or other maneuvers that make overboard or within the boat due to waves or it hard for others to avoid you or understand sudden changes in speed or direction.
-
Page 7: Components And Specification
2 Components and Specifications 2.1 Tiller Control Version All rights reserved Golden Motor Technology Co., Ltd. 2018... - Page 8 Safety key position Three-speed switch Speed throttle Turn clockwise, outboard Length adjustable tiller reverses, Turn anticlockwise, outboard goes forward. On/Off switch Length adjustable shaft Mounting bracket Outboard motor cover Main housing Water pressure plate Anode block Propeller All rights reserved Golden Motor Technology Co., Ltd. 2018...
- Page 9 All rights reserved Golden Motor Technology Co., Ltd. 2018...
-
Page 10: Teleflex Remote Control Version
2.2 Teleflex Remote Control Version All rights reserved Golden Motor Technology Co., Ltd. 2018... -
Page 11: Specification
2.3 Specification Model Measurement EZ--05T/R EZ--10T/R EZ--20T/R Units Parameters Equivalent Gasoline Engine Power Norminal Voltage Input Current FOC Controller VEC240 VEC300 VEC500 (Sine Wave) Max Motor Efficiency ≥90% ≥90% ≥90% Max Propeller Speed r/min 2500 2500 2500 Length mm (in.) 460 (18.1) 460 (18.1) 500 (19.7) -
Page 12: Wire Connection
2.4 Wire Connection All rights reserved Golden Motor Technology Co., Ltd. 2018... -
Page 13: Safety Notice
2.5 Safety Notice 2.51 Safety red cord The "key""should be attached to operator’s clothing, arm or leg. In case the operator falls overboard, it can cut off the power to prevent the boat from running away under power. All rights reserved Golden Motor Technology Co., Ltd. 2018... - Page 14 2.52 Battery Power Connection Notice That is the power wire, red is"+" and black is"-" , when you get the outboard, what you need to do is to connect this power wires, bear in mind that you need to connect as per the picture. All rights reserved Golden Motor Technology Co., Ltd.
-
Page 15: Operation
3 Operation 3.1 Operation • Follow the boat manufacturer’s The information presented in this section is instructions on the permissible intended as reference only. It is not possible motorization of your boat. Do not to provide complete instructions for every exceed the capacity limits. -
Page 16: Mounting The Outboard
There is no more long shaft and short thus decreasing the propulsion; and if shaft differences, as EZ outboard products the propeller tips cut the air, the are user adjustable in transom length to... -
Page 17: Add Coolant
3.4 Fill Coolant before first time use 2. Fill the tank near full with car outboard (VERY IMPORTANT!!!) coolant. Please power on the outboard, open the outboard motor cover and fill the water tank with your local car coolant before first time running the outboard. -
Page 18: Storage And Maintenance
4 Storage and Maintenance 4.2 Replacement parts 4.1 Storing outboard motor EZ gear-less and shaft-less design makes it When storing your outboard motor for very unique, quiet, reliable, efficient and less prolonged periods of time (2 months or vibration. The new design also takes longer), several important procedures must be consideration of compatibility of installation, performed to prevent excessive damage. -
Page 19: Removing Propeller
4.3 Removing propeller 4.31 Spline models 4.32 Installing propeller 1. Straighten the cotter pin and pull it out using Be sure to use a new cotter pin and bend a pair of pliers. the ends over securely. Otherwise the 2. Remove the propeller nut, washer, and propeller could come off during operation spacer(if equipped). - Page 20 Propeller nut tightening torque: 17.0 Nm (1.73 kgf-m, 12.5 ft-lb) 4. Align the propeller nut with the propeller shaft hole. Insert a new cotter pin in the hole and bend the cotter pin ends. NOTICE: Do not reuse the cotter pin installed. Other-wise the propeller can come off during operation.
-
Page 21: Return And Repairs
ow the warranty does not apply 5 Return and Repairs Inadequate maintenance. We offer a flexible 7 day return policy and are Unauthorized alteration, modification or happy to accept items back for a refund or misuse. exchange if the items are damaged or faulty upon receipt or you simply don't like what ... - Page 22 Unauthorized changes/modification or tampering with any part of this product, or operation in any way other than as detailed in this User Manual, will render manufacturer’s warranty void. Golden Motor Technology Co.,Ltd. www.goldenmotor.com Website: sales@goldenmotor.com Email: Tel: 86 519 81004118 All rights reserved Golden Motor Technology Co., Ltd.
