Summary of Contents for Plus NF-20

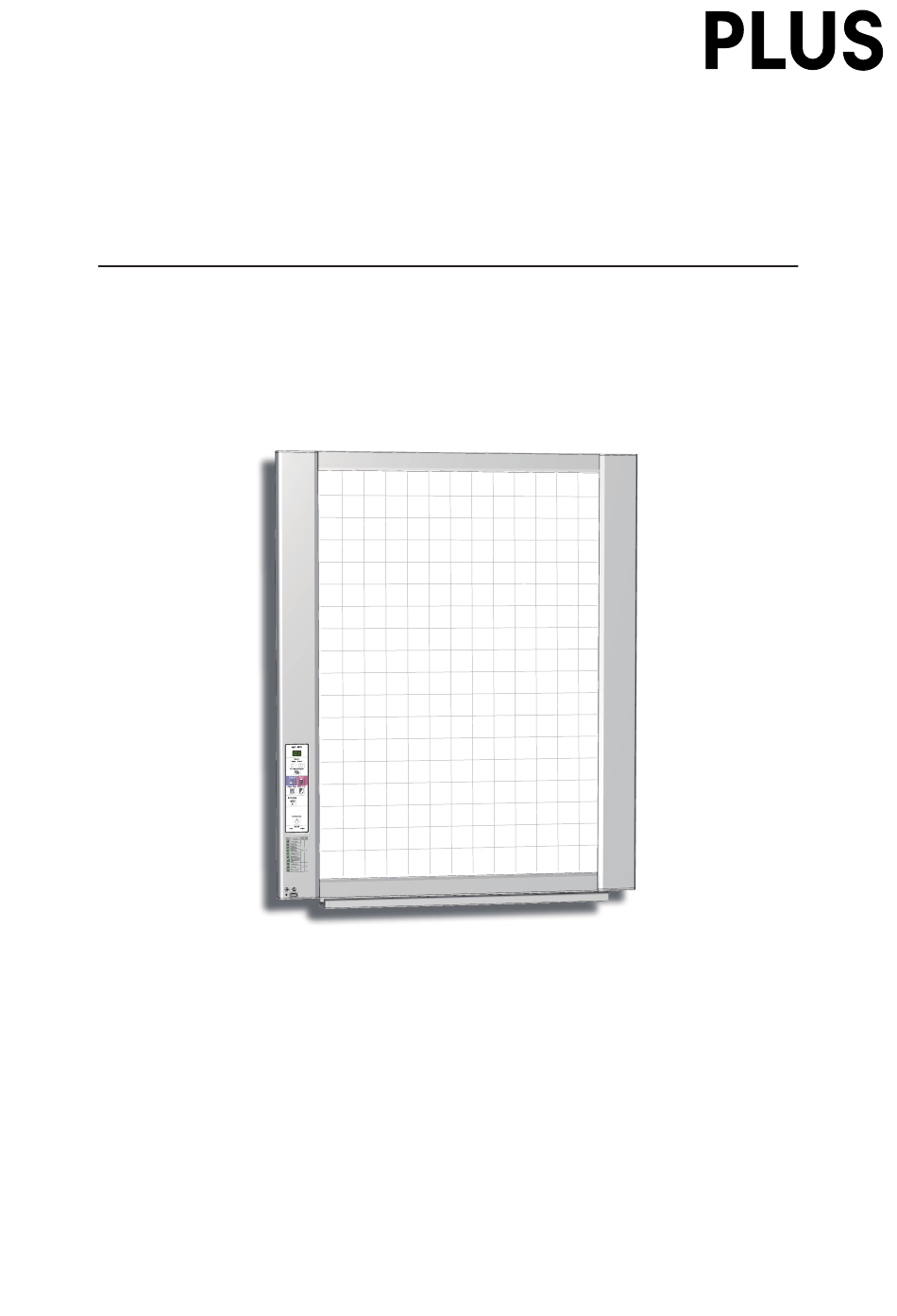

- Page 1 NETWORK FLIPCHART NF-20 User’s Manual Thank you very much for purchasing the “PLUS NETWORK FLIPCHART”. Please read this User’s Manual carefully before use to take full advantage of the functions of this product. After you have finished reading the manual,...
-
Page 2: Introduction
• Safari, Apple, Mac OS and Macintosh are trademarks or registered trademark of Apple Computer, Inc., of the United States. The trademarks of the various companies and the product trademarks, even when not written down, will be given due respect. Product names and company names appearing in this manual are registered trademarks or trademarks of the respective compa- nies. (1) The contents of this manual may not be reprinted in part or whole without permission. (2) The contents of this manual are subject to change without notice. (3) Great care has been taken in the creation of this manual; however, should any questionable points, errors, or omissions be apparent, please contact us. (4) Notwithstanding Section (3), this company will not be responsible for any claims of loss or profit or other matters deemed to be the result of using this unit. (5) The use of a printer as the peripheral device of the PLUS NETWORK FLIPCHART is taken to be a prerequisite; therefore, operation will not be guaranteed when the printer is used with a direct connection to a personal computer. (6) Manuals with incorrect collating or missing pages will be replaced. -
Page 3: Table Of Contents
Table of Contents Introduction ...............E-2 Creating and Registering Headers and Footers .. E-29 Package Contents ............E-4 Using the NETWORK FLIPCHART Connected to a Network ..............E-30 Names of the Parts ............E-5 Saving scanned images on the NETWORK Front ..............E-5 FLIPCHART or FTP server ........E-30 Input/output terminals .......... -
Page 4: Package Contents
Main unit [1] Pen tray [1] Pen tray fixing screws (M4 × 20) (temporarily fastened on main unit) NF-20: 2 screws (See the Assembly and Setup Manual for assembly instruc- tions.) NETWORK FLIPCHART Acces- USB cable(3 m) (type A ↔ type B) [1]... -
Page 5: Names Of The Parts
Names of the Parts Front Main unit Frame cover Sheet Dedicated markers are used on the sheet to draw diagrams and to write. Control panel (See Page E-8) Pen tray Input/output terminals (see next page) * Located on the bottom surface. Stand (sold separately) This is a stand for supporting the NETWORK FLIPCHART. (See the Assembly and Setup Man- ual). * This illustration does not show the connection cords. Effective Reading Size The area that can be copied is the gray area of the diagram. -
Page 6: Input/Output Terminals
Names of the Parts Input/output terminals USB memory port (type A) Connect a USB memory stick commer- cially available. Scanned images can be saved. (See page E-40) The connector is located on the bottom surface of the main unit. The diagram view is seen from the bottom. * This illustration does not show the printer or connec- tion cords. DC input connector Connect this with the DC plug end of the AC Personal computer (PC) dedicated power adapter. (See Page E-52.) (Only connect USB port (Type B) the supplied AC power adapter; nothing else.) Connect this with the USB port (type A) of the PC. - Page 7 Names of the Parts How to change the height and angle of the stand (sold separately) These adjustments are required when installing the main device on a stand sold separately. The device can be set at a height of 1650 mm or 1850 mm and at an inclined angle of 0, 7 or 10 degrees. CAUTION • At least two persons should hold the main unit. If not, the main unit could drop or tip, resulting in accidental injury.
-
Page 8: Control Panel
Names of the Parts ON/Standby ( ) button Control Panel Turns the NETWORK FLIPCHART’s power on and off (standby mode). When pressing a button, please press the center area Display window (the square bulge). The button may not work if it is pressed on a corner. - Page 9 Names of the Parts 12 Status The connection status of the main body, USB memory, network or printer is indicated by the on / off status of the lamps. When the function is working normally, the status lamp will light up in green. When there is an error, the status lamp will light up in red (see table below).
-
Page 10: Functions Of The Network Flipchart
Functions of the NETWORK FLIPCHART Basic Functions Network Functions ① Printing ⑤ Browsing images stored in the main body via the network Output to paper Browsing screens stored in the ② Storing on USB memory devices board main body ⑥ Viewing images stored on an FTP server via a network Storing on USB memory... -
Page 11: Operation Steps
Operation Steps The NETWORK FLIPCHART uses an image scanner to scan characters or diagrams drawn using special markers (four col- ors). When the Color Print or B/W Print button is pressed, the image on the screen is printed out to the printer. When a USB memory device or computer is connected, the image on the screen is saved as image data when the Save but- ton is pressed. -
Page 12: Setting The Time
Setting the Time The date and time are stamped on the printing paper and recorded in the file information when files are stored on the NETWORK FLIPCHART and FTP server, so set the NETWORK FLIPCHART’s time correctly. The time can also be set from a computer via a network (when connected to a LAN). (See page E-22.) Description of Operations Switch to “CB Setup”. - Page 13 Setting the Time While “F1” is displayed, press the Save button to enter. The display switches to “c1” (first 2 digits of year). If no buttons are operated for 10 seconds while in the time setting mode, the mode returns to the “CB Setup” mode. Press the Save button to move to the last dig- its of the year The display switches to “c2” (last 2 digits of year). Notice: The first two digits of the year (“20”) are fixed. Simply press the Save button to switch to the last 2 digits of the year setting position.
-
Page 14: Cb Setup And Network Setting Procedure
CB Setup and Network Setting Procedure There are three ways to make the device settings: using the NETWORK FLIPCHART’s operation buttons to make the settings (“CB Setup”), making the settings using a USB connection (simple network settings, and making the settings via LAN (detailed settings: “CB Setup” and “Network Setting”. CB Setup (operating the NETWORK FLIPCHART’s buttons) Basic setting operation • Check that the power is on (that the display window is lit). -
Page 15: Table Of Function Numbers And Settings
CB Setup and Network Setting Procedure Table of Function Numbers and Settings Function Setting Item Description Setting Status Indicators Number The date and time are stamped on the printing paper Year, month, Not lit Time Setting and recorded in the file information when files are day, hours, stored. minutes Selection of whether to print in A4 paper size or letter Printer size. (Lit) (Off) Paper Size • This operates when the NETWORK FLIPCHART is Letter Printer... - Page 16 CB Setup and Network Setting Procedure Function Setting Item Description Setting Status Indicators Number Setting of whether or not to notify the user that char- Disable* Printer acters or diagrams drawn on the back side of the (Lit) (Off) NETWORK FLIPCHART’s sheet surface have not Enable Printer been erased. This is effective for confidential meet- (Off) (Lit) ings, etc.
-
Page 17: Simple Network Settings (Via Usb
2 Double-click the NETWORK FLIPCHART (a device displayed as a removable disk) to open the NETWORK FLIP- CHART’s computer storage memory. • T o check that the NETWORK FLIPCHART is operating as a device, right-click “My Computer” (or “Computer”) to display the menu, then check that “PLUS NETWORK FLIPCHART USB Device” is displayed as the disk drive name at “Management” → “Device Manager” for Windows 7 (“Properties” → “Device Manager” for Windows XP). Use a program on the computer (Notepad, etc.) to open the “setting.ini” file in the “setup”... - Page 18 CB Setup and Network Setting Procedure Contents upon purchase and when network settings are reset IP Address=* Input the IP address (fixed). Subnet Mask=* Input the subnet mask. Default Gateway=* Input the default gateway if necessary. Item Item name Setting Default IP address IP Address Any value Blank Subnet mask Subnet Mask Any value Blank Default gateway Default Gateway Any value Blank Save the “setting.ini” settings file, overwriting the previous file.
-
Page 19: Making Detailed Settings (Via Lan
CB Setup and Network Setting Procedure Making Detailed Settings (via LAN) Use this procedure to make the NETWORK FLIPCHART device settings (“CB Setup”), network settings, etc., with the NETWORK FLIPCHART connected to a local area network (hereafter referred to as “LAN” or “the network”) using a computer’s web browser. Access authority is required to make the detailed settings. There are three levels of authority – “administrator authority”, “file list browsing authority” and “no authority”, and the selectable menu items (some setting items) are restricted accordingly. Register the administrator and users at “User Setting” on page E-25. Table of Menu Items and Access Authority Levels Menu Item Some Setting Items Administrator Authority File List Browsing No Authority Authority • • • CB Setup • • Board File List Preview and Download — • Delete —... - Page 20 CB Setup and Network Setting Procedure Input the NETWORK FLIPCHART’s IP address. In the web browser’s URL field, input “http://” followed by the NET- WORK FLIPCHART’s IP address, then press the [Enter] key. When the NETWORK FLIPCHART is connected, the top screen appears. Connecting the NETWORK FLIPCHART to the network upon purchase Upon purchase, the NETWORK FLIPCHART’s IP address and sub- net mask are not yet set. Be sure to check the section “Simple Net- work Settings (via USB)” (see page E-17) and set the IP address, etc.
- Page 21 CB Setup and Network Setting Procedure Make the changes or settings. The screen at the right is an example of what may be displayed, here showing the “CB Setup” page. Selecting and inputting Radio buttons One of the selection items can be selected. When is clicked, it switches to . Input boxes When a box is clicked, the arrow cursor switches to the “ | ” char- acter input cursor. Input characters in the same way as you would on a computer. • The characters that can be input are restricted according to the item’s type of setting. (See page E-23) Browse and Upload buttons See “Header/Footer”. (Page E-29) Setup button When clicked, the settings/changes are sent to the NETWORK FLIPCHART, overwriting previous settings.
-
Page 22: Cb Setup
CB Setup and Network Setting Procedure CB Setup This is the page where the NETWORK FLIPCHART’s various functions are set and changed. The settings are the same as on “Table of Function Numbers and Settings” in the section on making the settings operating the NETWORK FLIPCHART’s buttons. (For instructions on displaying the screen, see “Basic Setting Operations” step 3 on page E-20.) NETWORK FLIPCHART Setting/Description Default Setting Item Paper size Select the printing paper size. Aspect Ratio Setting Select the aspect ratio for printing. Match to printing paper size Time Date Stamp Set the NETWORK FLIPCHART’s date and time. -
Page 23: Header/Footer
CB Setup and Network Setting Procedure Header/Footer This is the screen for registering headers and footers on the NETWORK FLIPCHART and checking the image. (For instructions on displaying the screen, see “Basic Setting Operations” step 3 on page E-20.) Image Select screen Preview screen Image Select/Preview Item Setting/Description Default Select Header/Footer Select whether the image to be registered on the NETWORK FLIP- Header Image CHART is a header or footer. Click the radio buttons to select. • For instructions on creating images, see page E-45. Browse When the [Browse] button is clicked, the computer’s “Browse Files” —... -
Page 24: Network Setting
CB Setup and Network Setting Procedure Network Setting Make the settings for the NETWORK FLIPCHART’s IP address, the FTP server’s IP address, etc. (For instructions on displaying the screen, see “Basic Setting Operations” step 3 on page E-20.) Network Setting Item Setting/Description Default IP address Change the NETWORK FLIPCHART’s IP address. Use a fixed IP Any value address for the NETWORK FLIPCHART. When connecting to a network using the DHCP of a router, etc., change the IP address to one that is outside of the automatic acquisition range Subnet Mask Set the NETWORK FLIPCHART’s subnet mask. Any value Default Gateway Set the NETWORK FLIPCHART’s default gateway. Any value Folder for saving Set the folder in which the NETWORK FLIPCHART’s scanned images Board are saved. -
Page 25: User Setting
CB Setup and Network Setting Procedure User Setting Set the user name and password required for administrator and user verification and the number required for resetting the network settings. (For instructions on displaying the screen, see “Basic Setting Operations” step 3 on page E-20.) User Setting Item Setting/Description Default Admin User name Set the administrator’s user name. admin • Input using no more than 14 characters. The name will be case sensi- tive for verification. Admin Password Set the administrator’s password. None • Input using no more than 14 characters. The password will be case sensitive for verification. User Name Set the user name. admin The limit to the number characters that can be input is the same as for the administrator’s user name. -
Page 26: Security Setting
CB Setup and Network Setting Procedure Security Setting These security settings can be made to restrict access to setting items. For this page, the security settings page cannot be displayed unless [Administrator Menu] is clicked and the administrator’s user name and password are input on the verification screen. (For instructions on displaying the screen, see “Basic Setting Operations” step 3 on page E-20.) Security Setting Item Setting/Description Default USB Memory Set whether or not to enable or disable saving on USB memory devices. Valid PC connection (USB) Set whether or not to enable or disable saving in a computer storage Valid memory. Network Storage Set whether or not to enable or disable transfer of image files to network Valid storage (folder for saving: “Board” or “FTP Server”) to a computer or FTP server. Notice: • When set to “Invalid”, the network storage memory is formatted. -
Page 27: Disk Management Setting
CB Setup and Network Setting Procedure Disk management Setting The amount of disk space used can be checked, the disk can be checked and the disk can be formatted here. (For instructions on displaying the screen, see “Basic Setting Operations” step 3 on page E-20.) Disk Management Setting Setting/Description Default Item Disk Usage This displays the amount of network storage memory used (in percent- — age). Disk Check When the [Disk Check] button is clicked, checking of the network stor- — age memory starts. When checking is completed, the results of the check are displayed. If a warning is displayed, format the disk. Disk Format When the [Disk Format] button is clicked, the disk is formatted. — Notice: • Transfer important image files to a computer before formatting. CB Information This displays the contents of the detailed settings made on the NETWORK FLIPCHART and the NETWORK FLIPCHART’s firm- ware version. -
Page 28: Resetting The Network Settings
CB Setup and Network Setting Procedure Resetting the Network Settings Operate the buttons on the NETWORK FLIPCHART to reset the network settings to their defaults. Setting items that are reset: A dmin User name, Admin Password, User Name, Password, IP Address, Subnet Mask, Default Gate- way, Folder for saving, FTP User Name, FTP Password, FTP Server IP Address, FTP Server Port, FTP Save Directory Name Notice • Once reset, the network settings cannot be restored. While pressing the ON/Standby button, press the Network button. The NETWORK FLIPCHART switches to the network settings reset mode and “00” flashes on the display window. -
Page 29: Creating And Registering Headers And Footers
CB Setup and Network Setting Procedure Creating and Registering Headers and Footers The header/footer function allows you to superimpose your company name, logo, etc., at the top or bottom of scanned images for printing or display. The date and time are printed at the top right of the header. Creating header and footer images Use your image software to create a JPEG file. Create the image with the resolutions below. Max. size for header images: 1248 × 110 dots * Image format: JPEG Max. size for footer images: 1248 × 40 dots Image format: JPEG * This is sometimes expressed as “pixels”. Note • Even for image data whose resolution is within the allowable limits, it may happen that the top and bottom of the image are not displayed. Image display position Images are displayed at roughly the center in the horizontal direction. In the vertical direction they are positioned next to the scanned image area. Consider this when creating images with less than the maximum size. -
Page 30: Using The Network Flipchart Connected To A Network
• The NETWORK FLIPCHART will not operate properly if the firewall is activated. The following explanation assumes that the LAN cable has been connected and the various network settings have been completed. Saving scanned images on the NETWORK FLIPCHART or FTP server Model name: NF-20 Preparations : Check that the power plug is connected to a wall power outlet. Press the ON/Standby button to turn on the power. - Page 31 Using the NETWORK FLIPCHART Connected to a Network Press the Network button to save the image. LEDs flash in circular motion during saving [Display window] • After scanning (scrolling) one or both sides of the sheet is completed*, the data is then stored at the storage location set up in the network settings. * Differs depending on whether it is set up for single-sided or double-sided scanning. (refer to Page 32) For instructions on selecting the save to location, see “Network Settings” on page E-24. Note • Depending on the network communications conditions, some time may be required for identification and storage. • If “E8” flashes (for about 5 seconds), “Invalid” is set at “Security Setting” → “Network Storage”. (See page E-26.) • If “L1” to “L5” flashes (for about 5 seconds), this indicates that the network settings are incorrect. (See page E-48.) • If “FL” flashes (for about 5 seconds), there is not enough space in the save to location. Delete image files to pro- vide space. (See pages E-37, E-38.)
-
Page 32: How To Store Images Of Both Sides
Using the NETWORK FLIPCHART Connected to a Network How to store images of both sides The double-sided full scan is a function to scan the information written on the front and back sides together and then store the image data in a single file. When the power supply is first switched on, the device is set up for single-sided scanning. -
Page 33: Transferring Image Files To/Deleting Them From The Computer
Using the NETWORK FLIPCHART Connected to a Network Transferring image files to/deleting them from the computer Image files stored in the folder for saving (“Board” or “FTP Server”) can be transferred to your own computer. The operation differs according to the setting for where scanned images are stored. (See “Network Settings” on page E-24.) The image files are saved in JPEG, PNG (default) or PDF format, according to the image format setting. - Page 34 Using the NETWORK FLIPCHART Connected to a Network Click the desired date. • Image files are managed in groups by date (the date the scanned image files were saved). Because of this, display the date list. • Check that “Download” is selected for the [Download/Delete] selection button. When “▾” is clicked, a pull-down list is displayed. Click [Down- load]. [Download/Delete] selection button From the file list, select the image to be transferred to the computer. When the radio button is clicked, it is checked and a preview...
-
Page 35: Deleting Image Files From The Network Flipchart
Using the NETWORK FLIPCHART Connected to a Network Deleting image files from the NETWORK FLIPCHART Notice • When “Invalid” is set at “Delete User Image Data” in “Security Setting”, files cannot be deleted. This can be changed to “Valid” with the administrator’s authority. (See page E-26.) Perform steps 1, 2 and 3 on page E-33 to display the file list screen. -
Page 36: When The Folder For Saving Is Set To "Ftp Server
Using the NETWORK FLIPCHART Connected to a Network When the folder for saving is set to “FTP Server” When the folder for saving is set to “FTP Server”, the scanned images are saved on the FTP server connected on the network. Transfer these images onto the computer connected on the network. The following explains how to transfer the files using Explorer on the computer. Click the computer icon or, from the Start menu, click “Computer”. Explorer opens. Log in to the FTP server. Click on Explorer’s address field, input the FTP server’s IP address after “ftp://”, then press the [Enter] key. -
Page 37: Deleting Image Files On The Ftp Server
Using the NETWORK FLIPCHART Connected to a Network Note • Logging in to the FTP server from a web browser The procedure is the same as for “When the folder for saving is set to “Board”” on page E-33. However, to log in, input the FTP server’s IP address (input “ftp://”, then input the IP address), and at the verification screen input the user name and password registered on the FTP server. Deleting image files on the FTP server At step 4 on the previous page, select the folder(s) or image file(s) to be deleted, right-click the mouse to display a pull-down menu and select “Delete”. At the verification screen, click “Yes”. The folder(s) or file(s) are deleted. If folder(s) or file(s) cannot be deleted • Is access to the FTP server’s folder restricted? Notice • Be very careful when deleting folders or files from the FTP server. • Check again before deleting to avoid accidentally deleting other folders or files. E-37... -
Page 38: Using The Network Flipchart Connected To A Computer
Using the NETWORK FLIPCHART connected to a computer When the NETWORK FLIPCHART and a computer are connected by USB cable, the NETWORK FLIPCHART is recognized as an external memory device (removable device). Below is the procedure for copying the “CBIm- age”... - Page 39 Using the NETWORK FLIPCHART connected to a computer On the computer, open “My Computer”, and from there open the NETWORK FLIPCHART identified as a removable device. (1) Double-click the “My Computer” (or “Computer”) icon to open (2) When the device icon for the NETWORK FLIPCHART (dis- played as a removable disk) is double-clicked, the NETWORK FLIPCHART’s internal memory opens. The “CBImage” file is the scanned image file (“.jpg”, “.png” or “.pdf”, according to setting).
-
Page 40: Using Usb Memory
2. USB flash memory devices protected by a security function cannot be used. 3. USB memory devices with multiple drives or partitions cannot be used. USB Memory Storage Procedure Preparation: Check that the NETWORK FLIPCHART’s AC power plug is connected to a wall power outlet. Press the ON/Standby button and switch on the power. Model name: NF-20 Note • When turning on the power, wait about 5 seconds or more after the power plug has been connected before pressing the ON/Standby button. • Press the ON/Standby button to switch on the power. The LED of the display window will light. Connecting a USB memory stick to the USB memory port of the main device Notice • Check the orientation of the USB mem-... - Page 41 Using USB Memory Press the Save button to store. Flashing indicator “rotates” sequentially during USB memory storage operation. Display window • When the USB memory device is connected, the USB Status indicator on the main unit display panel lights green. Check that it is lit before pressing the Save button. • After scanning (scrolling) of one or both sides of the sheet is completed*, the data is then stored in the USB memory stick. When the data is being saved in the USB memory stick, the displays in the display window will blink sequentially in a clockwise direction. * Differs depending on whether it is set up for single-sided or double-sided scanning. (refer to Page 32) The (5 second) flashing “US” display indicates that the USB memory has not been inserted. Please insert the USB memory and then press the Save button.
-
Page 42: Saving Image Files On A Computer/Deleting Image Files
Using USB Memory Saving Image Files on a Computer/Deleting Image Files Examples of operations follow for saving the image files in the USB memory device to the hard disk of the per- sonal computer, and for deleting the folder when the USB memory capacity is full. (There are various methods that can be used for saving and deleting including the use of Explorer.) See the instruction manual of your per- sonal computer or the software that you are using for information about using a personal computer. - Page 43 Using USB Memory Deleting USB memory image files with the com- puter Before deleting important image files, be sure to save them on the computer (as a data backup). Open “My Computer (or “Computer”)” and then open the drive icon which shows USB memory.
-
Page 44: Printing (Printer Sold Separately
Printing (printer sold separately) Use a printer (sold separately) to print the data on the sheet surface. Use a PLUS-designated printer. Operations and names of parts differ from printer to printer. For details of operations, see your printer’s operat- ing instructions. -
Page 45: Basic Printing Operation
Printing Model name: NF-20 Basic Printing Operation Preparation: Preparation: Check that the AC power plugs of the NETWORK FLIPCHART and printer are connected to wall power outlets. Press the ON/Standby button and switch on the power. Prepare the printer. (See the previous page.) Note • When turning on the power, wait about 5 seconds or more after the power plug has been connected before pressing the ON/Standby button. - Page 46 Printing Press the Number of Copies button and select the number of copies. The text written on the front and back sides can be printed on a single sheet of paper. Page 32 “How to store images of both sides” Note • “01” is selected when the power is turned on. • Up to 10 copies can be specified and displayed on the display window. • The number of copies increases by 1 each time the Number of Copies button is pressed, and “ ” is displayed after “10” (this is used for test printing: see page E-50). When the button is pressed again, the display switches to “01”. The number switches continuously if the button is held in. • After setting the number of copies, proceed to step 4 within 1 minute. The number of copies is reset to “01” if no operation is performed within 1 minute. Press the Color Print or the B/W Print button to print. • Scan (scroll) one or both sides of the sheet and then print out the image. Cancellation of the print operation in progress When the ON/Standby button is pressed, the reading of the sheet stops, and the partially read image data is printed.
-
Page 47: Meaning Of Error Messages
When the “USb” letter display is • Did you press the ON/Standby button • A USB memory device is plugged into flowing...Warning that disconnec- while the USB memory device was plugged the main unit. When the USB memory tion of USB memory has been for- into the main unit? device is disconnected, the power will gotten be switched off and the unit will enter the standby mode. If the problem persists, please contact your nearby PLUS Corporation sales office, dealer, or store. E-47... - Page 48 Meaning of Error Messages Network (main unit) related errors Error Display Number Problem and Solution LAN cable dis- • No cable is connected to the LAN terminal. • Connect the LAN cable properly. connected FTP server rec- • The user name or password is wrong. • Input the correct user name and pass- ognition error word. (See page E-24.) FTP server con- • The FTP server’s IP address is wrong. • Consult the network administrator then nection failure set the FTP server’s IP address. (See page E-24.) FTP server writ-...
-
Page 49: Troubleshooting
When the NETWORK FLIPCHART and PC • Check whether the NETWORK FLIPCHART is in an operable condition, and are connected, the PC does not recognize whether the USB cable is connected properly. the NETWORK FLIPCHART • Is the NETWORK FLIPCHART connected to the PC via a USB hub? (Connect the NETWORK FLIPCHART directly to the USB port of the PC.) The date is not updated. • The NETWORK FLIPCHART’s battery is dead. Contact your store of pur- chase. * If the problem persists, please contact your nearby PLUS Corporation sales office, dealer, or store. Condition Please Check The NETWORK FLIPCHART’s power turns • Check whether the printer’s power plug (DC plug) is securely inserted. on, but the printer’s power does not. If power still cannot be switched on despite doing so, check whether the AC power adapter plug of the printer in the adapter holder is disconnected from the AC power adapter (depending on the printer, direct connection may be possible). Printing is not possible when Color Print (or • Check that the power cable of the printer and the printer cable are securely... - Page 50 • Is “Caps Lock” set on the computer’s keyboard while inputting the user name and password? Test Printing 1) With the NETWORK FLIPCHART’s power on (with the display window lit), press the Number of Copies button repeatedly to display “ ” on the display window. 2) Press the Color Print ( ) button for a color print, the B/W Print ( ) button for a black-and-white print. * Test printing starts. Check the print • Is the each color line printed uniformly? • Are there missing dots, pale lines, lines with thinner ink than others, etc.? Remedy • If the nozzle is partially choked, clean it. • If the quality of the print does not improve even though the nozzle has been cleaned, wipe off the ink on the surface of te nozzle. For details, see the “User’s Guide” included with the printer. * Please see your printer manual for information about printing problems, printer maintenance, and details related to printing. Updating the NETWORK FLIPCHART’s internal program See the PLUS website for instructions on updating the program and to download the latest program. E-50...
-
Page 51: Specifications
Specifications BOARD TYPE (Model name) NF-20 Installation method Wall-hanging or self-standing type (T-legged)* External dimensions (T-shaped W830 × D72 × H995 mm legs*¹) Main unit weight 10 kg Form External dimensions of the T-legged stand (including the W830 × D674 × H1850*... -
Page 52: Appendix
Appendix Connections and Wiring Diagram • The connections and wiring diagram below is included here for checking the connections. [NETWORK FLIPCHART and Printer Connections Diagram] NETWORK FLIPCHART front panel To DC INPUT connector To Printer connector USB cable (supplied with the printer) Printer To USB connector To DC connector Printer AC power adapter AC power adapter (supplied) (supplied with the printer) To wall power outlet * Appearance of printer is for illustration purposes. Note • The AC power adapter of the printer may differ from the model shown in the connection diagram (in-built type, assembly type). E-52... - Page 54 26-5675-13E...
