Summary of Contents for Hui Zhou Boshijie Technology OTRACK-2
-
Page 1: User Manual
OBD GPS Tracker (GPS+GSM+SMS/GPRS) User Manual (OTRACK-2) This user manual has been specially designed to guide you through the functions and features of your GPS vehicle tracker. -
Page 2: Table Of Contents
Content 1. Products Components and Port Definition..............3 1.1 Product Introduction....................3 1.2 Product Configuration List..................3 1.3 Indicating Led Light....................4 2. Specifications........................4 3. Functions........................5 4. Method of Installation....................6 5. Setup and Operation.....................6 5.1 Unit Setup........................6 5.2 SMS Command for Online Tracking Setup..............7 6. -
Page 3: Products Components And Port Definition

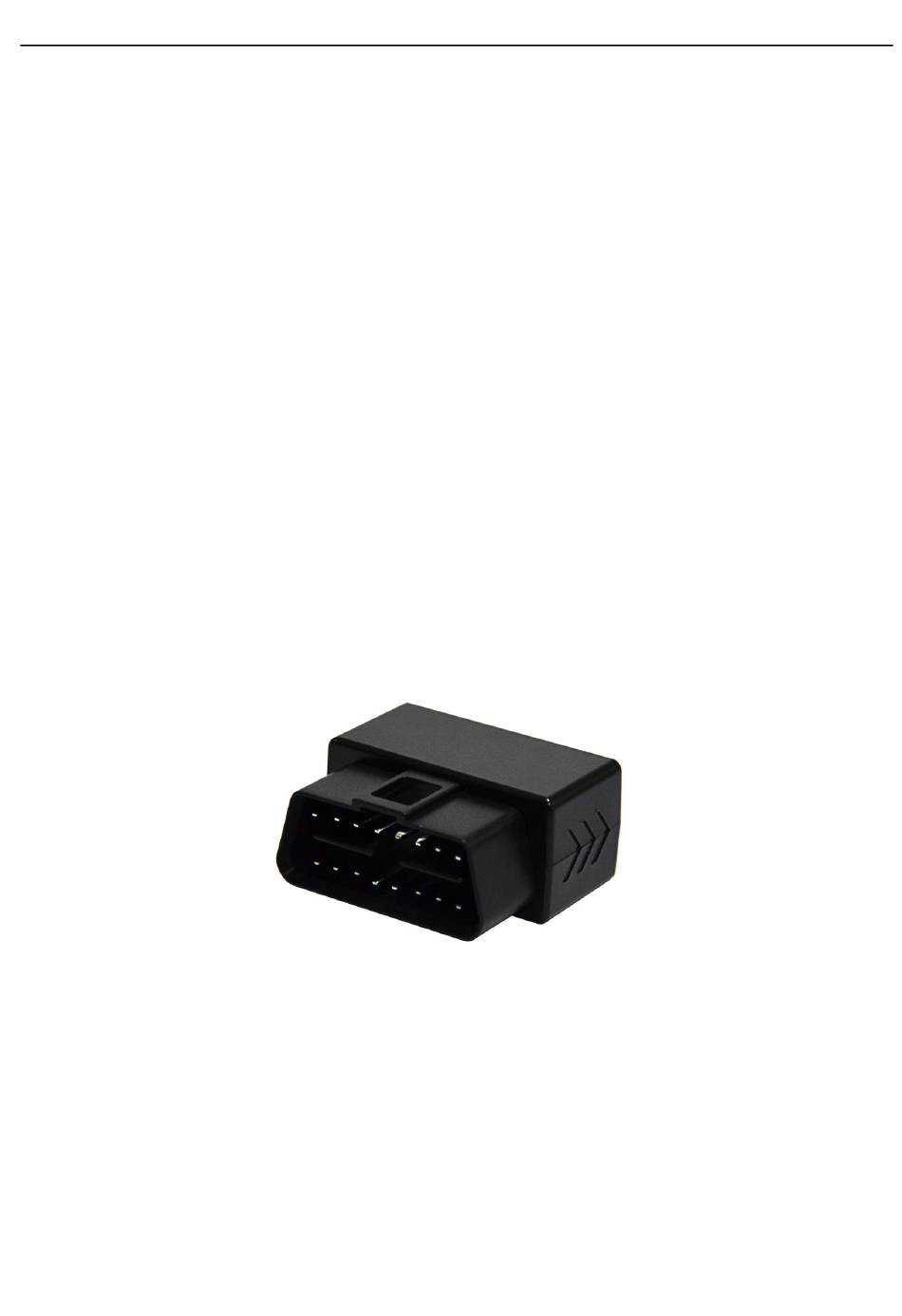

OTrack-2 Size L45*W39**H22mm Otrack-2 is a mini, practical and easy-to-use vehicle GPS tracker specially designed for vehicle tracking with fine workmanship. It combines GPS+LBS communication technology. With AGPS technology, this device can easily achieve extreme fast positioning. 1.2 Product Configuration List... -
Page 4: Indicating Led Light
1.3 Indicating Led Light Flash fast：GSM in the Initializing Flash slowly：GSM signals is normal Light long：GPRS online （Red） Not light：Not yet received the GSM signal/not insert SIM card/GSM dormancy Flash fast：Searching for GPS signals Long bright：GPS has been positioning （Yellow） Not light：GPS dormancy/not working 2. -
Page 5: Functions
3. Functions Functions Function details Description According to the set interval time, the default motion mode is Tracking Real time tracking reported to a position data in 30s, and the static mode 300s reports a position data. When device checking the voltage is lower than 5V it will have power Power down alarm down alarm Alarm... -
Page 6: Method Of Installation
4. Method of Installation Device wiring diagram: Connected to Power 5. Setup and Operation 5.1 Unit Setup (1) Check unit Please check whether the equipment is in good appearance & whether accessories are completed. (2) Set In SIM Card Please press out the SIM card slot and put SIM card in. Please not put SIM card in or out when the equipment is connecting power. -
Page 7: Sms Command For Online Tracking Setup
5.2 SMS Command for Online Tracking Setup Exactly format: <SPBSJ*P:BSJGPS*T:120.025.232.237,7788*A:CMNET*N:13288888888*C:0030*O:300> Note: Red fonts, according to actual changes. SPBSJ Header *P:BSJGPS Password (default password is: BSJGPS) *T:120.025.232.237,7788 TCP IP and Port *A:CMNET CMNET is APN *N:13288888888 Device’s serial number *C:0030 ACC on time interval (seconds) *O:300 ACC off time interval (seconds) 6. -
Page 8: Attention
7. Attention 1. Stay away from water 2. Please keep the car battery fully charged 3. Device working current is 9-36V, recommended 12V and 24V. Tracker will damage if the current is over this range. 4. Working temperature is -25to 75centigrade, Please cut off power if the temperature is over this range.
