- Page 1 SOLAR MICRO INVERTOR INSTRUCTION MANUAL POWER TO THE PEOPLE...
-
Page 2: Product Series

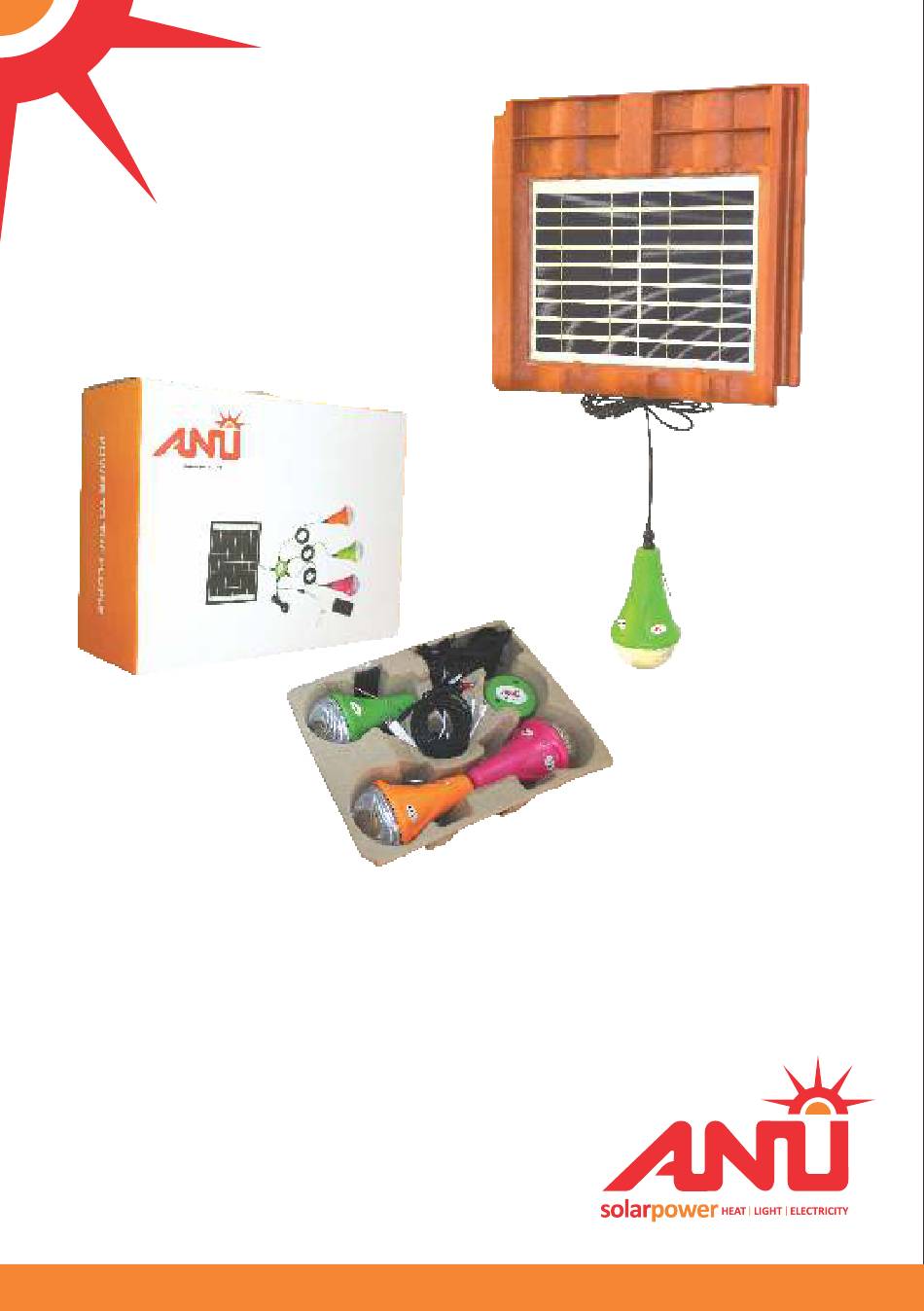

PRODUCT SERIES Micro Invertor Kit has two functions: 1. It’s a complete solar lighting kit - comes with 3/2/1 LED lamps for each set The solar panel absorbs energy from the sun and charges a built-in Lithium battery in the lighting bulb. - Page 3 PRODUCT PACKING INFORMATION The carton contains the following items: 3W LED Lamp Hub5, plug & play with dimming function inter-connection box with additional expansion terminal USB Charger plug for different type mobile and Mobile charger with USB cable (2m) Solar panel with 480cm cable DC cable with bayonet plugs (480cm) Remote controller and ceiling rose...
- Page 4 HOW DOES THE SYSTEM WORK? With remote control adjustment 1st, 100% brightness, 300lm working for 3-4 hours 2nd, 50% brightness, 150lm working for 8-12 hours 3rd, 10% brightness, 30lm working 30-40 hours One button control adjustment Every time presses the button reduces the brightness level Press the button at the first time for three seconds to turn on the power, the...
-
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS Planning the installation Before beginning to install the system, please consider where you would like to suspend the lighting and the solar panel’s location on or near the roof. The Solar panel needs to face the equator, so choose the correct side of the roof. - Page 6 INSTALLATION INSTRUCTIONS Connecting the cables Put the cable end into the round Connector, do revolve the end of terminal toward right to make sure the plug is locked up with connector, otherwise the light will not charge normally. Remarks: Each cable end can be removed from the round connector after fully charged, 1/2/3 lamp(s) can be taken anywhere you need lighting.
-
Page 7: Specifications
SPECIFICATIONS Brightness 100% output 50% output 10% output Working time Battery capacity 2600mah 3 hours 12 hours 40 hours Light out put loss 7% after 5years 4% after 5years 2% after 5years CONFIGURATIONS No. of LED Choice Solar Panel Battery Capacity (mah) 3 watts *3 1 pcs solar panel/3bulbs... - Page 8 Anu Solar Power Pvt. Ltd. #248, 3rd Phase, P.I.A, Bangalore - 560 058 | Ph: +91-80-43550200 Customer Care: +91 80 43550203 (24x7 IVR Support)
