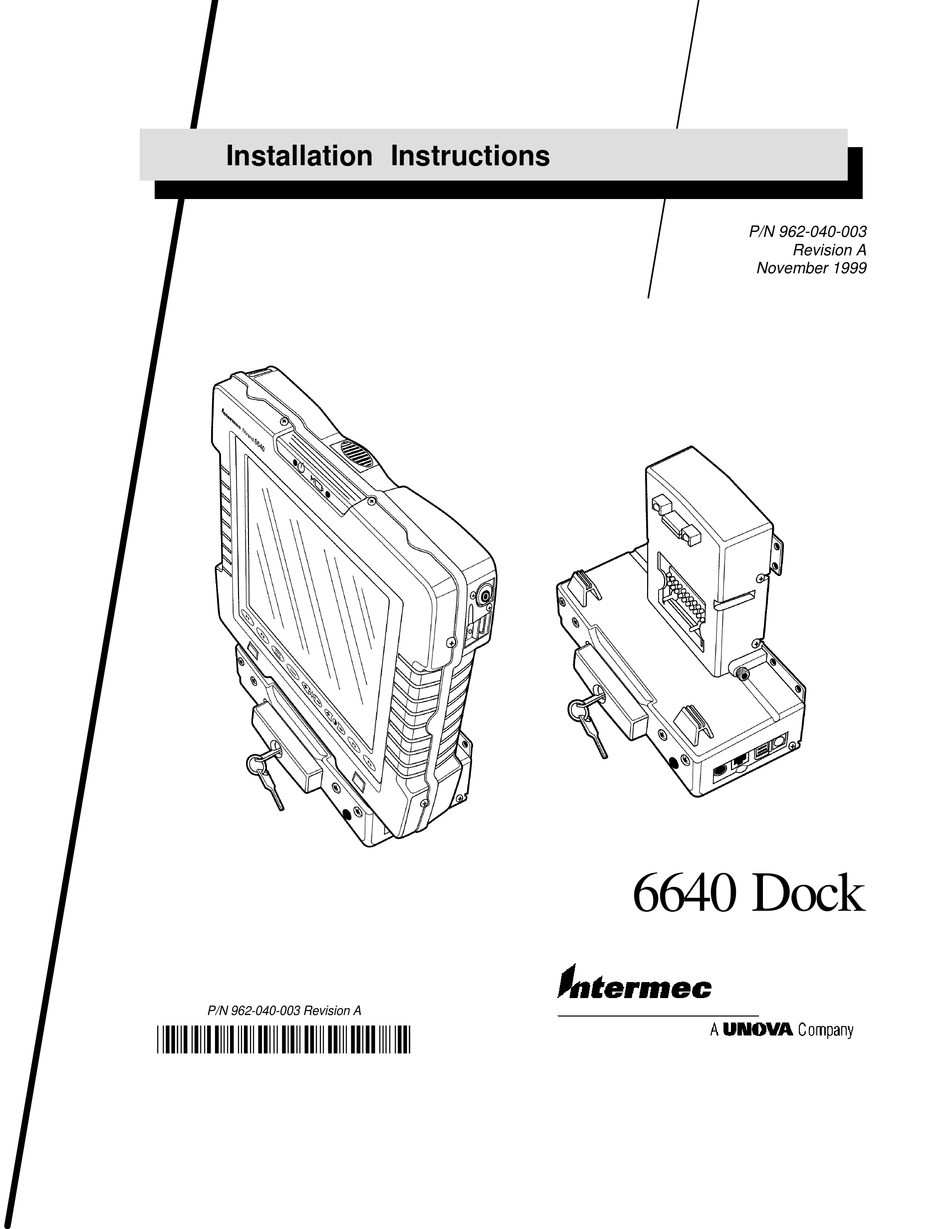

- Page 1 Installation Instructions P/N 962-040-003 Revision A November 1999 6640 Dock P/N 962-040-003 Revision A *962040003*...
-
Page 2: Available Mounts
Introduction These instructions provide useful information for installing and using the 6640 Vehicle and In Premise docks. Numerous threaded inserts are provided on both the rear and bottom of these docks to accomodate existing mounting device hole patterns. These de vices can be ordered through your Intermec sales representative, or you may use the in formation and dimensions in obtaining mounting devices from a third party supplier of your choice. - Page 3 Connectors Docks can be configured with various connector combinations. A composite dock is shown below. All possible connectors are shown. Bottom View 1. Parallel port, LPT1 (25-pin, printer) 2. COM port, RS-232 (9-pin) 3. General purpose I/O port, (15-pin) 4. DC power input (vehicle dock only) 5.
- Page 4 Docking Procedures Note these four items in the illustrations below: (1) alignment recesses, (2) alignment wedges, (3) gripper, (4) dock latch. Follow these instructions to successfuly dock your 6640 Computer: DOCKING 1. Place alignment recesses (bottom of the computer) onto the wedges (top of dock). 2.
- Page 5 INFORMATION The following pages contain dimensional information and drawings to help plan mounting locations for the 6640 docks. Engineering drawings are pre liminary and may be incomplete. Illustrations found on later pages show hole patterns for various available dock mounting brackets. Pay close atten tion to the CAUTION notices: screws that penetrate inside the dock must not go deeper inside than indicated.
- Page 8 Thru-hole Pattern *allows mounting to wall, plywood, or metal bulkhead *8 holes, 0.188” diameter Note " 4.585” Only the holes for this pattern are shown below. " 2.293” .750” " 2.659” " 1.262”...
- Page 9 Three-hole Pattern *1/4-20 threads, 3 holes Note Only the holes for this pattern are shown below. 1.191” " 2.063” CAUTION Maximum screw penetration is 1/4 inch in from outside surface to prevent damage to internal components.
- Page 10 Four-hole Pattern (see next page) *1/4-20 threads, 4 holes (rear) *#10-32 threads, 2 holes (bottom) Note Only the holes for this pattern are shown below. 1.283” " 2.567” 4.0” CAUTION Maximum screw penetration is 1/4 inch in from outside surface to prevent damage to internal components.
- Page 11 Four-Hole Adapter Bracket In the arrangement below, a custom adapter bracket aligns to the four hole pattern on the back of the dock. The two bottom holes should also be used for stability.
- Page 12 Six-hole Pattern #6-32 threads, 6 holes Note Only the holes for this pattern are shown below. 1.458” " 1.458” " 1.0” 1.0” CAUTION Maximum screw penetration is 3/8ths inch in from out- side surface to prevent damage to internal components.
- Page 13 Bottom Pattern #6-32 threads, 4 holes Note Use this hole pattern to install the keyboard tray on the front of the dock. The keyboard tray is shown on the next page. 1.372” 2.981” 1.372” 2.981” CAUTION Maximum screw penetration is 3/8ths inch in from out- side surface to prevent damage to internal components.
- Page 14 Keyboard Mounting Tray Install the keyboard tray: 1. Remove the front four screws that fasten the bottom plate to the dock. 2. Attach the keyboard tray to the bottom of the dock using those four screws. (use a threadlocker such as Loctite Surface Curing Threadlock"...
