Lorex HomePlug LNH1200-2PK Quick Connection Manual

HOMEPLUG - Power Ethernet Bridge
Connect your Network over the existing Power Line
Lorex HomePlug LNH1200 enables you to expand your computer network using the existing electrical wiring within your home. The
LNH1200 will replace any additional network wiring you planed, simply connect one adaptor to your router and plug it into an existing
power outlet to turn other power outlet in your home into a possible network connection. It allows you to connect your Network Cameras,
Computers and other network and gaming devices as they were wireless and share Internet connections, printers, transfer files and
monitor your cameras.
LNH1200-2PK kit includes the following:

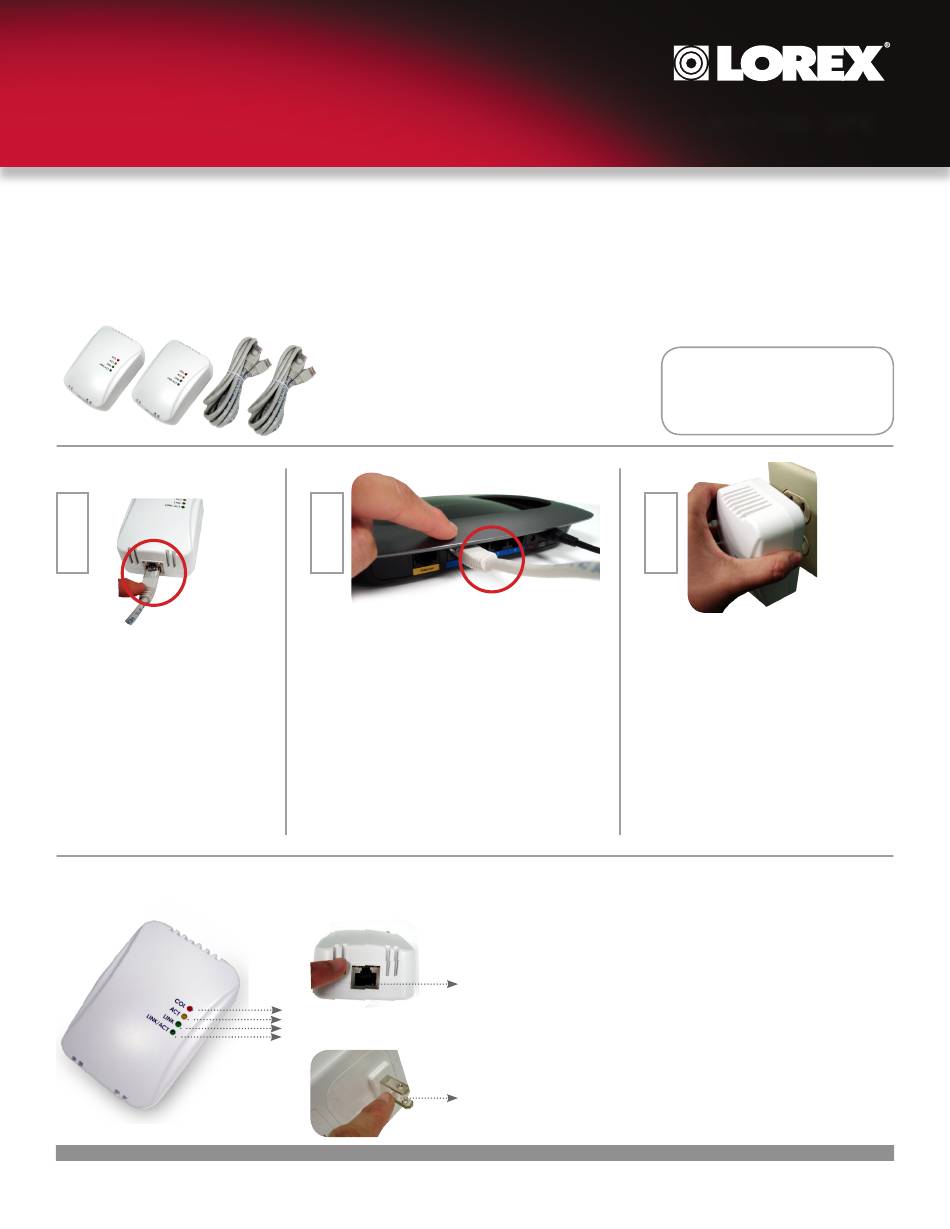

Quick Connection:
1
Connect one end of the included
Ethernet Cable to the Ethernet
port at the back of the HomePlug.

Indicator Lights:

Top View
Page 1
2 - Homeplugs 200Mbps
2 - Ethernet Cables
2
Connect the other end to one of the Ethernet
port's located at the back of your router.
Rear View
5
1
2
3
Back View
4
6
LNH1200-2PK
Quick Connection Guide_R1
HomePlug is compatible with all
type of IP Cameras. Please visit the
product page for this model at www.
3
Connect the other included HomePlug
Ethernet Adaptor to a Power Outlet.
Connect one end of the included
Ethernet Cable (no. 2) to the Ethernet
port at the back of the HomePlug and
the other end to your network Camera
or any other network device.
Note: HomePlug may not work when
connected to a Power Bar. Connect the
Home Plug to the Power Outlet directly.
Note: HomePlug has to be used on the
same Power Circuit.
1. COL: Lights up (red) when connected to AC power supply.
2. ACT: Lights up (amber) when detected and connected with
another HomePlug adaptor within the network. Flashes
during data transfer.
3. LINK: Lights up (green) when connected to the Ethernet
port of the camera, computer or other Ethernet devices.
4. LINK/ACT: Lights up (green) when connected to the
Ethernet port of the camera, computer or other Ethernet
devices. Flashes during data transfer.
5. ETHERNET JACK: To connect the included RJ-45 Ethernet
cable.
6. PLUG: To plug the Homeplug to a power socket.
WWW.LOREXCCTV.COM
lorexcctv.com for more
information.
FOR MORE INFORMATION
