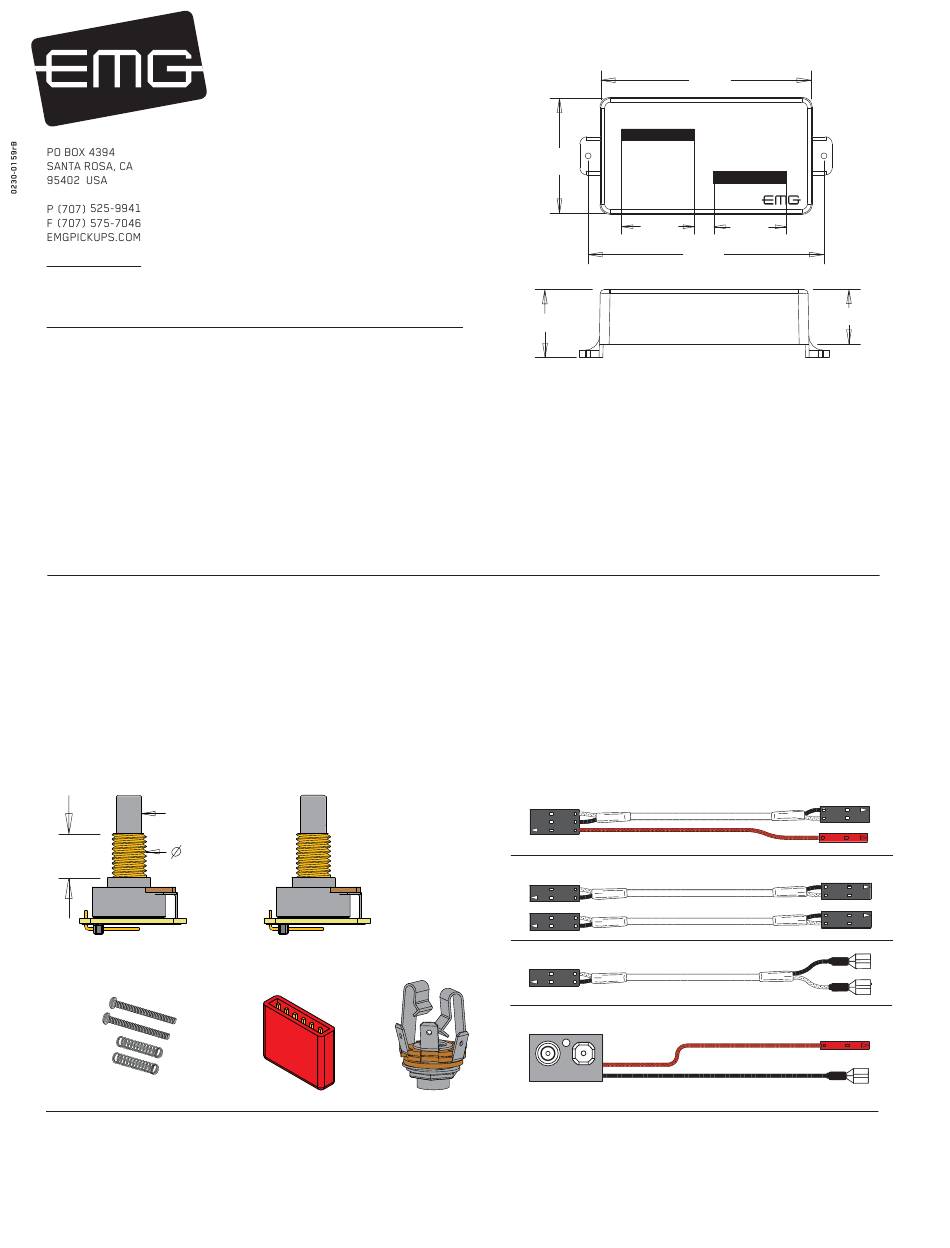

INSTALLATION INFORMATION
EMG MODEL: HB
SPECIFICATIONS:
Logo Color*
Magnet Type **
Resonant Frequency (KHz)
Output Voltage (String)
Output Voltage (Strum)
Output Noise (60 Hz)
Output Impedance (Kohm)
Current @9V (Microamps)
Battery Life (Hours)
Maximum Supply (Volts DC)
*Note: Logo Colors are not distinguished on Chrome and Gold Models
**Note: Magnet Type: C/S (Ceramic/Steel)
Installation notes:

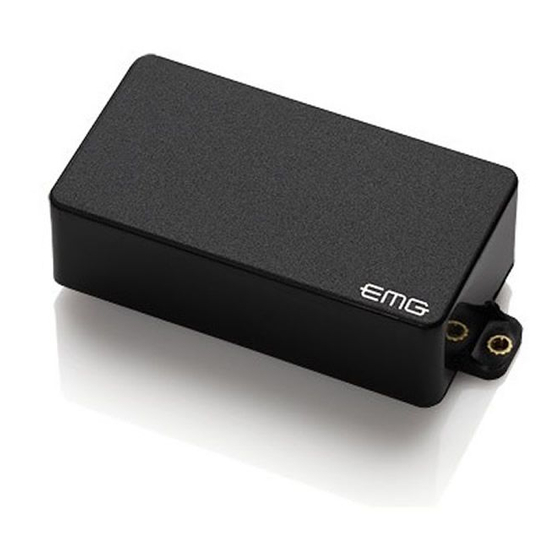

The EMG-HB is a bass pickup in a standard guitar humbucking housing. It is designed for narrow width 4-string basses only. The drawing above
shows the maximum recommended string width.
All EMG Pickups are compatible with each other. EMG accessories, the VLPF, EXG, SPC or RPC Controls can be added to any EMG Pickup System
without requiring an extra battery. DO NOT reconnect the bridge ground wire, EMG Pickups do not require string grounding. Use the 25K Ohm
controls that are included for best results. If your output jack is a long panel style you will need a stereo jack, use a SwitchCraft 152B , soldering
will be required (see the bottom of page 2). Adjust the pickup level to the strings, and at a distance that works for you, experiment. Alternate
wiring diagrams are available at; emgpickups.com.
Included with each pickup:
1 VOLUME CONTROL (25K)
SOLID
.390
.310
(10)
(8)
ADJUSTMENT
SCREWS & SPRINGS
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2014 Copyright EMG INC. All Rights Reserved.
MODEL:
HB
Silver
C/S
3.20
2.00
4.50
-106
10
80
3000
27
1 TONE CONTROL (25K)
STEREO OUTPUT
JACK
BATTERY
BUSS
MAXIMUM STRING WIDTH 2.10"
2.75
(69.8)
1.50
(38.1)
1.200
3.09
(78.5)
3/48 MOUNTING HOLES
.900
(22.8)
PICKUP CABLE 15" (38cm)
2 CONNECT CABLES 5.5" (14cm)
OUTPUT CABLE 6" (15cm)
BATTERY CABLE 7" (18cm)
- 9V +
1.200
.725
(18.4)
