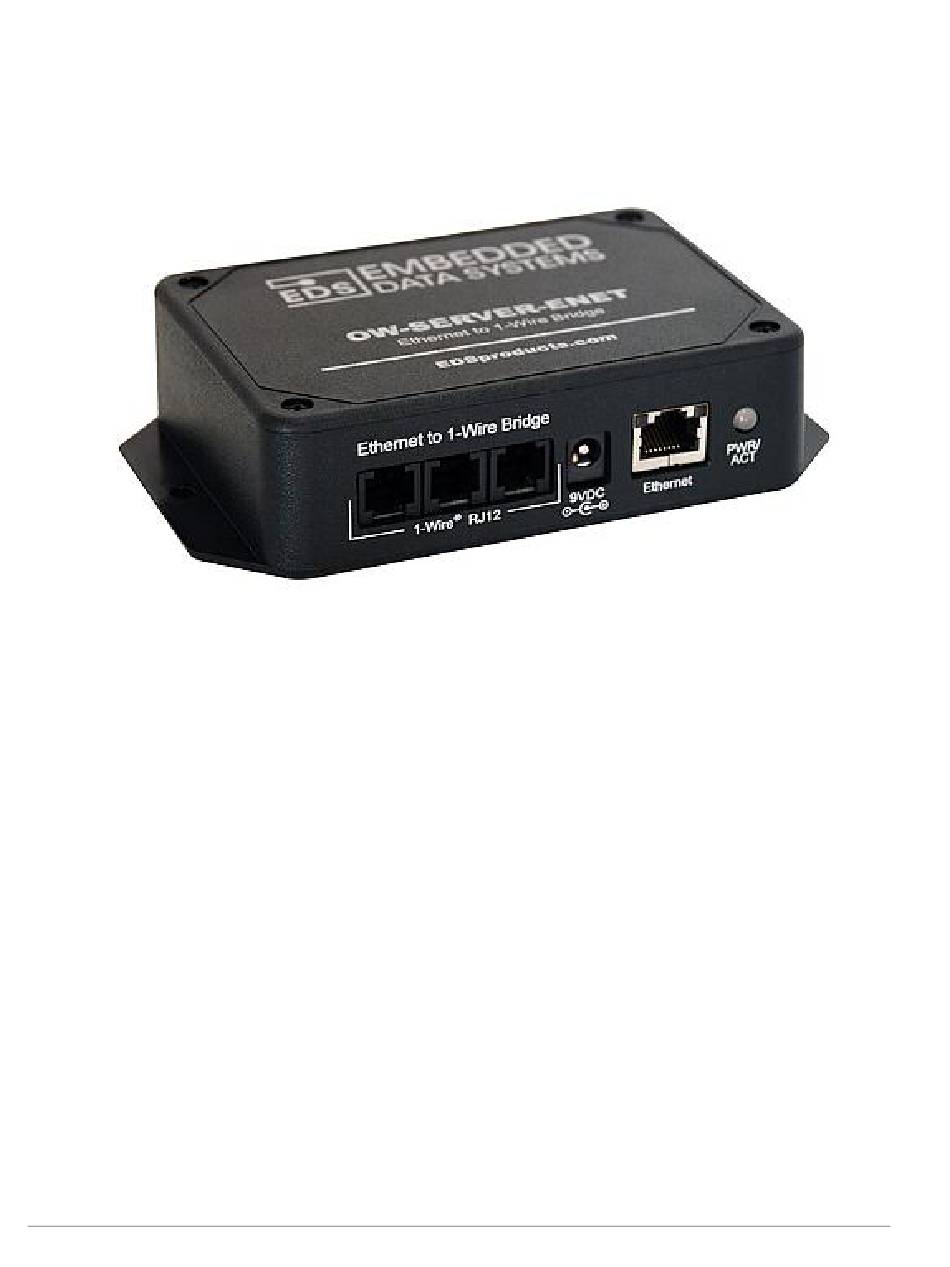

EDS OW-SERVER-ENET Quick Start Manual

1. Apply power to the OW-SERVER-ENET. The Yellow PWR/ACT LED will flash at a
one second rate, indicating that the product is operating normally.
2. Connect an Ethernet cable to the OW-SERVER-ENET Ethernet connector,
attaching the other end of cable to your network.
connector will light, indicating network connection. The yellow LED lights only
when there is network traffic.
3. Connect your 1-Wire Device to the OW-SERVER-ENET RJ12 connector.
OW-SERVER-ENET does not have any internal 1-Wire devices. With no devices
connected, the webpage will display and function properly, but with no data.
4. Determine the OW-SERVER-ENET IP Address. The OW-SERVER-ENET is shipped
with DHCP (Dynamic Host Configuration Protocol) enabled. The default Host
name for this device is: EDSOWSERVER. If your network has a DHCP server, an
IP address will be automatically assigned, but you must still determine the
address. One option for obtaining the IP address is to use the EDS – Ethernet
Discoverer Program. This is a Windows based program that displays all of the 1-
Wire server devices connected to the network and their associated addresses.
This program is available from EDS.
Embedded Data Systems, LLC.; 2019 Fortune Dr., Lawrenceburg, KY 40342; Phone/Fax 502-859-5490
OW-SERVER-ENET

QUICK START GUIDE

NOTE: This is a 10 BASE-T only device.
1-2
The green LED on the
NOTE:
