Summary of Contents for Wi-Tek WI-CPE211

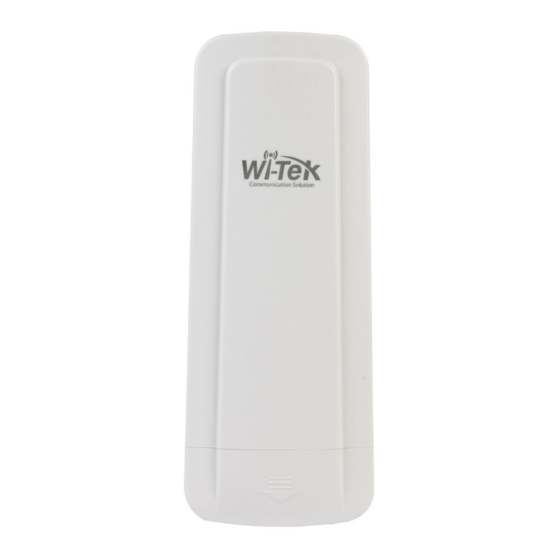

- Page 1 Long-Range Wireless Transmit CPE 2.4G and 5.8G Wireless CPE Installation Guide...
-
Page 2: Product Profile
Product Profile This guide applies to: WI-CPE211,WI-CPE513,WI-CPE515,WI-CPE516,WI-CPE517,WI-CPE518 ,WI-CPE214SMA,WI-CPE514SMA WI-CPE515-KIT,WI-CPE518-KIT, WI-CPE213-KIT.This guide introduces how to build a wireless network using the CPE products: 1. Check the System Requirements 2. Log In to the Device 3. Set Up the Wireless Network 4. WI-CPE515-KIT,WI-CPE518-KIT,WI-CPE213-KIT is pre-configuration software, so can do Point to Point by auto-connect The following parts detailedly introduces these steps. - Page 3 Product exterior and Guiding lights Power Sigal lights Ethernet Port of Ethernet 以太网口 Reset Guiding lights...
-
Page 4: Installation
Installation Outdoor installation manual While outdoor wireless long distance transmitting encounter obstacle such as top buildings or trees, the signal will be weak ; This is a directional bridge, the best signal will be obtained once it forwards to radiation range, so the alignment of antenna is important . - Page 5 Connection and Installation 复位键 100m GPS-5-65W Gigabit PoE Switch 100Mbps 1000Mbps UP/Link PoE-Ports 5-Port Gigabit Ethernet Switch With 4-Port PoE According to the network topology, connect the POE with PC, Router or Switch. Upward push the Rear cover plate after connection Adjust the CPE toward the direction you choose.
-
Page 6: Device Setting
Device Setting Step 1:Click on the icon at the lower right of computer to open'Open Network and Sharing Center'. - Page 7 Step5: Open the browser of computer and input 192.168.1.88, you will see the following page layout, the user name and password both are: admin.
-
Page 8: Point To Point Connection
Point to point connection For point to point connection, please setting one device from two as 'AP mode' , another one as 'Client mode', the SSID, the way of encryption and password of these two devices are both the same, then they will connect and work with each other automatically. -
Page 14: Point To Multipoint Connection
Point to Multipoint Connection The AP and Client mode setting of Point to Multipoint connection are the same as point to point configuration. 60° GPS-5-65W Gigabit PoE Switch 100Mbps 1000Mbps PoE-Ports 5-Port Gigabit Ethernet Switch With 4-Port PoE Switch Camera WIRELESS-TEK TECHNOLOGY LIMITED www.wireless-tek .com Email:sales@wireless-tek .com...
