INSTALLATION SHEET
Series 22
Fire Rated Pathway
ZIS1007 - 0766

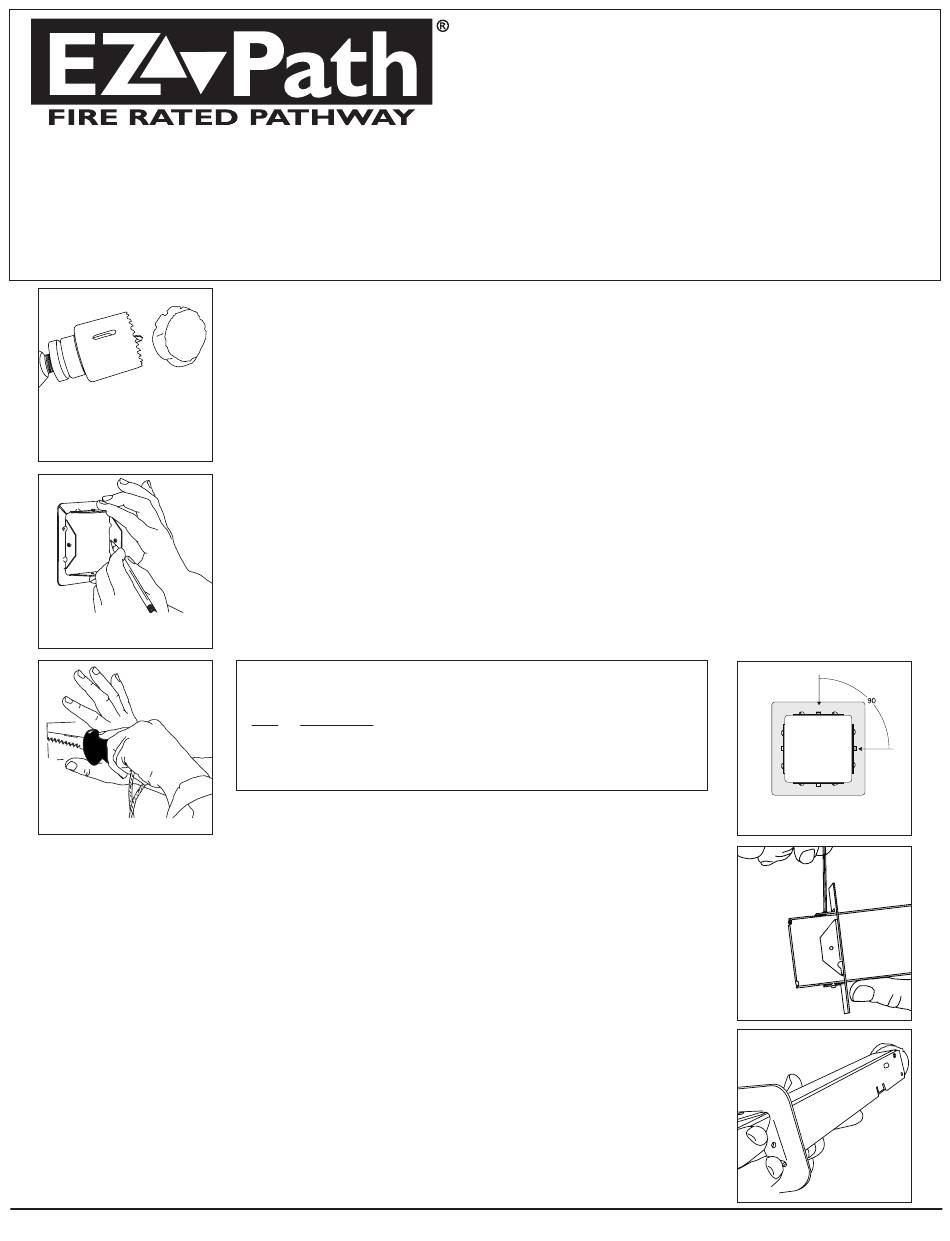

FIG.1
FIG.2
FIG.3

INSTALLING PATHWAY USING WALL PLATES

Prior to Pulling Cables
Device is installed through wall and attached using wall plates to sandwich the wall. No mechanical
attachment to wall itself is required.
1. If necessary, pre-install required set screws in wall plates using Allen wrench (provided). NOTE:
Two set screws positioned and tightened at 90 degrees to each other in both plates will adequately
hold device (See Fig. 4).
2. Install a wall plate around pathway making sure that set screw flanges are facing towards the end
of the device. Adjust position of wall plate so that device will be centered within the wall (Fig. 5).
When properly adjusted, tighten set screws to lock plate onto pathway.
3. Place one of two provided gaskets around opposite end of pathway and carefully slide it back to
fit snugly against back side (wall side) of plate.
4. Insert pathway through wall (with black device label facing upwards) using previously installed wall
plate and gasket as a stop (See Fig. 6).
5. Moving to the opposite side of the wall, install remaining gasket around pathway and slide toward
wall.
6. Install remaining wall plate around pathway and slide it toward wall surface. While pulling path-
way toward you, push wall plate and gasket tightly to wall and tighten set screws. Check device
for excessive play. If device appears to be loose or can easily be moved, readjust wall plates
as necessary to tighten device firmly against wall.
Page 1 of 2

CREATING THE OPENING

Gypsum Board Walls:
1. Locate suitable area of the wall to penetrate making sure that there are no studs, wires, pipes or
other obstructions located within wall.
2. a. Round Openings:
i.) Using a 2" (51 mm) hole saw, make an opening on each side of the wall ensuring that the holes
are aligned (See Fig. 1).
b. Square Openings (Optional):
i.) Mark a nom. 1-3/4" (44 mm) square opening. Make sure opening is square and plumb. The
inside opening of the wall plates can be used as a template (See Fig. 2).
ii.) Using a keyhole saw, cut wall board (See Fig. 3). Cutting to the outside of the line will pro-
duce a slightly over-sized opening. Mark and cut opposite side of the wall, exercising care to
align both openings.
3. Insert pathway and check for fit. Remove pathway.
4. Install device per instructions below.

Concrete or Masonry Walls:

1. Core drill a nom 2" (51 mm) round opening in wall or cut or form a nom 1-3/4" (44 mm) square opening.
2. Install device per instructions below.
Table A: Parts List
Qty. Description
1 EZ Path Series 22 Device
®
2 Wall Plates
2 Intumescent Gaskets
Installation Sheet • EZ PATH Series 22
GENERAL - READ COMPLETELY BEFORE INSTALLING
This product allows for several optional installation methods. Available
methods for walls are shown here. The pathway (device) consists of an
enclosed heavy gauge galvanized steel channel with a detachable lid. Wall
plates are designed to accommodate single device installations. Wall plates
and gaskets are included.
NOTE: WALL INSTALLATIONS REQUIRE THIS DEVICE TO BE
INSTALLED WITH THE TOP (LID) FACING UPWARD. The lid may be
identified by the device label.
1 5/64 Allen Key
2 Ground Screws
10 8-2 x 1/4" Lg. Set Screws
FIG. 4
FIG. 5
FIG. 6
ZIS1007 - 0766
