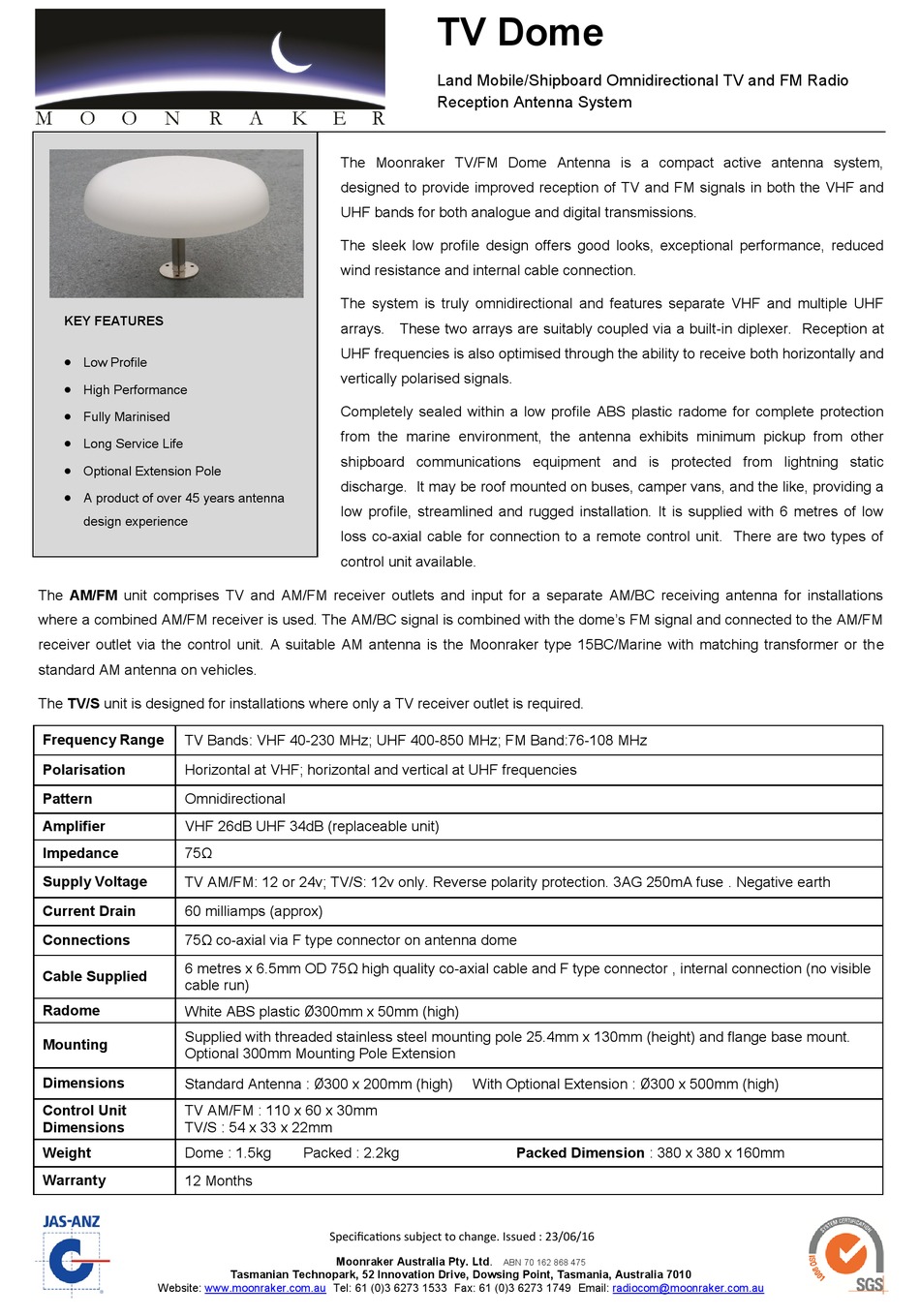

Moonraker TV Dome Quick Start Manual

KEY FEATURES

Low Profile

High Performance

Fully Marinised

Long Service Life

Optional Extension Pole

A product of over 45 years antenna
design experience
The AM/FM unit comprises TV and AM/FM receiver outlets and input for a separate AM/BC receiving antenna for installations
where a combined AM/FM receiver is used. The AM/BC signal is combined with the dome's FM signal and connected to the AM/FM
receiver outlet via the control unit. A suitable AM antenna is the Moonraker type 15BC/Marine with matching transformer or the
standard AM antenna on vehicles.
The TV/S unit is designed for installations where only a TV receiver outlet is required.
Frequency Range TV Bands: VHF 40-230 MHz; UHF 400-850 MHz; FM Band:76-108 MHz
Polarisation Horizontal at VHF; horizontal and vertical at UHF frequencies
Pattern Omnidirectional
Amplifier VHF 26dB UHF 34dB (replaceable unit)
Impedance 75Ω
Supply Voltage
TV AM/FM: 12 or 24v; TV/S: 12v only. Reverse polarity protection. 3AG 250mA fuse . Negative earth
Current Drain 60 milliamps (approx)
Connections 75Ω co-axial via F type connector on antenna dome
6 metres x 6.5mm OD 75Ω high quality co-axial cable and F type connector , internal connection (no visible
Cable Supplied
cable run)
Radome
White ABS plastic
Supplied with threaded stainless steel mounting pole 25.4mm x 130mm (height) and flange base mount.
Mounting
Optional 300mm Mounting Pole Extension
Dimensions
Standard Antenna :
Control Unit
TV AM/FM : 110 x 60 x 30mm
Dimensions TV/S : 54 x 33 x 22mm
Weight Dome : 1.5kg
Warranty 12 Months
Website: www.moonraker.com.au
The Moonraker TV/FM Dome Antenna is a compact active antenna system,
designed to provide improved reception of TV and FM signals in both the VHF and
UHF bands for both analogue and digital transmissions.
The sleek low profile design offers good looks, exceptional performance, reduced
wind resistance and internal cable connection.
The system is truly omnidirectional and features separate VHF and multiple UHF
arrays. These two arrays are suitably coupled via a built-in diplexer. Reception at
UHF frequencies is also optimised through the ability to receive both horizontally and
vertically polarised signals.
Completely sealed within a low profile ABS plastic radome for complete protection
from the marine environment, the antenna exhibits minimum pickup from other
shipboard communications equipment and is protected from lightning static
discharge. It may be roof mounted on buses, camper vans, and the like, providing a
low profile, streamlined and rugged installation. It is supplied with 6 metres of low
loss co-axial cable for connection to a remote control unit. There are two types of
control unit available.

300mm x 50mm (high)

300 x 200mm (high)
Packed : 2.2kg
Specifications subject to change. Issued : 23/06/16
Moonraker Australia Pty. Ltd.
Tasmanian Technopark, 52 Innovation Drive, Dowsing Point, Tasmania, Australia 7010
Tel: 61 (0)3 6273 1533 Fax: 61 (0)3 6273 1749 Email:
TV Dome
Land Mobile/Shipboard Omnidirectional TV and FM Radio
Reception Antenna System
With Optional Extension :
Packed Dimension : 380 x 380 x 160mm
ABN 70 162 868 475

300 x 500mm (high)
