FFS Brands VIHD2 Manual

Hot dog grill
Hide thumbs

Advertisement

Quick Links

Download this manual





Hot Dog Grill 2
VIHD2
Hot Dog Grill 4
VIHD4

Advertisement

loading
Need help?

Need help?

Do you have a question about the VIHD2 and is the answer not in the manual?

Questions and answers

Summary of Contents for FFS Brands VIHD2

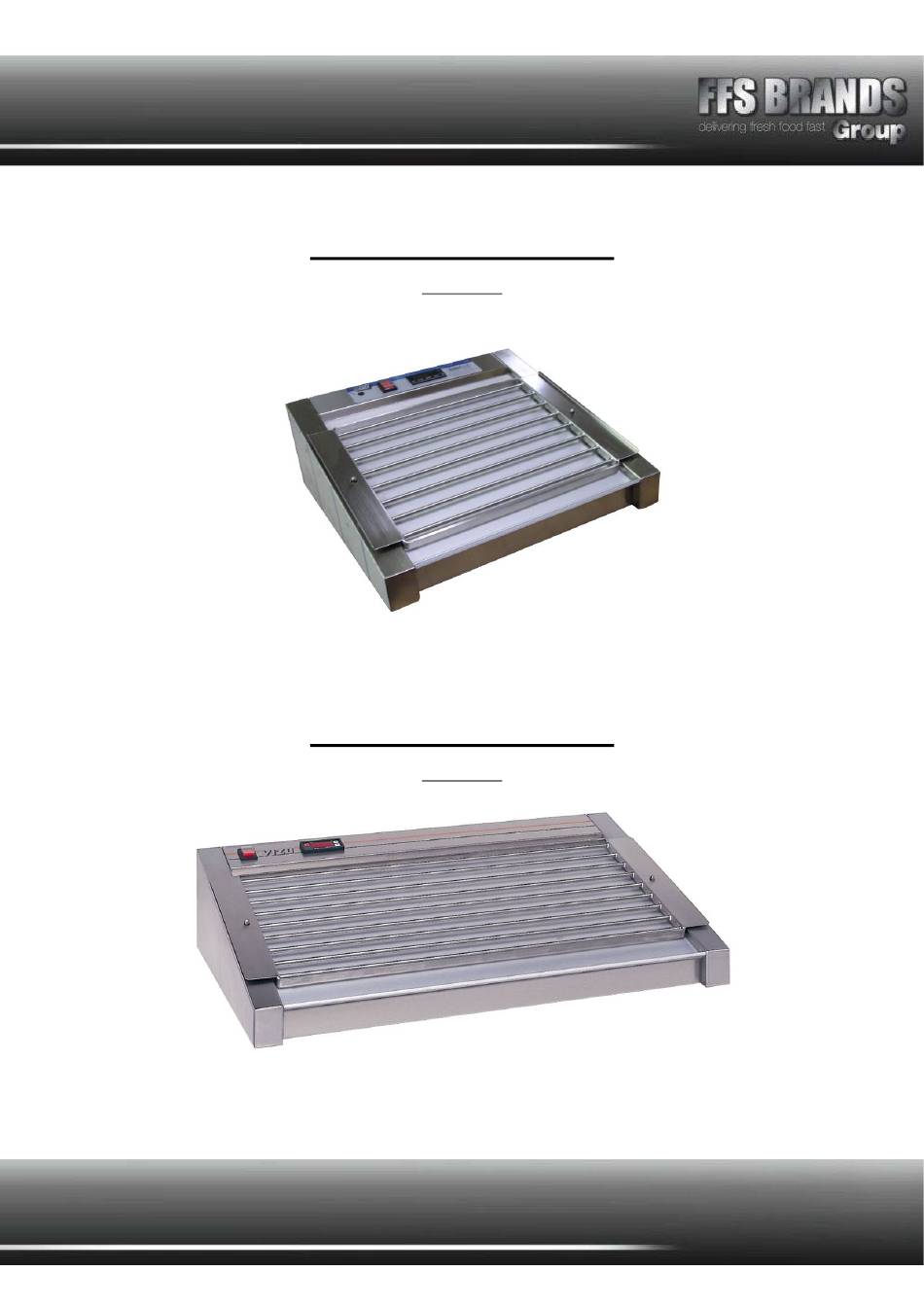

  • Page 1       Hot Dog Grill 2 VIHD2 Hot Dog Grill 4 VIHD4    ...
  • Page 2       HOT DOG GRILL 2 SPECIFICATION PAGE MODEL VIHD2 Dimensions Machine Height 188mm Width 526mm Depth 480mm Weight 15kg Electrical 1kw, 1 phase, 50HZ AC, 230v Running Amps 4.4 Amps Connection Type 2m BESCHUKO Euro cable with, MFEUROCONVERT Euro to UK converter plug International Option  ...
  • Page 3       HOT DOG GRILL 4 SPECIFICAION PAGE MODEL VIHD4 Dimensions Machine Height 188mm Width 811mm Depth 480mm Weight 21kg Electrical 2kw, 1 phase, 50HZ AC, 230v Running Amps 9 Amps Connection Type 2m BESCHUKO Euro cable with, MFEUROCONVERT Euro to UK converter plug International Option  ...

  • Page 4: Installation

          Assembly Instructions 1. Remove protective plastic covering from all surfaces. 2. Remove grid and wash in hot soapy water, rinse and dry. 3. Clean all surfaces with a clean, hot, damp cloth. 4. Replace grid on drive studs. Installation Hot Dog Grill Position the...
  • Page 5       Setting and changing controller parameters  Press and hold, in sequence, the + SET + keys  After 3 seconds SCL will be displayed  The  key will allow you to step through the parameters  Use the ...

  • Page 6: Spare Parts Listing

          Spare Parts Listing PART NO. DESCRIPTION QTY. IMAGE BESCHUKO H05Rr-F 2Mtr. Rubber C032 Natural Polyoxymethelyne Push-In Rivets MF13701NAT 137001000005 MF817-8877 Black Nylon 66, strain relief cable bush MF354Z 2 Pole 5amp term block TB06 MF464-9845 3 Way Ceramic Block TB08 MF543-204 9.5mm Grommet MF605-649...
  • Page 7         PART NO. DESCRIPTION QTY. IMAGE MFINSHD2 Hot Dog 2 Insulation MFMOTOR/GEARB Motor/Gearbox 80 547 019 MFMTR11TIRES Ltr-5Tsre-A(P) Digit Therm. With Probe MFV05-09T Drive bush with thread MFV05-18 Drive link 1 (Cmp) V05-18 MFV05-24 Reciprocator wheel Vc-01 MFVC-07 Drive Pin VC-07 Z63b4...
  • Page 8         PART NO. DESCRIPTION QTY. IMAGE MFVC-27 Drive shaft assy with 2 rod ends & thread VILE14 Switch cover / bezel HD2/HD4 MFF1025 / MF1026 MF374-1029 10mm low profile lens indicator 230VAC VISW17 Rocker switch HD2 Revolva HD4 MFC1553ALR MFSTEGCAP Capacitors (204-4939) Y3shelf3...
  • Page 9       Faultfinder Any servicing must be carried out by qualified personnel. Disconnect from power before servicing. Problem Possible Cause Solution 1. Rocker switch is not  No power to machine.  Check machine is plugged in & switched illuminated.
  • Page 10          ...
  • Page 11       Wiring diagram HD2 Wiring diagram HD4    ...
  • Page 12          ...

  • Page 13: Terms And Conditions

          Terms and Conditions Claims No claim shall be entertained by the Company unless made in writing. Claims arising from damage or partial loss in transit must reach the Company within 7 days from the date of delivery. Claims for non-delivery must reach the Company within 10 days from the date of dispatch.
  • Page 14       Damage claim form Machine: HD2 VIHD2 / HD4 VIHD4 Product code: HD2 / HD4 Customer name…………………………………………………………… Date of delivery…………………………………………………………… Machine serial number………………………………………………… Damage comments……………………………………………………… …………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………… …………………………………………………………… Please indicate on the picture where the unit is damaged Courier name…………………………………………………………………...

  • Page 15: Warranty

          Warranty UNITED KINGDOM AND REPUBLIC OF IRELAND Excepting where otherwise specified all products are subject to 12 months parts and labour warranty Goods found defective will be repaired, credited or replaced without charge according to the terms of the Company’s standard warranty, provided written notice is given within the guarantee period.
  • Page 16       Model Number……………………………… Order ID/Job No…………………………… Machine serial number…………………… Date of Manufacture ……/………/……… Date of delivery……/………/…… Date of Commissioning……/………/…… Fast Food Systems Limited Manufacturer & Distributor of Catering Equipment Unit 1 Headley Park 9 Headley Road East Woodley Reading Berkshire RG5 4SQ Tel: 0118 944 1100 Fax: 0118 944 0350 Email: service@fast-food-systems.co.uk Website: www.fast-food-systems.com...

This manual is also suitable for:

Vihd4
