Using Externally powered Short Haul Modems with EK1000N
June 2000
Introduction
This Technical Bulletin describes how to connect an Easikey 1000N, with externally powered
short haul modems (SHM), to a PTSN modem via a COS dataswitch.
Product Tested:
Product Code:
Power is supplied to the SHM via a 17V 0.7A power supply.

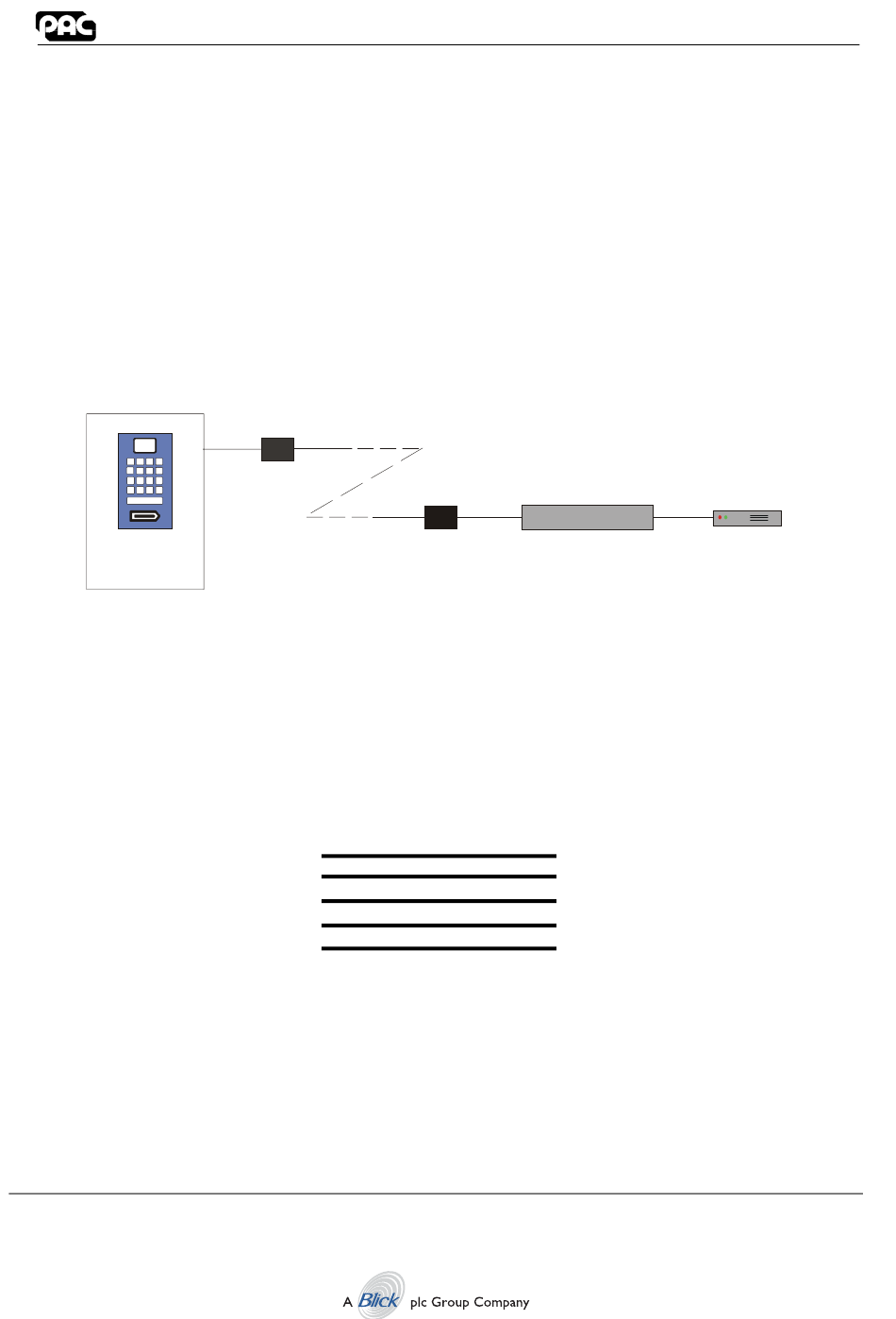

System Configuration
EasiKey 1000-N
Wiring Details
EK1000N to Short Haul Modem
Note: The SHM requires a 25 way, male, D-type connector.
The SHM must have switch S1 set to DTE and switch S2 set to EN (both switches are
located in a recess on the underside of the modem).
PAC International Limited. 1 Park Gate Close, Bredbury, Stockport,SK6 2SZ, England
Blackbox Powered Short Haul Modem (B Plus Async)
ME800AE Plus
Short-haul modems
EK1000N
RX
TX
GND
CTS
DRT
Tel: +44 (0) 161 406 3400. Fax: +44 (0) 161 430 8658
www.pac.co.uk
TECHNICAL BULLETIN
COS Dataswitch
Short Haul
Modem
PIN 2
PIN 3
PIN 7
PIN 5
PIN 20
TB33 Ver 1.0
PSTN Modem
