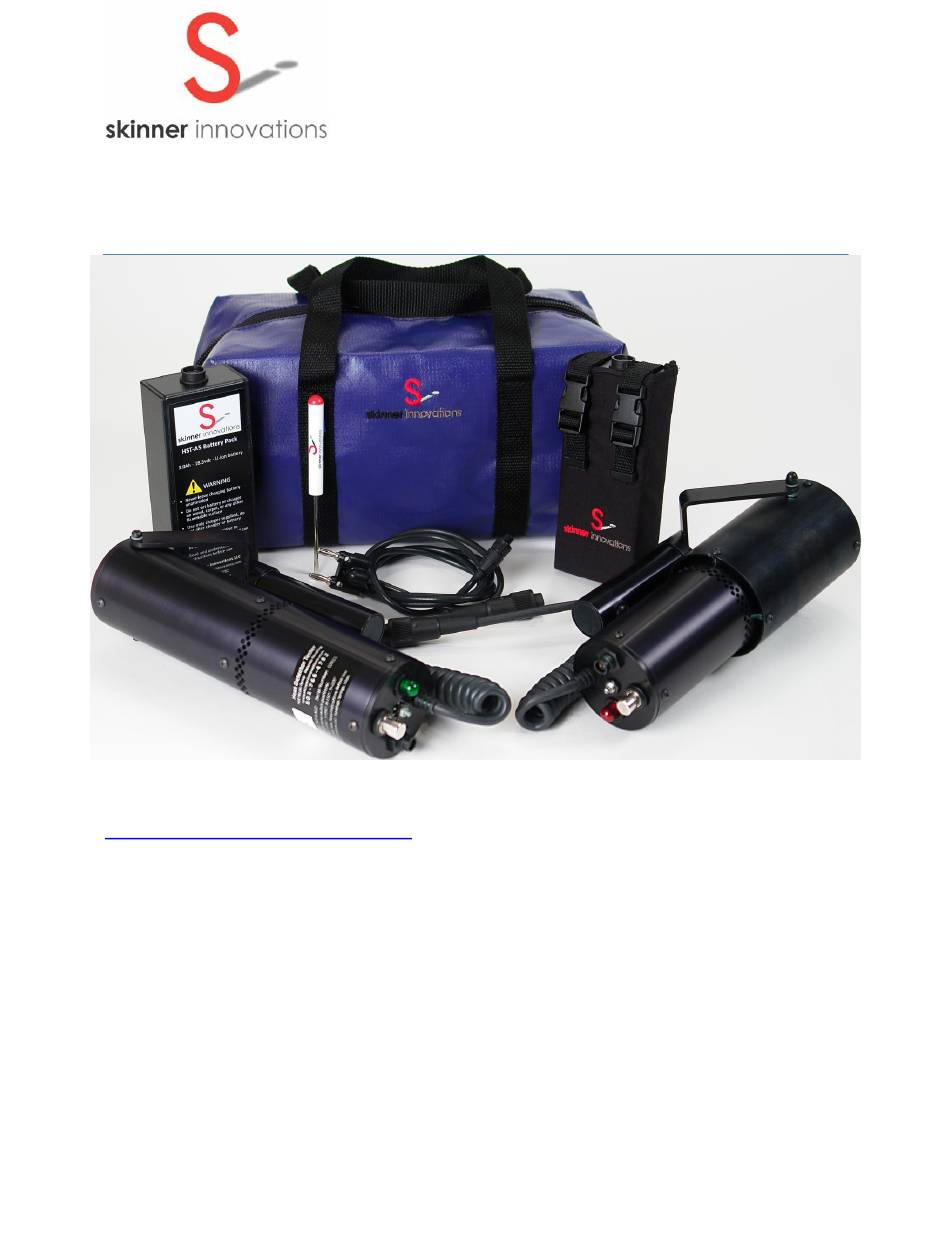

HST Series
Operation Manual
www.skinnerinnovations.com
Rev 11-24-2017
Skinner Innovations LLC
email: info@skinnerinnovations.com
708 N. Douglas St.
Lake City, IA 51449
HST Series Heat Detector Tester
For Rate Compensated Fire Detectors
and Thermal Switches
(801) 766 4782
www.skinnerinnovations.com
Advertisement
Table of Contents
Summary of Contents for Skinner Innovations HST Series
- Page 1 HST Series Heat Detector Tester For Rate Compensated Fire Detectors HST Series and Thermal Switches Operation Manual www.skinnerinnovations.com email: info@skinnerinnovations.com Rev 11-24-2017 Skinner Innovations LLC 708 N. Douglas St. Lake City, IA 51449 (801) 766 4782 www.skinnerinnovations.com ...
-
Page 2: Table Of Contents
HST Series Heat Detector Tester For Rate Compensated Fire Detectors Contents and Thermal Switches 1. Table of Contents 2. Model number configuration guide 3. Specifications 4. Safety warnings 5. Assembly 6. Operation 7. Remote Temperature Output 8. Troubleshooting 9. Service 10. -
Page 3: Model Number Configuration Guide
*contact for availability **temperature rate control "Rate Compensation Verification"(see Appendix A&B for details) ***models shown are for Fenwal® DETECT-A-FIRE® model 27127, 28021, 27120, and 28020 contact Skinner Innovations to confirm correct HST model to use with other sensors Example model number: HST-A-ALO tester- For use on 5/8”... -
Page 4: Specifications
HST Series Heat Detector Tester For Rate Compensated Fire Detectors Specifications and Thermal Switches HST test head: • Aluminum housing • 1 to 5 temperature set points- factory set • Large easy to see LED indicator light • Heavy duty power switch •... -
Page 5: Safety Warnings
HST Series Heat Detector Tester For Rate Compensated Fire Detectors Safety Warnings and Thermal Switches Do not use the HST test tool in any area where flammable gas is present. The HST test tool is a heat producing device; keep away from skin, body parts, and flammable materials. -
Page 6: Assembly
3. Place holder over HST compatible pole with rubber straps looped around the pole Holster with rubber strap fastened HST Series heat detector tester- installed on an HST compatible pole 4. Snug down rubber straps and ensure that straps are secure 5. -
Page 7: Operation
HST Series Heat Detector Tester For Rate Compensated Fire Detectors Operation and Thermal Switches (For operation with Rate Control option, see Appendix B) 1. Ensure bypasses are in place, including disabling of any fire suppression systems. 2. Ensure that HST is correct temperature range for detectors to be tested. If using multi- temperature HST, ensure that correct temperature setting is selected. -
Page 8: Remote Temperature Output
HST Series Heat Detector Tester For Rate Compensated Fire Detectors Remote Temperature Output and Thermal Switches see appendix A 1. Connect HST to digital voltmeter using special connection cable Requires 1.5 meter cable part number HST-A5-CBL (sold separately). For longer distance use with 8.3 meter extension cable part number HST-EXT-CBL. -
Page 9: Troubleshooting
HST Series Heat Detector Tester For Rate Compensated Fire Detectors Troubleshooting and Thermal Switches Problem Possible cause Remedy If indicator light stays off for over Indicator light does not 1. Push power button 60 seconds, power may be off or turn on 2. -
Page 10: Service
Periodic Service and maintenance: 1. Inspect the tool as described in this manual before each use. 2. Return tool to Skinner Innovations LLC for repair or calibration. Call for return authorization prior to sending in any unit for service or repair. -
Page 11: Product Warranty
Product Warranty and Thermal Switches To the original purchaser, for one year from date of purchase, Skinner Innovations LLC will warranty repair or replace any damaged components that are determined to be the result of manufacturer defect. Any unit that has been opened up, disassembled, or otherwise worked on by anyone other than Skinner Innovations LLC, will not be covered under this warranty. -
Page 12: Appendix A - Technical Note: Rate Compensated Heat Detector Testing
HST Series Heat Detector Tester For Rate Compensated Fire Detectors Appendix-A and Thermal Switches Technical Note: Rate Compensated Heat Detector Testing Interpretation of test results The purpose of this note is to explain detector set point, rate compensation, and how this should affect the interpretation of test results observed on remote temperature readout of the HST heat detector tester. - Page 13 HST Series Heat Detector Tester For Rate Compensated Fire Detectors Appendix-B and Thermal Switches Operation supplement: Testing rate compensated heat detectors - HST Rate Control option/ Rate Compensation Verification Sequence of Operation Turn on HST by pressing the power button. Place tester firmly over detector. Then follow test stages 1-4 below.
- Page 14 Operation supplement: Testing rate compensated heat detectors - HST Rate Control option/ Rate Compensation Verification (cont.) * Notes on testing rate compensated heat detectors using HST Series Heat Detector tester with rate control/rate compensation verification: The LED indicator light flashes to indicate test progress. If the HST is producing quick flashes, this may •...
- Page 15 Model HST-A-17343-124-3 for 600 and 725 degree F detectors Model HST-A-17343-113-950 for 950 degree F detectors There are several sub-models of 17343 detectors contact Skinner Innovations to verify HST tester matches detector. Operation: 1. Select the desired temperature setting on the HST tester. The HST temperature setting refers to the detectors rated trip point, the actual temperature that the HST produce will be slightly higher to account for the manufacturers +/- specification.
- Page 16 HST Series Heat Detector Tester For Rate Compensated Fire Detectors and Thermal Switches Remote Temperature Output Connection Cable Specifications Part Number: HSTA5CBL FEATURES: • This double banana plug cable is designed to be used with all standard .166” (4mm) diameter banana jacks. It can be used with most digital multimeters that have the common and volt-ohm jacks at the standard spacing.
-
Page 17: Hst Output Extension Cable
HST Series Heat Detector Tester For Rate Compensated Fire Detectors and Thermal Switches HST Output Extension Cable Specifications Part Number: HSTEXTCBL FEATURES: • The heavy duty coiled extension cable is designed to be connected with standard HST remote temperature output and the standard connection cable HST-A5-CBL. The combined length of these cables is approx. - Page 18 HST Series Heat Detector Tester For Rate Compensated Fire Detectors and Thermal Switches HST Output Extension Cable Important directions on safe usage Part Number: HSTEXTCBL When using with extension poles, the cable must be fastened to the inspection pole using the rubber strap provided.
-
Page 19: Hst Power Supply
HST Series Heat Detector Tester For Rate Compensated Fire Detectors and Thermal Switches HST Power Supply Specifications Part Numbers: HSTPWR148, HSTPWR185, HSTPWR259 FEATURES: • Universal AC input • 3 pole AC inlet connector IEC320-C14 • Output: 15VDC (14 volt HST models) - Page 20 HST Series Heat Detector Tester For Rate Compensated Fire Detectors and Thermal Switches HST Power Supply Important directions on safe usage Part Numbers: HSTPWR148, HSTPWR185, HSTPWR259 When using power supply with extension cable part numbers HSTEXT148, HSTEXT185, or HSTEXT259, the extension cable must be fastened to the inspection pole using the rubber strap provided.
-
Page 21: Hst Power Extension Cable
HST Series Heat Detector Tester For Rate Compensated Fire Detectors and Thermal Switches HST Power Extension Cable Specifications Part Numbers: HSTEXT148, HSTEXT185, HSTEXT259 FEATURES: • The heavy duty coiled power extension cable is designed to provide extended power cable length when using an HST Stand Alone Power supply. - Page 22 HST Series Heat Detector Tester For Rate Compensated Fire Detectors and Thermal Switches HST Power Extension Cable Important directions on safe usage Part Numbers: HSTEXT148, HSTEXT185, HSTEXT259 When using with extension poles, the cable must be fastened to the inspection pole using the rubber strap provided.
