MAD-RAMPS MR1400 Installation Instructions Manual

Pivoting ramp system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

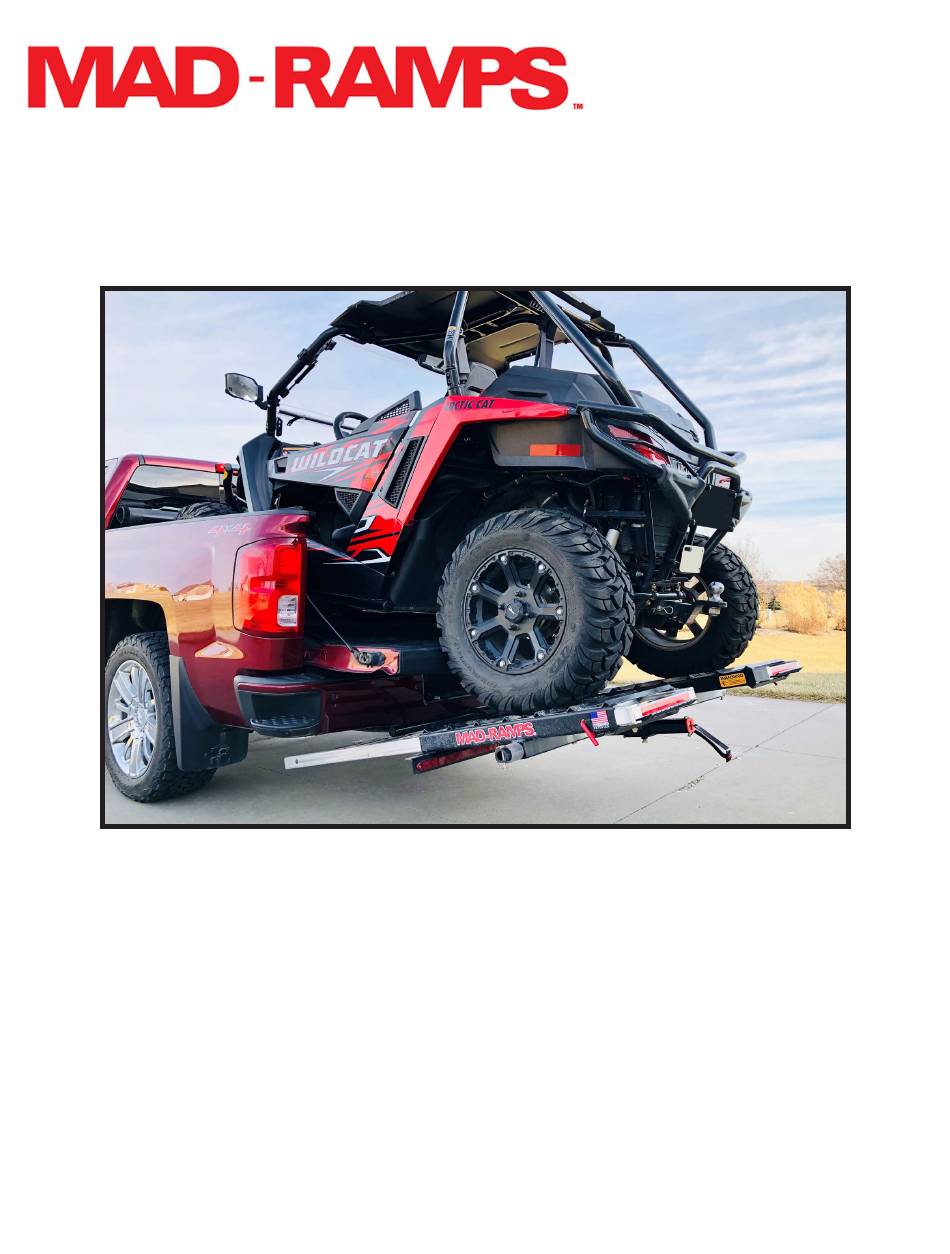

MR1400
MAD-RAMPS
Installation Instructions
THE MAD-RAMPS PIVOTING RAMP SYSTEM
OWNER'S MANUAL
Please read this manual entirely prior to assembly or operation of
The MAD-RAMPS Pivoting Ramp System. Please call us at
1 (844) MAD-RAMP with any questions.
405-0680 Rev B
2/6/2020
Page 1 of 19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR1400 and is the answer not in the manual?

Questions and answers

Summary of Contents for MAD-RAMPS MR1400

  • Page 1 Installation Instructions THE MAD-RAMPS PIVOTING RAMP SYSTEM OWNER’S MANUAL Please read this manual entirely prior to assembly or operation of The MAD-RAMPS Pivoting Ramp System. Please call us at 1 (844) MAD-RAMP with any questions. 405-0680 Rev B 2/6/2020 Page 1 of 19...

  • Page 2: General Safety Rules

    MAD-RAMPS Pivoting Ramp System. If any damage is present, DO NOT USE THE RAMPS. WARNING: Do not add to or modify the MAD-RAMPS Pivoting Ramp System in any way. Any modifications will void all warranties and may affect the structural integrity of the MAD-RAMPS.

  • Page 3: Intended Use

    Snowmobiles only. Depending on ATV/UTV/Golf Cart/Snowmobile weight, a minimum of a Class III or a Class IV receiver hitch is required for the MAD-RAMPS Pivoting Ramp System. It is imperative that you check your owner’s manual to determine the tongue-weight rating for your truck’s specific receiver hitch. Once you know your truck’s specific tongue-weight rating, you will need to perform one quick calculation: Add together...
  • Page 4 MR1400 MAD-RAMPS Pivoting Ramp System Installation Instructions Tools Required 3/4” Socket Torque Wrench Item No. Part No. Description Qty. 1.........61-8273 ......Aluminum Ramps, DS .............1 2.........61-8274 ......Aluminum Ramps, PS .............1 3.........62-4259 ......Marker Light ..............1 4.........62-4260 ......Light Bar ................1 5.........62-4261 ......Pivot Bar ................1 6.........62-4262 ......Main Arm .................1...
  • Page 5 MR1400 MAD-RAMPS Pivoting Ramp System Installation Instructions MAD-RAMPS ASSEMBLY GUIDE NOTE: All ½ inch jam bolts used for assembling the MAD-RAMPS Pivoting Ramp System must be torqued to 70 ft/lbs each. Please check jam bolts for proper torque after first use and periodically thereafter.
  • Page 6 MR1400 MAD-RAMPS Pivoting Ramp System Installation Instructions Step 3: Install a Retainer Clip into the 3rd hole from the angled end of Main Arm (part #6), as shown in Figures 6 and 7. Retainer clips are installed as a backup safety measure to prevent the Pivot Bar (part #5) from moving out of position on the Main Arm.
  • Page 7 Cages through their entire range of motion. The positioning of the Pivot Bar must be far enough back on the Main Arm to allow the rear tires of your ATV/ UTV to be positioned well-forward of the Pivot Bar once the ATV/UTV is loaded onto the MAD-RAMPS Pivoting Ramp System. Figure 13...
  • Page 8 MR1400 MAD-RAMPS Pivoting Ramp System Installation Instructions Once the Pivot Bar is positioned correctly, secure the Pivot Bar to the Main Arm by tightening the two jam bolts. Tighten the side jam bolt first and then the bottom jam bolt with a torque wrench to 70 ft/lbs each (Figure 14).
  • Page 9 (part #8), as shown in Figure 19. Ensure that the 3 pre-drilled holes on the side of the Passenger- Side Aluminum Ramp are facing toward the outside of the MAD-RAMPS Pivoting Ramp System; this allows for the spring tension pin on the Passenger-Side Pivot Cage to lock the Passenger-Side Alu- minum Ramp into place when loading, unloading, and transporting your ATV/ UTV, as shown in Fig- ure 20.
  • Page 10 MR1400 MAD-RAMPS Pivoting Ramp System Installation Instructions Step 8: Adjust the Bumper Guard (part #9) forward or backward on the Main Arm to allow the Aluminum Ramps (part #1 and #2) to travel through the Pivot Cages (part #7 and #8) and come to a rest just below the Bumper Guard (Figure 21).
  • Page 11 MR1400 MAD-RAMPS Pivoting Ramp System Installation Instructions Step 9 (Continued): Thread the Rear Marker Light harness through the rings of the retainer clips in the Main Arm (part #6) to prevent the harness from sagging (Figure 25). Figure 25 Using the male and female ends of the butt connectors, connect the Rear Marker Light harness at the center of the Light Bar (part #4), as shown in Figure 26.
  • Page 12 Plug in the light harness and then check the LED lights on the Light Bar to ensure proper operation of turn signals, brake lights, and tail lights (Figure 27). The MAD-RAMPS Pivoting Ramp System is equipped with a 4-way standard plug. An adapter may be required depending on your truck’s wiring configuration.
  • Page 13 Figure 2 Step 2: Drive your machine up to MAD-RAMPS, but stop before the front tires come in contact with either aluminum ramp. Adjust the ramps by them sliding along the Pivot Bar so they line up with the wheel width of your ATV or UTV, as shown in Figure 3.
  • Page 14 A slow, steady ascent up the MAD-RAMPS Pivoting Ramp System allows for a smooth transition as your rear tires cross the Pivot Bar. Place your ATV or UTV in park, and engage the parking brake (if applicable).
  • Page 15 Use a minimum of one ratchet strap to secure the rear end of your machine to the Main Arm of the MAD-RAMPS Pivoting Ramp System. Use a minimum of two additional ratchet straps to secure the front end of your machine to each of the two cargo hooks at the front of your truck’s bed.
  • Page 16 MR1400 MAD-RAMPS Pivoting Ramp System Installation Instructions Step 3: NOTE: There is no need to adjust the ramps for wheel width prior to unloading. The weight of your machine holds the Pivot Cages and Aluminum Ramps in place during transportation.

  • Page 17: What Does This Warranty Cover

    THIS WARRANTY STATEMENT. WHO MAY USE THIS WARRANTY? MAD-RAMPS (“we”) extend this limited warranty only to the consumer who originally purchased the product (“you”). It does not extend to any subsequent owner or other transferee of the product. WHAT DOES THIS WARRANTY COVER? This limited warranty covers defects in materials and workmanship of the MAD-RAMPS Pivoting Ramp System (the “product”) for the Warranty Period.

  • Page 18: Technical Specifications

    MR1400 MAD-RAMPS Pivoting Ramp System Installation Instructions WHAT ARE YOUR REMEDIES UNDER THIS WARRANTY? With respect to any defective product during the Warranty Period, we will, in our sole discretion, either repair or replace the product (or the defective part) free of charge. We will also pay for shipping and handling fees to return the repaired or replacement product to you if we elect to repair or replace the defective product.
  • Page 19 MR1400 MAD-RAMPS Pivoting Ramp System Installation Instructions CONTACT US (844) 623-7267 | info@madramps.com | www.madramps.com 405-0680 Rev B Page 19 of 19 2/6/2020...
