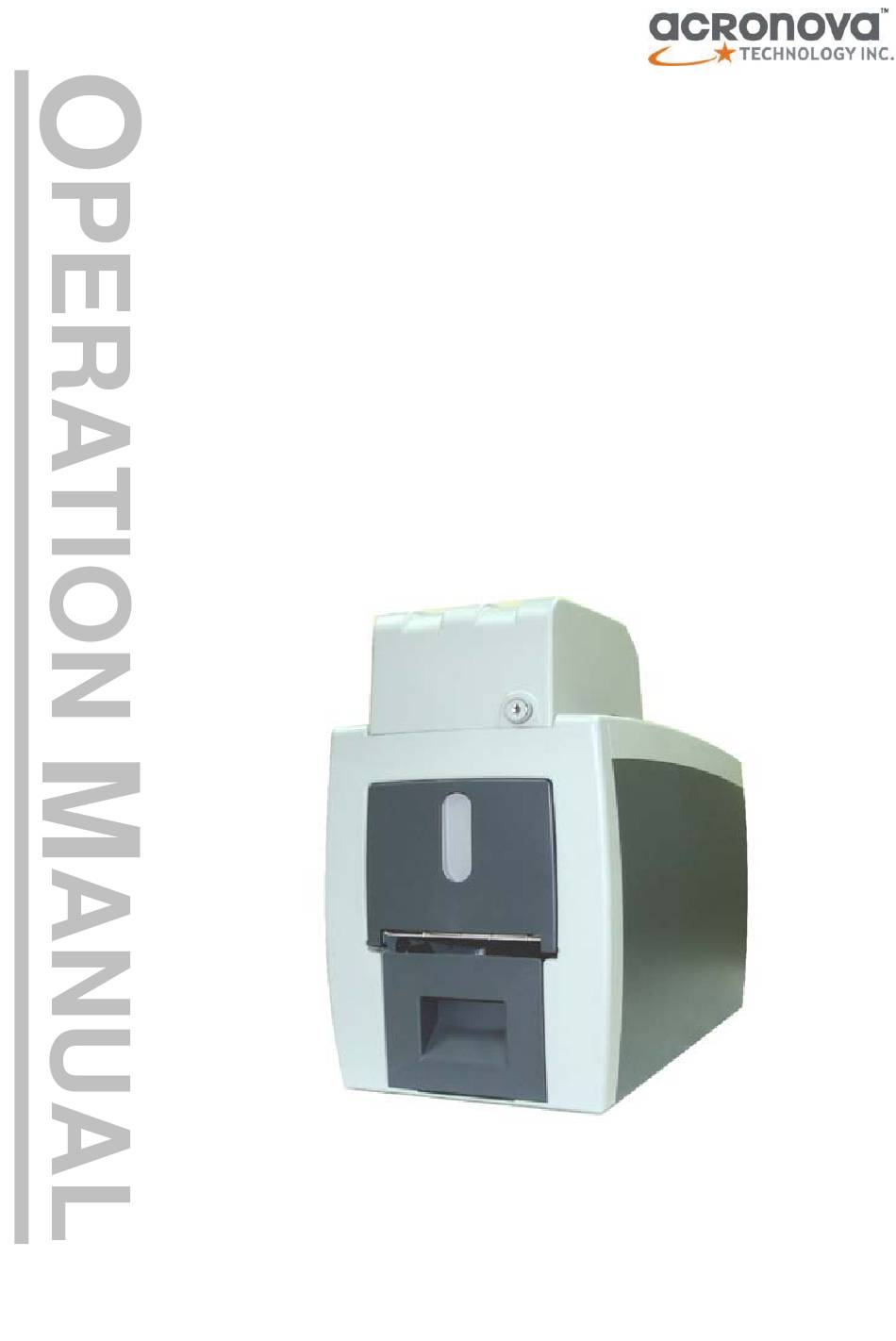

- Page 1 Operation Manual Xymba Automated Disc Duplicator Model #: XB-42 (Standalone) Serial Number: ______________________________ (The serial number is labeled on the rear panel of the device.)
-
Page 2: Preface
© 2008, Acronova Technology Inc. All rights reserved. Notices: Reproduction, adaptation, or translation without prior written permission is prohibited. Trademarks: Acronova, Nimbie, GetTray, Xymba, DupliQ, and Apus are the trademarks of Acronova Technology Inc. All other products, © 2008, Acronova Technology, Inc. - Page 3 Acronova Technology Inc. makes no warranty of any kind with respect to this information. Acronova Technology Inc. guarantees this device for a period of one year from the date of delivery, free from defects in material and workmanship.
- Page 4 In no event will Acronova Technology Inc. be liable for direct, indirect, special, incidental, tort, economic, contingent or consequential damages resulting from any defect in this product or its documentation, including, without, limitation, damages or costs relating to the loss of data, profits, business or goodwill, even if Acronova Technology Inc.,...
-
Page 5: Table Of Contents
V108 Operation Manual, Xymba XB-42 ABLE OF ONTENTS Preface Specifications Unpacking your Xymba Package Contents................. 7 Getting Familiar with Xymba Block Diagram................9 A Look at Xymba................9 Rear View..................10 LED Indicators ................11 Hardware Installation Finding a Place for Xymba............12 Xymba Installation............... -
Page 6: Specifications
Operation Manual, Xymba XB-42 V108 PECIFICATIONS Disc Recorder Two CD/DVD recorders (XB-42); Two Blu-ray/DVD/CD recorders (XB-42-BR). Input Capacity: 80 discs (more discs with non-stop refill) Output Capacity: 80 discs Reject Disc Capacity: 3 discs (unlimited discs using Reject Disc Slot) Write Speed: CD-R: 40X;... -
Page 7: Unpacking Your Xymba
V108 Operation Manual, Xymba XB-42 NPACKING YOUR YMBA Congratulations on purchasing the Xymba XB-42 (Standalone) Automated Disc Duplicator. Xymba is a state-of-the-art, automated, optical disc duplicator, which does not require a PC connection to operate. It is an integrated system with built-in dual optical disc recorders, a hard disk and auto-loaders. - Page 8 Operation Manual, Xymba XB-42 V108 The items listed below should be included in the package: One Xymba XB-42 Automated Disc Duplicator One power cord One operation manual © 2008, Acronova Technology, Inc.
-
Page 9: Getting Familiar With Xymba
V108 Operation Manual, Xymba XB-42 ETTING AMILIAR WITH YMBA Block Diagram Xymba XB-42 is an integrated system with two built-in optical disc drives, and auto-loaders. Depending on the configuration of your purchase, your Xymba may come with one of the... -
Page 10: Rear View
Operation Manual, Xymba XB-42 V108 Important: The Finish Disc Bin must be in position during operation. Removing the Finish Disc Bin will stop Xymba from operating immediately after the current disc being written to has completed. Rear View Power Socket... -
Page 11: Led Indicators
V108 Operation Manual, Xymba XB-42 LED Indicators Xymba’s status is reflected by the LED indicators on the control panel. The table below describes the meanings of the LED indicators. H S F T Description The power switch is in the Off position... -
Page 12: Hardware Installation
Operation Manual, Xymba XB-42 V108 ARDWARE NSTALLATION Finding a Place for Xymba Xymba should be placed on a fairly level surface, firm enough to support the unit and discs. Always allow ample workspace for your operation, with easy access to the blank and finished discs. -
Page 13: Before Getting Started
What You Need to Start a Disc Duplication Session The Xymba XB-42 is a standalone duplicator, which does not require a computer connection. You will need the following to start a... -
Page 14: Write Speed: Production Rate Vs. Duplication Quality
Operation Manual, Xymba XB-42 V108 When another non-blank disc is detected, a new disc image will be written to the built-in hard disk. The previously stored image will be overwritten and the new image will be used for disc duplication. -
Page 15: Reject Disc Output
V108 Operation Manual, Xymba XB-42 To avoid excessive disc failure, Xymba is designed with the following rules when disc failure is encountered: In a normal duplication session with dual recorders in operation, if a recorder continuously fails to write to three discs... -
Page 16: Finish Disc Bin Is Full Or Out-Of-Position
Operation Manual, Xymba XB-42 V108 Finish Disc Bin is Full or Out-of-Position Once the Finish Disc Bin is full, Xymba will immediately pause the duplication session including any disc in the process of unloading. The LED indicator status will show an error. To resume the session, clear the Finish Disc Bin, return it to position and press any key. -
Page 17: Operation Quick Guide
V108 Operation Manual, Xymba XB-42 PERATION UICK UIDE Abort a Running Operation To abort a duplication session, press and hold the Test/Abort button for two seconds. If the recorder is currently writing to disc, Xymba is designed to abort the duplication session after the recorder has completed writing to disc. -
Page 18: Duplication Simulation
Operation Manual, Xymba XB-42 V108 Important: To verify your written data, press the Function Key which will light up its LED and then press the High or Safe-Speed Duplication button to start. Important: The Xymba will save the latest master disc image, for future duplication, on the hard disk until a new master disc has been read. -
Page 19: Erase A Stack Of Rewritable Discs
V108 Operation Manual, Xymba XB-42 Important: Duplication simulation will not work with DVD+R, DVD+RW and DVD+R DL discs. When a DVD+ disc is detected it will be rejected. Erase a Stack of Rewritable Discs This operation erases a stack of rewritable discs for... -
Page 20: Appendix
Operation Manual, Xymba XB-42 V108 PPENDIX Xymba Maintenance Periodically cleaning the device will ensure proper performance. Follow the steps below to maintain Xymba: Turn the power switch to the Off position. Remove the master and blank discs. Unplug the power cord from the wall outlet. -
Page 21: Writing Speed
V108 Operation Manual, Xymba XB-42 Writing Speed Xymba provides High and Safe-Speed Duplication for your convenience. Note that selecting High-Speed Duplication does not mean the recorder will write at a fixed maximum speed. The system will monitor and automatically adjust the writing speed as the optical laser moves from the inner ring to the outer ring, up to the selected speed. -
Page 22: Frequently Asked Questions
Operation Manual, Xymba XB-42 V108 REQUENTLY SKED UESTIONS Why is my duplication failure rate so high? Try a lower writing speed using Safe-Speed Duplication. Use a different brand of blank discs. Check the power source. Why do my discs get stuck in the disc loader during the duplication process? Check to see if the disc is the standard size (120mm). - Page 23 V108 Operation Manual, Xymba XB-42 Xymba is showing an error on the LED display. What should I If Xymba is showing an LED error please remove all the discs in the loader. Be sure to check for any discs that may be stuck inside the unit.
- Page 24 Operation Manual, Xymba XB-42 V108 Acronova Technology, Inc. http://www.acronova.com Version: V108, December, 2008 Part #: 711-XB42-9AC6-3 © 2008, Acronova Technology, Inc.
