Element14 Wireless Connectivity Cape Quick Start Manual

Wireless Connectivity Cape Quick Start Guide
1. Make sure the Gateway/Connectivity Cape has this jumper
configuration:
a. J11, J12, J13, J14, J27, J28, J29, J30, and J31 connected
between pins 1 and 2 (Choosing UART1 for BT)
b. J33 connected between pins 2 and 3
c. Other jumpers should be left open
2. Connect the Gateway/Connectivity Cape to the BeagleBone Black
via the expansion headers on the bottom side of the Cape board.
Make sure the connectors are aligned and the cut out on the Cape
board is over the Ethernet connector.

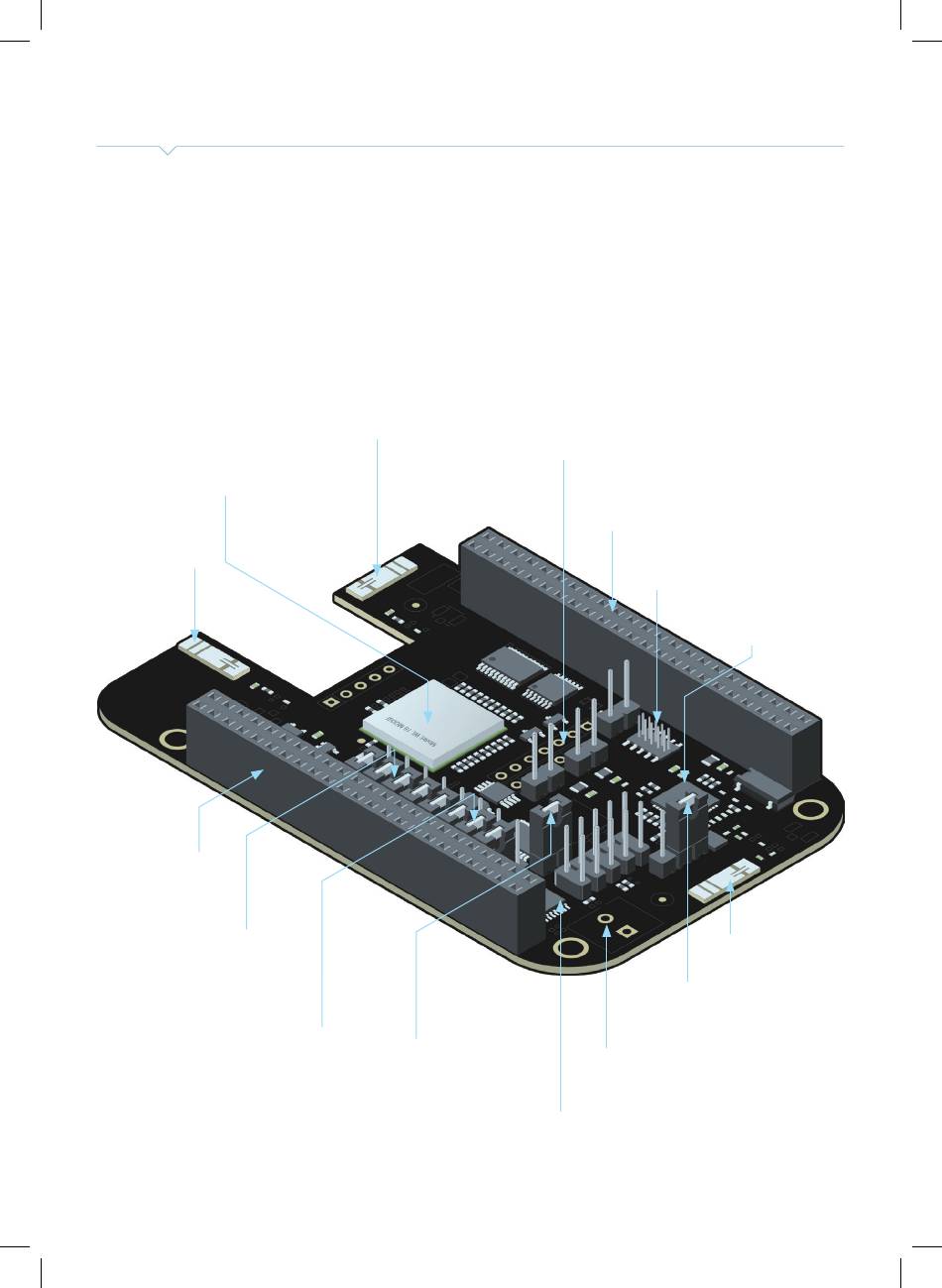

WL1837MOD
Certified 2.4 & 5
GHz Dual Band
Wi-Fi + Bluetooth
with Coexistence
Wi-Fi/Bluetooth
ANT1
Expansion Header
UART1 Bluetooth or Zigbee
Selection Jumpers
BT UART Selection
www.element14.com/wcc
Wi-FI ANT2
Jumper for BeagleBone
Jumpers
Black/White
Compatibility
3. Refer to this URL for instructions on how to program the micro-
SD card and run the demo: https://www.element14.com/wcc
4. Once programmed via an SD card programmer (built in to a PC or
a USB to SD card dongle), insert the micro-SD card into the micro-
SD card socket (P10) on the bottom side of the BeagleBone Black.
5. While holding the S2 button located on the top side of the micro-
SD card socket on the BeagleBone Black, connect 5V to the barrel
power connector (P1).
BT Audio and Test Headers
(DNP)
Expansion Header
Zigbee Debug Header
NFC Antena
Connector Footprint
RF43 NFC
Transponder
CC2530 IEEE 802.15.4,
Zigbee and RF4CE SoC
Zigbee ANT3
Reset Control
