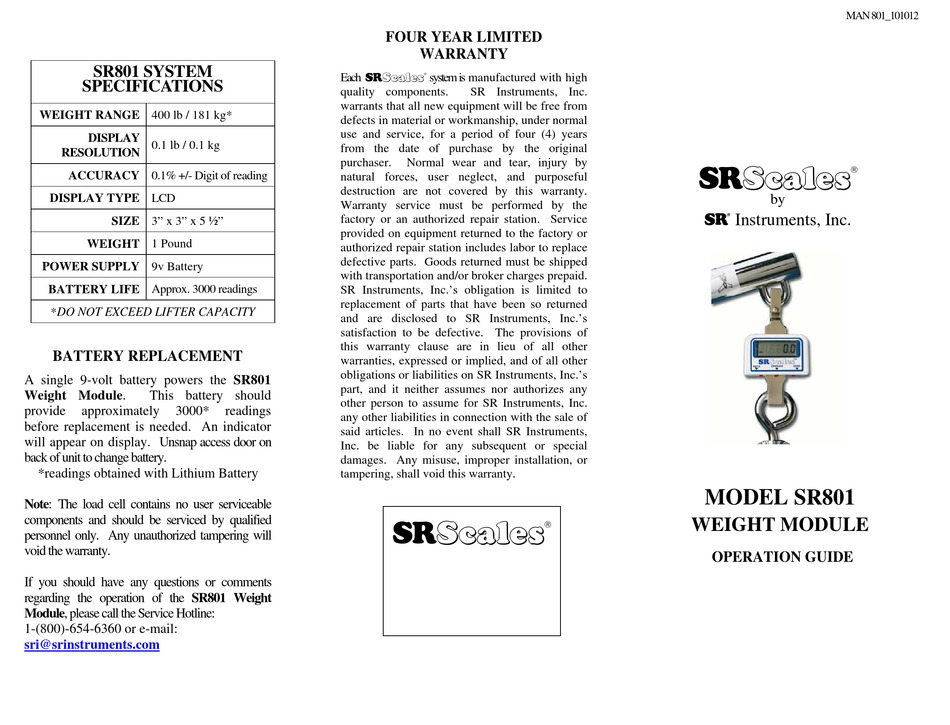

SR Instruments SR Scales SR801 Operation Manual

SR801 SYSTEM

SPECIFICATIONS

WEIGHT RANGE 400 lb / 181 kg*
DISPLAY
0.1 lb / 0.1 kg
RESOLUTION
ACCURACY 0.1% +/- Digit of reading
DISPLAY TYPE LCD
SIZE 3" x 3" x 5 ½"
WEIGHT 1 Pound
POWER SUPPLY 9v Battery
BATTERY LIFE Approx. 3000 readings
*DO NOT EXCEED LIFTER CAPACITY

BATTERY REPLACEMENT

A single 9-volt battery powers the SR801
Weight Module. This battery should
provide approximately 3000*
before replacement is needed. An indicator
will appear on display. Unsnap access door on
back of unit to change battery.
*readings obtained with Lithium Battery
Note: The load cell contains no user serviceable
components and should be serviced by qualified
personnel only. Any unauthorized tampering will
void the warranty.
If you should have any questions or comments
regarding the operation of the SR801 Weight
Module, please call the Service Hotline:
1-(800)-654-6360 or e-mail:
sri@srinstruments.com
FOUR YEAR LIMITED
Each S system is manufactured with high
quality components.
warrants that all new equipment will be free from
defects in material or workmanship, under normal
use and service, for a period of four (4) years
from the date of purchase by the original
purchaser.
natural forces, user neglect, and purposeful
destruction are not covered by this warranty.
Warranty service must be performed by the
factory or an authorized repair station. Service
provided on equipment returned to the factory or
authorized repair station includes labor to replace
defective parts. Goods returned must be shipped
with transportation and/or broker charges prepaid.
SR Instruments, Inc.'s obligation is limited to
replacement of parts that have been so returned
and are disclosed to SR Instruments, Inc.'s
satisfaction to be defective. The provisions of
this warranty clause are in lieu of all other
warranties, expressed or implied, and of all other
obligations or liabilities on SR Instruments, Inc.'s
part, and it neither assumes nor authorizes any
other person to assume for SR Instruments, Inc.
readings
any other liabilities in connection with the sale of
said articles. In no event shall SR Instruments,
Inc. be liable for any subsequent or special
damages. Any misuse, improper installation, or
tampering, shall void this warranty.
S
WARRANTY
SR Instruments, Inc.
Normal wear and tear, injury by
MAN 801_101012
S
by
S Instruments, Inc.
MODEL SR801
WEIGHT MODULE
OPERATION GUIDE
